All stock codes associated to this product

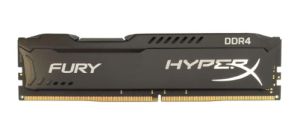

HX426C15FB/8
8GB 1G x 64-Bit
DDR4-2666 CL15 288-Pin DIMM
DESCRIPTIONHyperX HX426C15FB/8 is a 1G x 64-bit (8GB) DDR4-2666 CL15 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-2666 at a low latency timing of 15-17-17 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. The JEDEC standard electrical and mechanical specifications are as follows:
JEDEC/XMP TIMING PARAMETERSJEDEC/PnP: DDR4-2666 CL15-17-17 @1.2V, DDR4-2400 CL14-16-16 @1.2V, DDR4-2133 CL12-14-14 @1.2V, XMP Profile #1: DDR4-2666 CL15-17-17 @1.2V
Features
Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP - 2.5V Typical
VDDSPD = 2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Dual-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
Height 1.340” (34.04mm), w/heatsink
Specifications
CL(IDD): 15 Cycles
Row Cycle Time (tRCmin): 45ns (min.)
Refresh to Active/Refresh, Command Time (tRFCmin): 260ns(min.)
Row Active Time (tRASmin): 26.25ns(min.)
Maxmum Operating Power: TBD W*
UL Rating: 94V - 0
Operating Temperature: 0C to + 85C
Storage Temperature: -55C to +100C
