All stock codes associated to this product
, MBMH170MPROVDH, MBM-H170MPROVDH, 4719072418540
H170M PRO-VDH
-
Supports 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
-
Supports DDR4-2133 Memory
-
DDR4 Boost: Give your DDR4 memory a performance boost
-
SATA Express 16Gb/s + SATA 6Gb/s
-
VGA Armor: Reinforced Armor slot
-
Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font
-
Audio Boost: Reward your ears with studio grade sound quality
-
Military Class 4: Top Quality & Stability
-
Guard-Pro: Improved Protection and Power Efficiency
-
EZ Debug LED: Easiest way to troubleshoot
-
Overvoltage Protection:Prevent Unforeseen Damage
-
4K UHD Support: Ultra-high Definition Visual Experience
-
COM/LPT support (pin header): Perfect for Industrial and Commercial use
-
Intel® SBA Support: Improves Productivity, Management and Security
- WHQL CERTIFIED.WINDOWS 10 READY.
MAKING YOUR LIFE EASIER IS OUR BUSINESS
The PRO Series motherboards fit in any PC.
Quality you can trust with top performance and clever business solutions
are key aspects of these motherboards. Make your life easier and boost
your business with the super stable, reliable and long-lasting PRO
Series motherboards.
Unmatched memory performance and stability
With traditional memory design the memory
signals are often distorted by electromagnetic signals from other
components, making the system perform slower or become unstable. MSI
introduces DDR4 Boost technology with optimized traces and fully
isolated memory circuitry. This design ensures the memory signals stay
pure for optimal performance and stability.

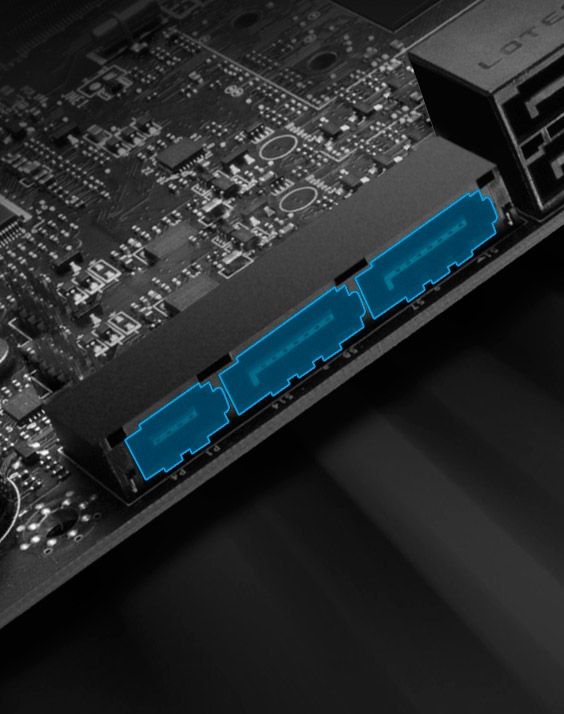

FAST STORAGE WITH SATA EXPRESS
SATA Express offers a solution in high speed
storage through PCI-Express, providing more bandwidth for the latest
generation SSDs up to 16 Gb/s.

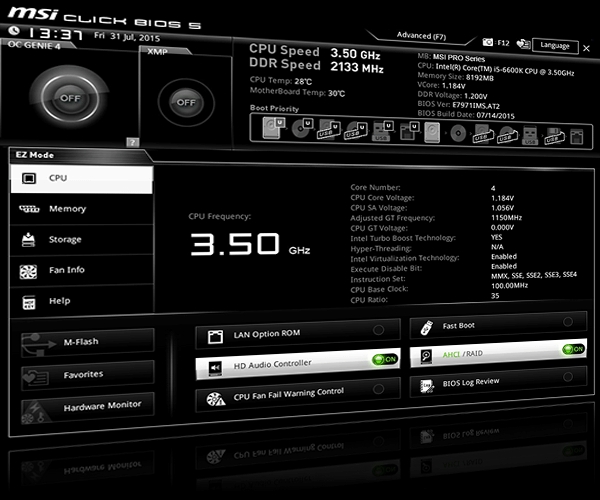

THE ALL NEW, AWARD-WINNING CLICK BIOS 5
Explore the greatly improved, award-winning CLICK BIOS 5 and use it
to tune your system to maximum performance. MSI CLICK BIOS 5 is the
next generation UEFI BIOS with optimizations for Windows 10.
Control your system in two modes: EZ mode, for the most used
settings and functions. Advanced mode for more detailed settings and
fine-tuning options to boost your system’s performance.
-
Variety of options to boost your game performance
-
Next gen UEFI BIOS with award winning design
-
High-resolution multi language scalable font
-
Easy to use
-
Advanced overclocking
OTHERS
Low res, non-scalable
CLICK BIOS 5
Sharp, hi-res, scalable design
STABLE, SECURE NETWORKING
The Gigabit network adapter on MSI Professional motherboards offers fast, reliable and secure networking.

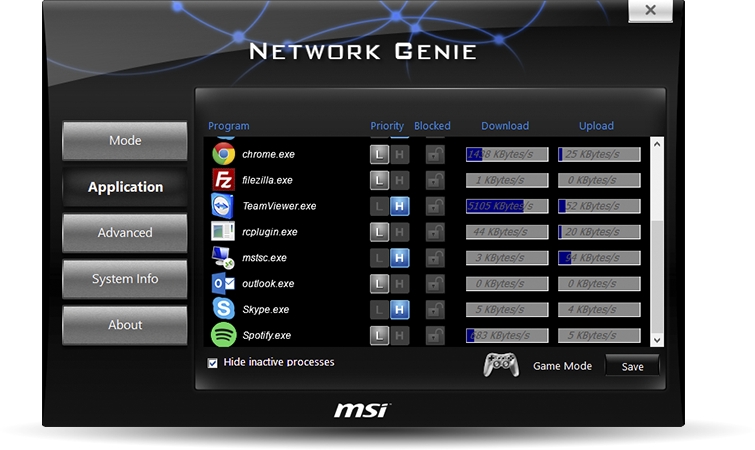

Featuring Network Genie for easy to use bandwidth optimizing
- Allows you to change applications' traffic priority
- Perfect for cloud computing and data syncing

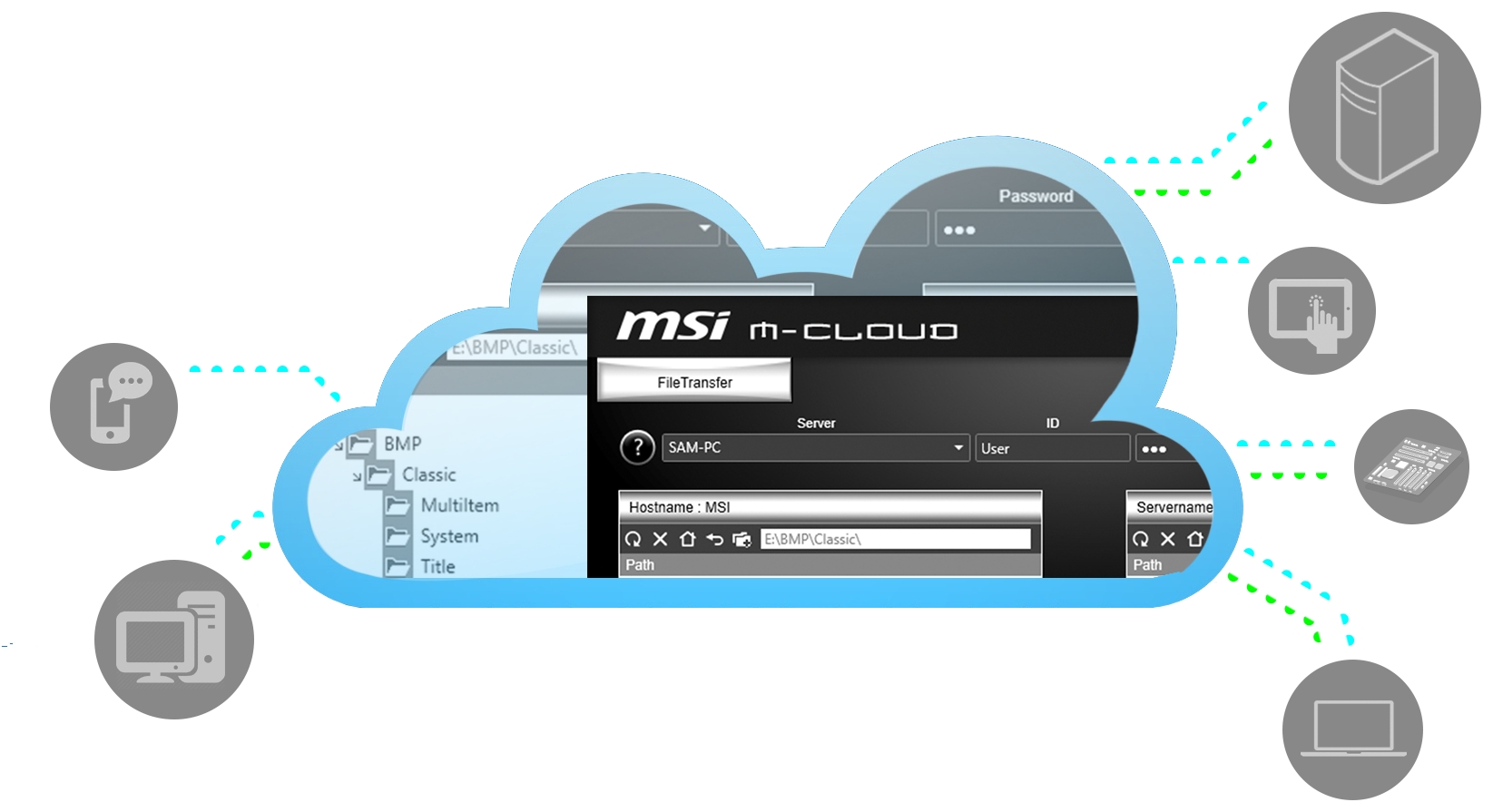

M-CLOUD
MSI M-Cloud is a convenient and secure way of
saving personal files in the cloud. M-Cloud simplifies complicated
settings with a user friendly interface and is easy to learn. Build and
maintain your personal cloud with ease. M-Cloud can also turn your PC
into an Access Point. You can easily share a wireless network or
internet signal to other devices through just a few simple steps.
MILITARY CLASS 4 COMPONENTS
DARK CHOKE
Dark Choke uses the special core design and allows the Dark Choke
to run at a lower temperature with higher capacity and better power
efficiency and stability.
SOLID CAP
With their aluminum core design and Japanese made quality, Solid
CAPs are made for high-end design motherboard. Not only do Solid CAPs
could provide lower Equivalent Series Resistance (ESR), but also work
firmly for over-10-year.
HUMIDITY PROTECTION
Reduction in moisture absorption helps prevent "Conductive Anodic
Filament". Untreated PCB's can have 10x higher failure rate.
HIGH TEMPERATURE
PROTECTION
All key components used in MSI motherboards have all passed
military testing ensuring stable operation in the harshest environments.
CIRCUIT PROTECTION
Carefully selected materials, multiple PCB layers and shielding
result in the best circuit protection for MSI motherboards.
ESD PROTECTION
Each and every I/O port is protected against the hazards of Electro Static Discharge.
EMI PROTECTION
All MSI motherboards comply with strict American FCC regulations and reduce the impact of Electromagnetic Interference.
EASY DIAGNOSTIC
MSI EZ Debug LED is an easy
troubleshooting tool using 3 LEDs to indicate CPU / Memory / VGA
operation every time you boot up your system. Run into trouble? Use the
LEDs to easily identify the source of your problem and get back into
operation quickly.
ENHANCED CPU OVERVOLTAGE PROTECTION
Onboard overvoltage protection prevents
overvoltage and short-circuit damage of the CPU and other components. A
red LED near the 24 pin CPU power connector let you know that
overvoltage protection is activated for easier troubleshooting.

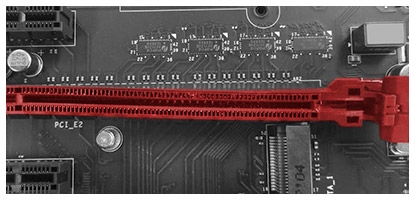

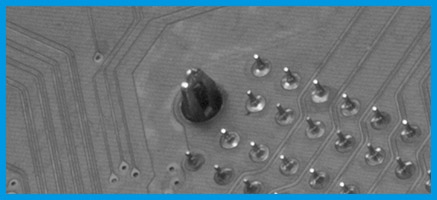

VGA ARMOR: REINFORCED PCI EXPRESS SLOT
With the increased size and weight of modern high end graphics
cards, traditional PCI Express slots often show signs of bending or even
breaking. Meet VGA Armor, strengthened PCI Express slots using more
solder points to make sure you never have to worry about breaking off
any of the slots.

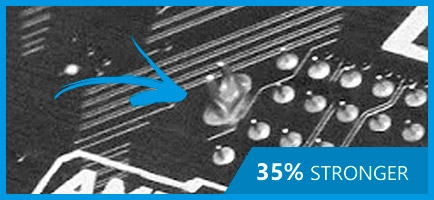

PREVENT DAMAGE
NO STRENGHTENING
OTHER BRANDS
NO STRENGHTENING
MSI® VGA ARMOR
REINFORCED, HEAVY SOLDERED CONNECTIONS
TOTAL
FAN CONTROL
Total Fan Control gives you
complete control of all your fans connected to the motherboard, through a
revolutionary and easy to use interface.
- Full control of fans through 4-pin fan headers
- Real-time monitor fan speeds & temperatures
- Intuitive, easy to use application design
- Set profiles
- Log fan speed, voltage and temperature status
BENEFIT FROM THE NEW
INTEL® SMALL BUSINESS ADVANTAGE
SOLUTION with MSI ® MOTHERBOARDS
Intel® SBA is a unique, customizable solution that
helps improve small businesses data security, maximizes employee
productivity and boosts overall office computers’ performance.
A simple and intuitive interface offering
hardware-based security and improves productivity – With software
monitoring, health center, data backup and restore, USB blocker, screen
sharing, file sharing, and chatting.
CONNECT
Remote file access
Remote desktop
HEALTH
Health Center
After-hours maintenance
SECURITY
Software Monitor
Data Backup & Restore
USB Blocker
SHARE
File Sharing
Screen Sharing
Chat
Click on video above to learn about Intel® SBA

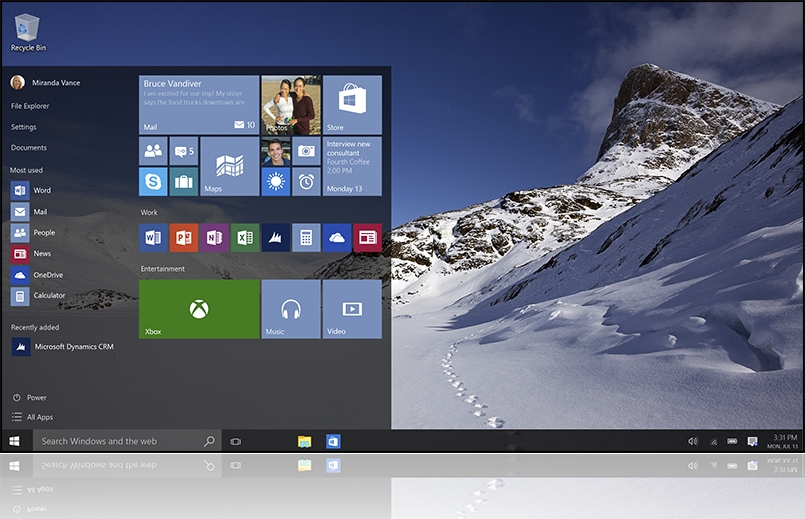

WHQL CERTIFIED. WINDOWS 10 READY.
Benefit from great compatibility and a worry-free
user experience when using Microsoft Windows 8 / 8.1 or Windows 10 with
MSI PRO Series motherboards.
MSI is world’s first motherboard manufacturer to
receive official Microsoft Windows 10 WHQL certification. With a true
testament to compatibility and performance, the MSI R&D team ensures
a worry-free experience when using the latest version of Microsoft
Windows on any MSI PRO Series motherboard.
- 100% Compatibility
- 100% Performance
- 100% Trusted & Certified
Studio grade sound with AUDIO BOOST
With Audio Boost we're delivering the
highest sound quality through the use of premium quality audio
components. That way, you can enjoy breathtaking, crystal clear sound
and music through 6-channel Audio or high impendence headphones and
truly dominate the game.
Isolated Audio PCB
Audio Boost acts like a dedicated soundcard by physically isolating the audio circuitry to give you a more clear audio signal.
Chemi-Con Audio Capacitors
Delivering high fidelity crystal clear sound with exceptional acoustics and realism.
Separated Audio Layers
Equal and perfect sound quality for left & right channel audio through the use of seperated layers in the PCB.
Anti-popcorn Noise
Audio Boost protects your ears against annoying loud popping sounds when you plug devices in or out or turn your PC on/off.
5.1 Audio Jacks
7.1 via front
With high quality audio connectors you get the best possible signal output with less chance of distortion.
Front Dedicated Headphone Out
Convenient use of the front panel audio output while retaining high quality amplified sound.
2X FRONT USB 3.1 GEN1
With a clever placed
USB 3.1 Gen1 front pin header, available on MSI motherboards, you can
connect up to 2 USB 3.1 Gen1 devices directly to the front of your PC
Chassis. This way you can easily enjoy fast USB speeds without having to
use the hard-to-reach USB ports on the rear.
PERFECT FOR INDUSTRIAL
AND COMMERCIAL USE
Thanks to its flexibility in connectivity through the availability
of a COM and LPT port, this MSI motherboard is suitable for an endless
variety of applications in your business or in commercial markets.
The COM/LPT port found on this MSI motherboard ensures high
compatibility through support of a wide variety of legacy devices.
COM
LPT
LEGACY DVI / VGA VIDEO SUPPORT
To support professional monitors, TV's, beamers and other displays,
this MSI motherboard features DVI and a VGA video output. No matter
what screen type you want to connect, using a dedicated graphics card or
an onboard connector, MSI motherboards have you covered.
DVI-D
VGA-OUT
4K UHD
Enjoy awesome 4K UHD (2160p ultra-high definition) video playback with MSI motherboards.
HDMI
This motherboard is
equipped with a HDMI port supporting the latest 4K Ultra-HD 4096×2160p
resolution @ 30Hz to provide a breathtaking visual experience.

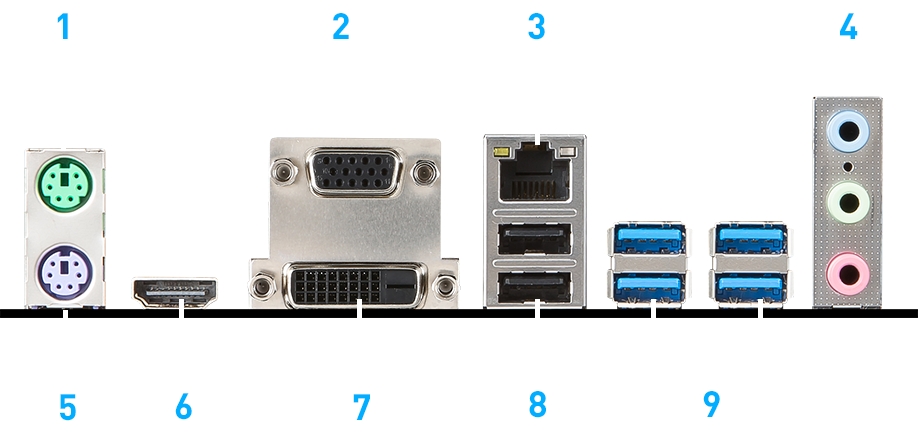

Connectivity
Be sure to take full advantage by connecting your devices to the optimized ports.
- Mouse
- VGA port
- LAN port
- Audio connectors
- Keyboard
- HDMI port
- DVI port
- USB 2.0 ports
- USB 3.1 Gen1 ports
