All stock codes associated to this product
43SM5KB, 3050076

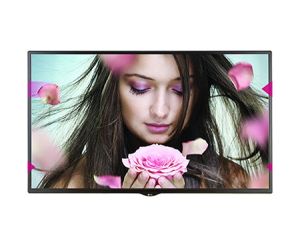

IPS Panel with Full HD (1920 x 1080)
webOS Platform
Built-in Wi-Fi / OPS Compatibility
Quad Core SoC
Enhanced Failover
Self Diagnostic
Key Features
Specifications:
Panel
Screen Size: 43" (108cm)
Panel Technology: IPS
Aspect Ratio: 16:9
Native Resolution: 1920 x 1080 (Full HD)
Brightness: 450cd/m²
Contrast Ratio: 1,300 : 1 (Native)
Dynamic CR: 4,000,000:1
Operating Hours: 24 Hrs
Viewing Angle (H x V): H:178°, V:178°
Orientation: Portrait and Landscape
Surface Treatment: Hard coating(3H), Anti-glare treatment (Haze 1% Typ.)
Connectivity Input (REAR)
Digital: HDMI(1, Support HDCP 2.2), DP(1), DVI-D(1)
Analog: RGB (1)
Audio: RGB/DVI (1), Speaker (10W x 2)
External Control: RS232C (1), RJ45 (1), IR (1), Pixel Sensor (1)
USB: Yes (1, USB3.0)
SD Card: Yes (1, SDHC/Full Size)
Wi-Fi/Bluetooth: Dual Band (802.11n) / (802.15.1)
Connectivity Output (Rear)
Digital: DP Out (1)
Analog: Yes (1)
External Control: RS232C (1)
Physical Specification
Bezel Width: 11.9mm(T/R/L), 18mm(B)
Monitor Dimension(W x H x D): 970mm x 564mm x 54mm
Dimension with optional stand (W x H x D): 970mm x 622mm x 193mm
Carton Dimensions(W × H × D): 1052mm x 650mm x 123mm
Weight (head): 10.0kg
Weight(head+stand): 12.3kg
Packed Weight: 12.6kg
VESAâ„¢
Standard Mount Interface: 200mm x 200mm
Special Features
Additional: Time, Tile Mode, Colour Settings, Languages, Internal Memory(4GB), DPM Select, File Play with USB, USB Cloning, Input Label, Smart Energy Saving, Built -in Speakers, SD Card Slot, Sync Mode
Environment Conditions
Operation Temperature: 0°C to 40°C
Operation Humidity: 10% to 80%
Power
Power Supply: 100-240V~, 50/60Hz
DPM: 0.7W
Typical / Smart Energy Saving On: 80W/50W
Power Off: 0.5W
Power Type: Built In Power
Standard (Certification)
Safety: UL/cUL/CB/TU/KC
EMC: FCC Class "B" / CE / KCC / C-Tick
ErP/US EPA: Yes / Yes (Energy Star 6.0)
Software Compatibility
SuperSign-c: Yes
SuperSign-w lite: Yes
Accessory
Included: Remote Controller (including 2ea battery), Power Cable, QSG, RGB Cable, Regulation Book, Phono to RSC232C Gender, Memory Cover
Optional: Stand(ST-652T), Media Player, OPS Kit(KT-OPSA), Wall bracket (LSW230B), Pixel Sensor(KT-SP0), VESA Adapter(AM-B220S), HDBaseT(EB-B100)
Warranty: 3 years parts and labour
