Integra M 750W

Information

Fractal Design Integra M Series power supply units feature excellent electrical performance, including 80PLUS® Bronze certified efficiency.
The modular flat cable system allows for a clean installation, and enhances airflow patterns inside the case. The short 140mm length makes for easy installation in small computer cases, and the extra-long ATX12V cable accommodates modern, bottom-PSU cases.
Fractal Design Integra M units are equipped with a large temperature-controlled 120mm fan for reduced noise levels and optimum cooling.
The Integra M is a great choice for medium-performance gaming computers and workstations.

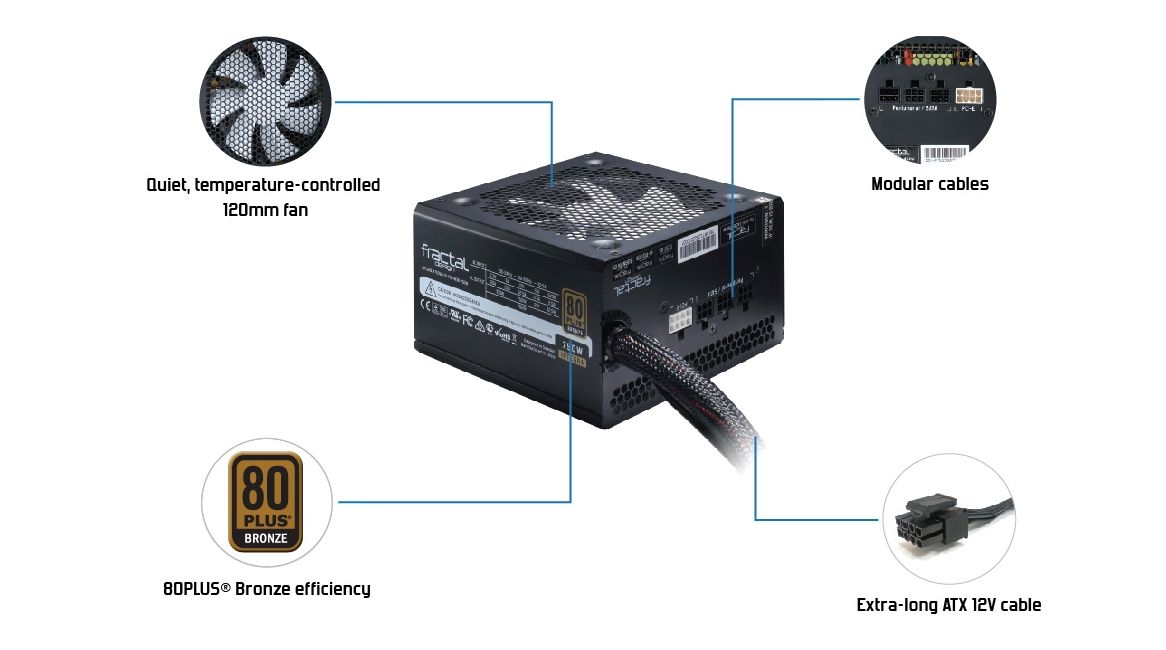

Key features

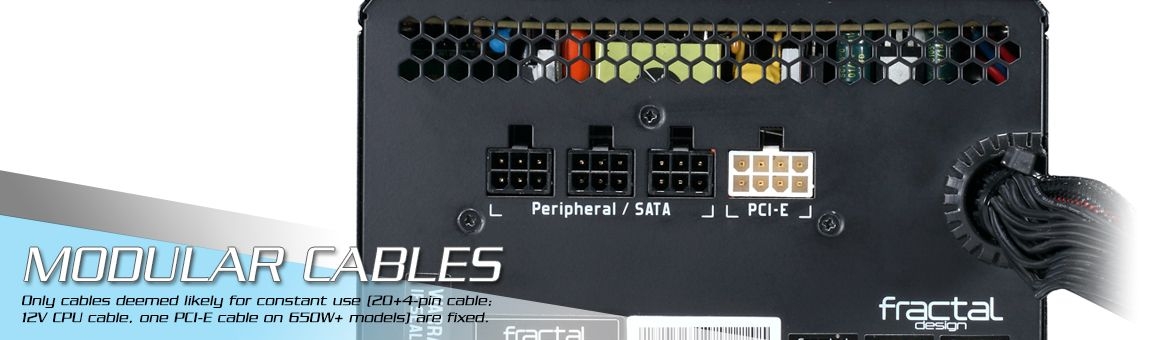

• Modular cables. Only cables deemed likely for constant use (20+4-pin cable; 12V CPU cable, one PCI-E cable on 650W+ models) are fixed.
• 80PLUS Bronze efficiency
• Extremely short 140mm case allows for easy installation in compact cases
• Extra-long ATX 12V cable
• Quiet, temperature-controlled 120mm fan





80 PLUS® Bronze certified efficiency

Integra M PSUs meet the 80 PLUS® Bronze specification for providing power with an efficiency that is typical of PSUs with much higher price points. Additionally, because Integra M PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels.

Excellent Electrical Performance

Fractal Design Integra M Series PSUs feature excellent DC voltage regulation and ripple suppression: they can deliver their full-rated wattage continuously even with an intake temperature as high as 40°C full load or 50°C at 80% load.

Compliant with the latest standards

Integra M PSUs are compliant with the latest PC PSU standard: ATX 2.4 / EPS 2.92

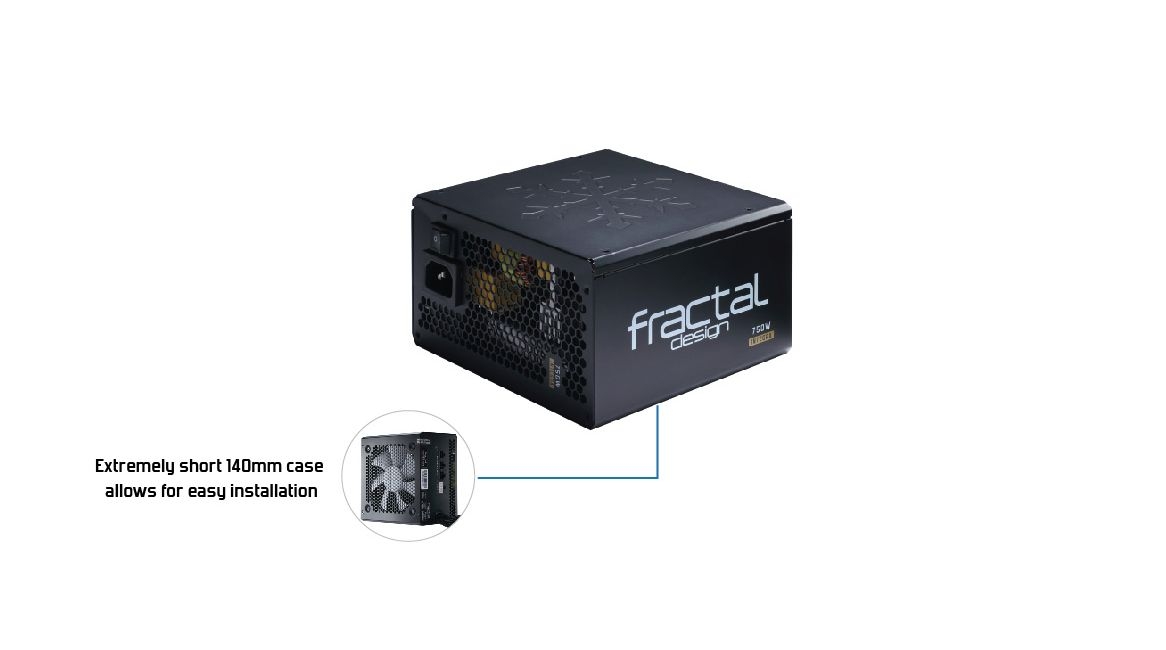

Extremely short 140 mm case

Integra M PSUs are only 140mm long, which accommodates the smallest ATX-compatible computer cases on the market.

Silent, temperature-controlled 120mm fan

Generally, larger fans move more air with less noise than smaller fans: Integra M Series PSUs are equipped with a 120mm fan Sleeve Bearing, which keeps noise level down.

Extra-long ATX12V cable

Integra M PSUs are equipped with an extra long 12V ("P4") connector cable, which accommodates bottom-mounted-PSU computer cases.

Computer protection

 Integra M PSUs feature an impressive suit of computer protection, including: Over Power Protection, Over Voltage Protection, Under Voltage Protection and Short Circuit Protection.





General specifications

80PLUS® Certification	Bronze
Modular cables	Yes
Modular cable type	All-black flat cables
Fan type	120mm Sleeve bearing Temperature controlled
Maximum operating temperature at full load	40°C 50°C at 80% load
Supports Intel Haswell C6/C7 sleep states	Yes
Warranty	3 years
Capacitors	Taiwanese
Protections	OPP / OVP / UVP / SCP
Life expectancy (MTBF)	100,000 hours
PSU specification compliance	ATX 2.4 / EPS 2.92
Standby efficiency	ErP 2013 compliant (<0.5W system power draw)
Colors Available	Black
Unit Measurements	150*86*140
Unit weights, with modular cables	450: 1.435 550: 1.49 650: 1.63 750: 1.69 kg
Package dimensions - W x H x D (mm)	285*202*115
Package weight – (Kg)	450: 1.63 550: 1.7 650: 1.85 750: 1.91 kg

Cable configuration

Fixed Cables (length in mm, + designates a second connector on the same cable)

Model	450W	550W	650W	750W
ATX 20+4 pin	510	510	510	510
ATX12V 4+4 pin	700	700	700	700
PCI-E 6+2 pin	-	-	500+100	500+100

Modular cables (length in mm, + designates a second connector on the same cable)

Model	450W	550W	650W	750W
PCI-E 6+2 pin	520	520+100	520+100	520+100
Peripheral	400+120	400+120	400+120	400+120
SATA	400+120+120 650+120	400+120+120 650+120	400+120+120 650+120+120	400+120+120+120 650+120+120

DC Output

Model	450W	550W	650W	750W
3.3V	20A	20A	20A	20A
5V	15A	20A	20A	20A
3.3V and 5.V combined	80W	100W	100W	100W
12V1	37A	45.5 A	54A	62.5 A
-12V	0.5 A	0.5 A	0.5 A	0.5 A
5V Standby (+5Vsb)	2.5 A	2.5 A	2.5 A	2.5 A
Total Power	450W	550W	650W	750W

Package contents

• Integra M Power Supply
• Modular cable kit
• AC power cord (localized)
• Zip ties and PSU screws
• User manual

Additional information

• EAN: 7350041082422
• UPC: 817301012423
• Product code: FD-PSU-IN3B-750W
• Masterbox quantity: 4pcs
