All stock codes associated to this product
326M5001100, LT20215, 4710918138011

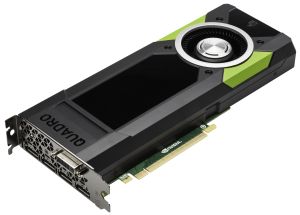

The NVIDIA Quadro M5000, accelerated by NVIDIA?s Maxwell GPU architecture, delivers incredible performance within just 150W to let you unleash your creativity and conquer extreme workloads with ease. 8 GB of GDDR5 GPU memory with fast bandwidth allows you to create and render large, complex models and compute massive datasets with ECC support for added reliability. Plus, there?s a new display engine that drives up to four 4K resolution displays natively for ultra-high resolutions like 4096x2160 @ 60 Hz with 30-bit color. Pair up two or more outputs to drive displays greater than 4K, and take advantage of NVIDIA Quadro Sync support to frame-lock multiple displays together.
- NVIDIA® CUDA® Architecture
- NVIDIA® GPUDirect Support
- PCI Express 3.0 Compliance
- DisplayPort 1.2 Support (with Audio)
- Quadro Sync
- Professional 3D Stereo Synchronization
Specifications:
| Model | Retail |
| Edition | Standard |
| Platform | Performance |
| Classification | Workstation |
| GPU Processor Cores (#) | 2048 |
| GPU Physics Support | Not Supported |
| Memory Size (MB) | 8192 |
| Memory Type | DDR5 |
| Memory Interface (Bit) | 256 |
| Memory Bandwidth (GB/sec) | 211 |
| Max Active Displays (#) | 4 |
| Display Configuration | NVIDIA Quadro Driver |
| DVI Outputs (#) | 1 |
| DVI Type | 1 x DVI-D Dual Link (Max Res: 2560x1600) |
| HDMI Outputs (#) | 0 |
| Display Port Outputs (#) | 4 |
| Display Port Type | 2 x DP Type A v1.2 (Max Res: 4096x2160) |
| VGA Outputs (#) | 0 |
| Inputs | None |
| 3D Video Support | Yes, NVIDIA 3D Vision/Vision Pro. Optional Stereo Support |
| HDMI Audio | Not Supported |
| Form Factor | ATX |
| Interface | PCI Express 3.0 X16 |
| Cooler Type | Fan (Blower) |
| Cooler Fans (#) | 1 |
| Cooler Heatpipes (#) | 0 |
| Unit Dimensions (L x H x D mm) | 267.0 x 111.8 |
| Max Power Consumption (Watts) | 150 |
| Supplementary Power Connectors | One 6-pin PCI-E |
| Compatibility | Visit www.nvidia.com |
| DirectX Version | 12.0 |
| OpenGL Version | 4.5 |
| Software | None |
| Other Features | CUDA, Direct Compute, NVIEW, Mosaic, Audio (via DP) |
| Package Contents | DVI to VGA (1), DP to DVI SL (2), 6-pin PCI-E (1) |
| Packaging | Retail |
| Warranty | 3 YEARS |
