Gigabyte GA-H110M-S2H Motherboard

Overview

• Supports 6^th Generation Intel Core Processor
• Dual Channel DDR4, 2 DIMMs
• 8-channel HD Audio with High Quality Audio Capacitors
• Audio Noise Guard with LED Trace Path Lighting
• HDMI 1.4, DVI-D, D-sub ports for multiple display
• Realtek GbE LAN with cFosSpeed Internet Accelerator Software
• All new GIGABYTE APP Center, simple and easy use
• Support Intel Small Business Basics

GIGABYTE Ultra Durable Motherboards

GIGABYTE 100 series motherboards support the latest 6th Generation Intel Core processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.

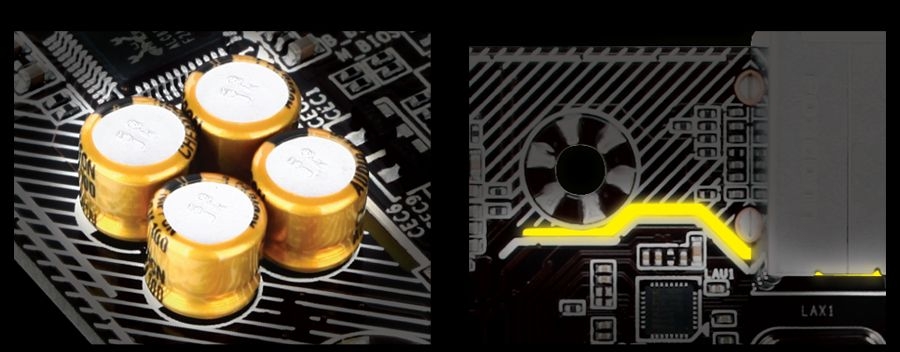

High Quality Onboard Audio Design

Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional users.

 CPU

1. Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
2. L3 cache varies with CPU

1. Intel H110 Express Chipset

1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR4 2133 MHz memory modules
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

1. Integrated Graphics Processor - Intel HD Graphics support:
   1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
   1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
   * The DVI-D port does not support D-Sub connection by adapter.
   1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
   * Support for HDMI 1.4 version.
2. Support for up to 2 displays at the same time
3. Maximum shared memory of 512 MB

1. Realtek ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out

1. Realtek GbE LAN chip (10/100/1000 Mbit)

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2. 2 x PCI Express x1 slots
   (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

1. 4 x SATA 6Gb/s connectors

1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 1 x S/PDIF Out header
9. 1 x USB 3.0/2.0 header
10. 2 x USB 2.0/1.1 headers
11. 1 x Trusted Platform Module (TPM) header
12. 1 x serial port header
13. 1 x Clear CMOS jumper

1. 1 x PS/2 mouse port
2. 1 x PS/2 Keyboard port
3. 1 x D-Sub port
4. 1 x DVI-D port
5. 1 x HDMI port
6. 2 x USB 3.0/2.0 ports
7. 4 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 3 x audio jacks (Line In, Line Out, Mic In)

1. iTE I/O Controller Chip

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
   3D OSD
   @BIOS
   AutoGreen
   Cloud Station
   EasyTune
   Easy RAID
   Fast Boot
   Smart TimeLock
   Smart Keyboard
   Smart Backup
   System Information Viewer
   USB Blocker

2. Support for Q-Flash
3. Support for Smart Switch
4. Support for Xpress Install

1. Norton Internet Security (OEM version)
2. cFosSpeed

1. Support for Windows 10/8.1 64-bit
2. Support for Windows 7 32-bit/64-bit
   * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

1. Micro ATX Form Factor; 22.6cm x 17.4cm

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website
