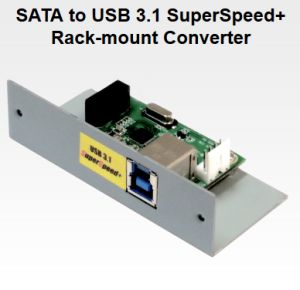

Addonics ADSAU31R SATA To USB 3.1 SuperSpeed+ Rack-mount Converter

Overview

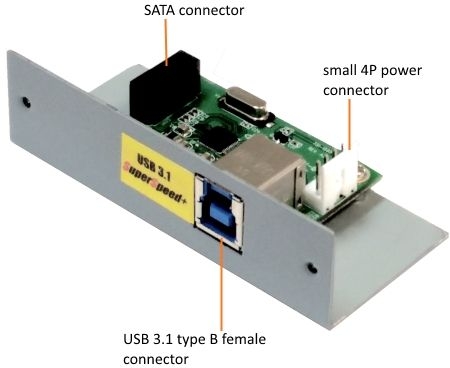

This rack-mount SATA to USB 3.1 Converter is a perfect solution for turning any SATA device into the latest SuperSpeed+ USB 3.1 storage. When connecting to a USB 3.1 port, this converter can deliver a maximum data throughput up to 10 Gbps, doubling the speed of USB 3.0 and 20 times the speed of USB 2.0. Backward compatible to all previous USB standards, any SATA hard drives, SSD (Solid State Drive), and even optical drives can now be easily converted into USB 3.1 storage. Comes mounted on a SCIS-I bracket, this small converter can be easily mounted onto any storage enclosure with standard SCSI-1 (Centronic 50 ) cut out or standard Desktop computer chassis by using an optional PCI mounting bracket.

There is also choice of model with WRITE-PROTECT function. It is great way to ensure absolute protection on any hard drive or SSD against virus contamination or data tampering. It is a great tool for sharing drives containing important data among different users or for forensic application.

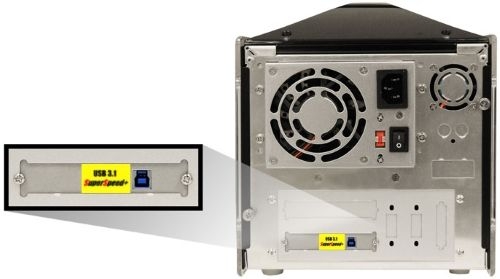

Below is an illustration of the installation of this converter onto an Addoncis storage tower or similar that has a SCSI- I cut out

Converter mounted inside Addonics Storage Tower IV

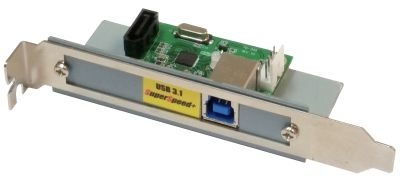

 The SATA - USB 3.1 Rack-Mount converter can also be mounted onto a PCI slot opening using the optional PCI bracket (PCISCBKT)

Standard version, model: ADSAU31R

• Convert any type of SATA device including hard drives, SSD, and optical drives into the latest Superspeed+ USB 3.1 interface
• Superspeed+ USB 3.1 Type B connector
• Come with mounting bracket to install into enclosures with SCSI-1 (Centronic 50) cut out
• Optional PCI mounting bracket (PCISCBKT) for installing onto standard Desktop PC chassis
• Compatible with SATA I, SATA II, and SATA III devices
• Maximum data transfer 6 Gbps
• Supports USB 3.1 (10 Gbps), USB 3.0 (5 Gbps), USB 2.0 (480 Mbps), USB 1.0 (12 Mbps), and LowSpeed (1.5 Mbps) transaction
• Choice of model with standard 512-byte sector format, 4K-sector* format or with WRITE-PROTECT function
• LED pins for drive activity signal
• Compatible OS: All versions of Windows starting with Windows XP and newer release, Mac OS X and newer, Linux with kernel 2.4 or newer and any OS with built-in mass storage driver

WRITE PROTECT version, model: ADSAU31R-WP

All features are identical as the standard version except the WRITE  function is disabled. This unique feature ensures absolute protection on any hard drive or SSD against virus contamination or data tampering. It is a great tool for sharing drives containing important data among different users or for forensic application. Drives connecting to this bridge appears as a READ only media, similar to CD or DVD disc.

• Same features as the standard version except READ only
• Protect drive against virus contamination or data tempering
• WRITE disabled at hardware level. No software hacking to circumvent the WRITE PROTECT function
• No volatile memory
• Drive appears to OS as READ only device. Options to format, delete and others that alter the content or structure of the drive are all disabled by the OS

Note: connecting this SATA - USB 3.1 converter to USB 3.0 port will limit the maximum performance to USB 3.0 speed

Due to the high performance of the USB 3.1 interface, some generic USB 3.0 cables that we tested has resulted in performance degradation and unstable connectivity. To ensure reliable performance, be sure to use a high quality or a certified USB 3.1 cable, similar to the Addonics USB 3.1/3.0 cable (AAU3AB6F).

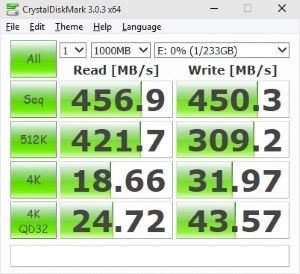

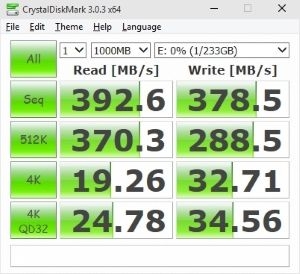

 Performance measurement comparison between USB 3.1 and USB 3.0 SSD

The above CrystalDiskMark results were measured based on the following set up:

• Desktop system equipped with Addonics USB 3.1 PCIe 2-Lane controller (AD2U31PX2) and Windows 7 64-bit
• Samsung 256G EVO mSATA SSD with rated READ and WRITE speed around 550 MB/sec
• SATA - USB 3.1 Rack Mounted converter (ADSAU3R1)
• SATA -USB 3.0 Rack Mounted converter (ADSAU3RM)

Specifications
