All stock codes associated to this product
AFCFAS3W16GM, AFCFAS3W16G-M

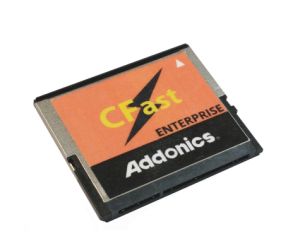

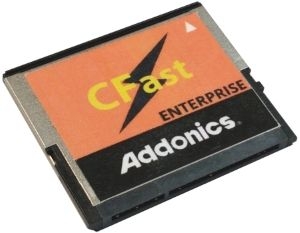

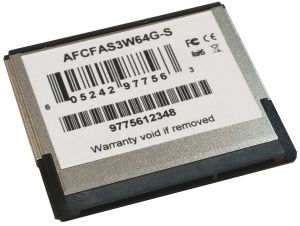

Enterprise CFast MLC SSD
AFCFAS3W16G-MOverview
Addonics' new CFast SSD, redefines the high-speed storage standard.
The CFast flash memory with SATA interface features improved write/read
performance over traditional Compact Flash flash memory.
Addonics' Enterprise class CFast SSD is designed to work in a much
wider temperature environment, making it suitable for factory or
application in non-temperature controlled operation condition. This
Enterprise class of CFast SSD uses MLC flash memory and is thus more
cost-effective than the Addonics industrial grade CFast SSD that is made
of SLC flash. Designed with the latest SATA 3.0 interface, the
Enterprise CFast can deliver data speed over 320 MB/sec and is more than
3 times faster than the fastest Compact Flash (CF) card in the market.
The Addonics CFast SSD is also available in SLC flash to boost the
durability of the card to over 7 times that of a typical commercial
grade MLC flash. For detail information on the in industrial grade SLC
type of CFast card, please visit the following product CFast SLCproduct web page.
Features
- Enterprise class CFast MLC SSD
- Great for the following applications: Industrial Embedded Systems,
Medical Solutions, Point-of-Sales, Gaming Industry, Automation
Solutions, and others
- Choice of 16G - 64GB capacities
- SATA III 3.0Gbps interface
- MLC flash type
- Data transfer rate
- Read Seq. up to 320MB/s
- Write Seq. up to 165MB/s
- Industrial operating temperature: -40°C to +85°C
- Size of CF-1
- TeraBytes Written (TBW): 635 TBW for 256GB
| Model |
Capacity |
NAND type |
Price |
Max. Read speed |
Max. Write speed |
Operating temp. |
| AFCFAS3W16G-M |
16GB |
MLC |
$45.00 |
320 MB/sec |
165 MB/sec |
-40°C to +85°C |
| AFCFAS3W32G-M |
32GB |
MLC |
$65.00 |
320 MB/sec |
165 MB/sec |
-40°C to +85°C |
| AFCFAS3W64G-M |
64GB |
MLC |
$107.00 |
320 MB/sec |
165 MB/sec |
-40°C to +85°C |
Specifications
- Flash type: MLC
- Compliant with SATA Revision 3.0
- Advanced Flash management
- Static and Dynamic Wear Leveling
- Bad Block Management
- TRIM
- SMART
- Over-Provision
- Power Fail Protection
- Voltage: 3.3 V +/- 5%
- Power consumption:
- Active mode: < 1600mW
- Idle mode: < 300mW
- DEVSLP mode: < 5mW
- Dimension (LxWxH): 36.4mm x 42.8mm x 3.3mm
- TeraBytes Written (TBW): 635 TBW for 256GB
- ECC scheme: Up to 72 bits / 1K Byte
- UART function
- GPIO
- Operating shock rating: 1,500G
- Vibration: 20G
- MTBF: > 2,000,000 hours
- Humidity: RH 95% under 55°C (operational)
- Complies with Compact flash Association specification standards
- Operating Temperature:-40°C to +85°C
- Storage Temperature: -40°C to + 85°C
- Warranty: 3 year
- Compliant: RoHS, CE/FCC
