ADSAU31R-WP
Overview
This rack-mount SATA to USB 3.1 Converter is a perfect
solution for turning any SATA device into the latest SuperSpeed+ USB 3.1
storage. When connecting to a USB 3.1 port,
this converter can deliver a maximum data throughput up to 10 Gbps,
doubling the speed of USB 3.0 and 20 times the speed of USB 2.0.
Backward compatible to all previous USB standards, any SATA hard drives,
SSD (Solid State Drive), and even optical drives can now be easily
converted into USB 3.1 storage. Comes mounted on a SCIS-I bracket, this
small converter can be easily mounted onto any storage enclosure with
standard SCSI-1 (Centronic 50 ) cut out or standard Desktop computer
chassis by using an optional PCI mounting bracket.
There is also choice of model with WRITE-PROTECT function. It is great way to ensure absolute protection on any hard drive or SSD against virus contamination or data tampering. It is a great tool for sharing drives containing important data among different users or for forensic application.
Below is an illustration of the installation of this converter onto an Addoncis storage tower or similar that has a SCSI- I cut out
Converter mounted inside Addonics Storage Tower IV

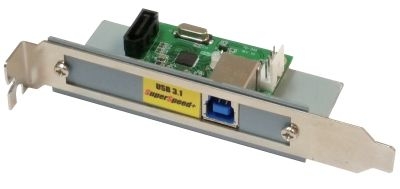

The SATA - USB 3.1 Rack-Mount converter can also be mounted onto a PCI slot opening using the optional PCI bracket (PCISCBKT)
Standard version, model: ADSAU31R
- Convert any type of SATA device including hard drives, SSD, and optical drives into the latest Superspeed+ USB 3.1 interface
- Superspeed+ USB 3.1 Type B connector
- Come with mounting bracket to install into enclosures with SCSI-1 (Centronic 50) cut out
- Optional PCI mounting bracket (PCISCBKT) for installing onto standard Desktop PC chassis
- Compatible with SATA I, SATA II, and SATA III devices
- Maximum data transfer 6 Gbps
- Supports USB 3.1 (10 Gbps), USB 3.0 (5 Gbps), USB 2.0 (480 Mbps), USB 1.0 (12 Mbps), and LowSpeed (1.5 Mbps) transaction
- Choice of model with standard 512-byte sector format, 4K-sector* format or with WRITE-PROTECT function
- LED pins for drive activity signal
- Compatible OS: All versions of Windows starting with
Windows XP and newer release, Mac OS X and newer, Linux with kernel 2.4
or newer and any OS with built-in mass storage driver
*4K-sector formatting allows older OS such as
Windows XP to use hard drive larger than 2 TB using MBR partition. This
may cause incompatibility issue with other equipment that does not
support 4K-sector formatted drive such as Addonics NAS adapter and NAS
solution

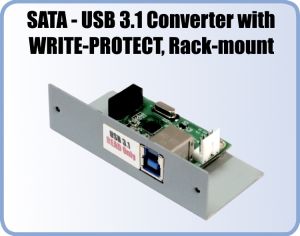

WRITE PROTECT version, model: ADSAU31R-WP
All features are identical as the standard version
except the WRITE function is disabled. This unique feature ensures
absolute protection on any hard drive or SSD against virus contamination
or data tampering. It is a great tool for sharing drives containing
important data among different users or for forensic application. Drives
connecting to this bridge appears as a READ only media, similar to CD
or DVD disc.
- Same features as the standard version except READ only
- Protect drive against virus contamination or data tempering
- WRITE disabled at hardware level. No software hacking to circumvent the WRITE PROTECT function
- No volatile memory
- Drive appears to OS as READ only device. Options to
format, delete and others that alter the content or structure of the
drive are all disabled by the OS
Note: connecting this SATA - USB 3.1 converter to USB 3.0 port will limit the maximum performance to USB 3.0 speed
Due to the high performance of the USB 3.1 interface,
some generic USB 3.0 cables that we tested has resulted in performance
degradation and unstable connectivity. To ensure
reliable performance, be sure to use a high quality or a certified USB
3.1 cable, similar to the Addonics USB 3.1/3.0 cable (AAU3AB6F).

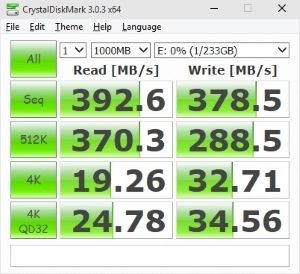

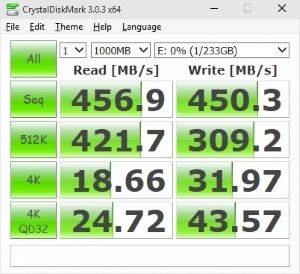

Performance measurement comparison between USB 3.1 and USB 3.0 SSD
SATA - USB 3.1 Rack Mounted converter (ADSAU31R)
SATA - USB 3.0 Rack Mounted converter (ADSAU3RM)
The above CrystalDiskMark results were measured based on the following set up:
- Desktop system equipped with Addonics USB 3.1 PCIe 2-Lane controller (AD2U31PX2) and Windows 7 64-bit
- Samsung 256G EVO mSATA SSD with rated READ and WRITE speed around 550 MB/sec
- SATA - USB 3.1 Rack Mounted converter (ADSAU3R1)
- SATA -USB 3.0 Rack Mounted converter (ADSAU3RM)
Specifications:

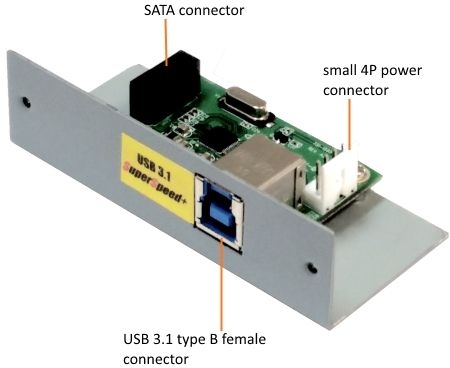

- USB 3.1 Type B upstream connector on board
- Compliant with Universal Serial Bus 3.1 Specification
- Supports SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480
Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
- Compliant with Serial ATA Specification Revision 2.6
- Port Multiplier compatible
- Supports Serial ATA transfer rate of 6.0 Gbps
- Supports ATA/ATAPI Packet Command Set
- Supports ATA/ATAPI LBA 48 Addressing mode
- Pin header on board for drive activity LED signal
- Onboard combo LED for power and drive activity
- Dimensions: 84mm(W) x 37mm(D) x 24mm(H)
- Weight: 52g
- Operating temperature range: 0 °C to +70 °C
- Operating humidity range: 5% to 90%
- Storage temperature range: -40 °C to +85 °C
- Storage humidity range: 5% - 95% (non condensing)
- 1 year warranty
- Fully RoHS compliance
