All stock codes associated to this product
PU25EU3M, PU25EU3-M
PU25EU3-M
Overview
This Addonics micro SATA Drive Reader is a high
performance Reader/Writer for accessing any 1.8" micro SATA hard drive
or SSD via eSATA or the ubiquitous USB connection. It is OS independent
and can be used in Desktop, Notebook and most computing equipment. Build
on the Pocket UDD25 platform, this Reader can also used for
accessing 2.5" HDD or SSD and a myriad of different flash media such as
M2, mSATA, CFast, CF and slim SATA SSD using various Addonics optional 2.5" flash adapters.
The storage media can be inserted or removed from
this Reader like a floppy disc without restarting the system.
Practically any storage media that is the same size as the 2.5" hard
drive and with the same SATA connector can be accessed by this Reader.
Designed to be fully portable, this device is powered directly from a
computer via the USB port.
There is also a USB READ ONLY version that blocks all
the write functions to the media, an ideal solution for forensic
application, for protecting virus contamination or data tampering.

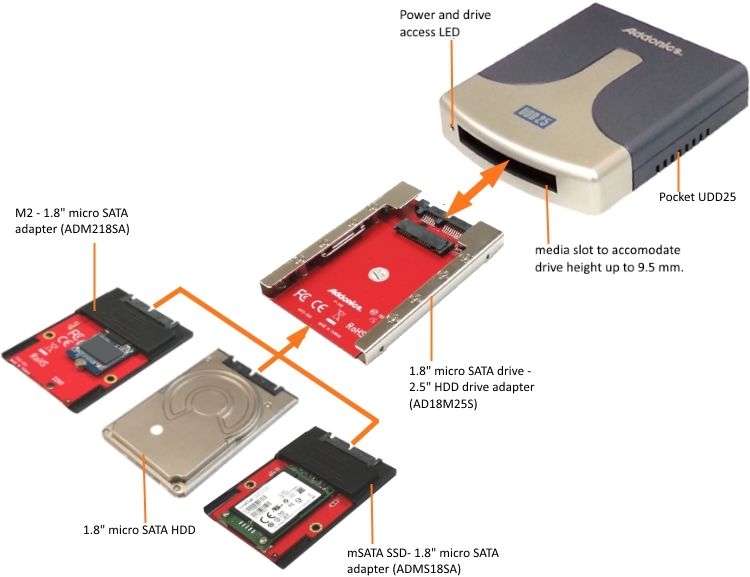

Features illustration of Micro SATA Drive Reader

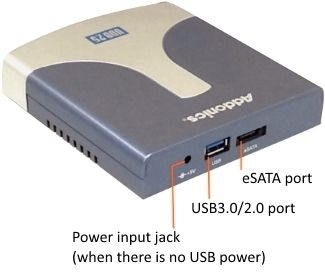

Rear view
Note: Hard drive, other flash media and the associated adapters shown in the diagram are for illustration purpose. They are not part of the product. Only the 1.8" micro SATA drive - 2.5" drive adapter is included in the Pocket UDD25-M
Features
- Read/Write to standard 2.5" SATA and 1.8" (micro SATA)
HDD/SSD or storage media with same dimension and connectors of the
standard 2.5" SATA HDD
- Media can be inserted or removed like using a floppy
disc without restarting the computer (eSATA connection requires eSATA
port that supports hot swap feature. All Addonics SATA controllers support hot swapping)
- Supported drive height from 7 - 9.5 mm
- Connect to system via SATA or USB 3.0 / 2.0 port
- Support SATA 1, 2 and 3.0 speed*, up to 6 Gbps data transfer when connecting to eSATA 3.0 port
- Support USB 3.0 and 2.0 speed*, up to 5 Gbps data transfer* with USB 3.0 connection
- Comes with all necessary cables:
- eSATA - eSATA cable (AAESATA100C)
- USB 3.0 male A - male A cable (AAU3AA3F)
- Can also Read/Write to M2, mSATA, CFast, CF and slim SATA SSD with optional Addonics 2.5" flash drive kit
- Portable - compact size and weight less than 6 oz
- Powered from USB port or optional external power adapter (AAPAC5V)
- Complete Plug and Play, no software driver to install
- Media can be used as a boot device (for CF card, it may need to be fixed disk type depending on the OS)
- Compatible with all Windows OS (XP or newer release), Mac OS X and later release, Linux kernel 2.4 and later
Specifications:
- Drive slot accommodates drive thickness up to 9.5 mm
- Device interface connectors: eSATA and USB 3.0 type A female
- Combo LED for power and drive access
- Powered from USB port or via external power adapter (AAPAC5V)
- Dimension (W x L x H): ~ 118 x 137 x 26 mm (4.65 x 5.39 x 1.02 in.)
- Weight: ~159 g (5.6 oz.)
- Operating temperature and humidity: 0 - 65° C, 5 - 90 %RH
- Storage temperature and humidity: -20 - 75 ° C, 0 - 95 %RH (non-condensing)
