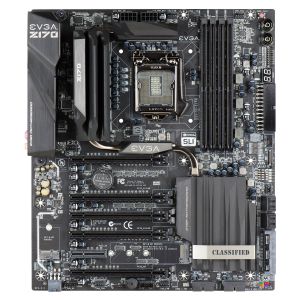

EVGA Z170 Classified Motherboard
  • LGA1151, Z170, 4xDDR4-3200, 1x16, 2x16, 3x8, 4x8, 8xSATA-III, RAID, 2xGigLAN, HD-Audio, USB3.1, DisplayPort, HDMI, E-ATX

IMG 1 of 6
No Longer Available
Part Number:
402151
(?) Brand:
EVGA Web Site
Manuf No:
151-SS-E179
151SSE179
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
151SSE179, 151-SS-E179, 21EZ170C, 21E-Z170C, 4250812407856
EVGA Z170 Classified 4-Way

P/N: 151-SS-E179-KR

Overview



 Details

Specifications

Chipset – Intel Z170

SLI – 4-Way

SATA – 8 SATA 6G

RAID 0, 1, 5, 10, JBOD

USB – 1 USB 3.1 / 8 USB 3.0 / 2 USB 2.0

Memory Support – 4 DIMM Dual-Channel DDR4 3200MHz+ (up to 64GB)

Capacitors – POSCAP/Solid State

Ethernet – 2x Intel® Gigabit NIC

Audio – Creative Sound Core3D Quad-Core Audio Processor

DisplayPort – 1x DP 1.2, 1x HDMI 1.4

Fan Headers – 7 (2 PWM, 5 DC)

PCB – 8 Layers

PCI-E Slot Arrangement – 1x16, 2x16, 3x8, 4x8

NVMe Support – Yes (PCI-E)

Form Factor

E-ATX Form Factor

Length: 12in - 304.8mm

Width: 10.375in - 263.5mm

Features

300% more gold content in the CPU socket

USB 3.0 Support

SATA 6G Support

100% Solid State Capacitors

EVGA Vdroop Control

EVGA E-LEET Tuning Support

EVGA EZ Voltage read points

Onboard Clear CMOS, Power and Reset Buttons

Onboard CPU Temperature Monitor

Dual BIOS Support

PCI Express 3.0 Support

Creative Sound Core3d

Supports Intel Core i3, i5, and i7 Socket 1151 Processors

Operating System Support
