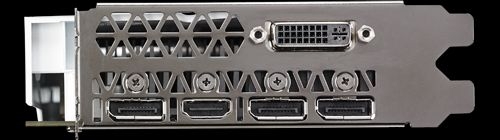

I/O Ports Highlight
1 x Native DVI-I
1 x Native HDMI 2.0
3 x Native Display Port

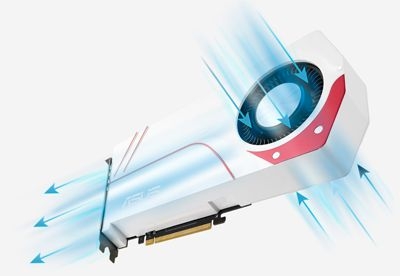

Dual-intake Blower Fan
10% cooler than reference cards and 7% cooler when running SLI configurations
With 10% greater dissipation area and double-intake blower design, ASUS Turbo GTX 960 is 10% cooler than reference cards and 7% cooler when running SLI configurations.
Tough ball-bearings on both sides of the fan housing provide greater strength and higher heat tolerance. With reduced friction, it also runs smoother, further improving 4X longer card lifespan.

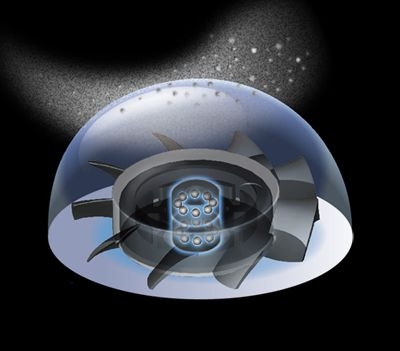

Dual-ball bearing fan
4X longer lifespan
Without the problem of oil drying common in sleeve-bearing fans, the dual-ball bearing fan on ASUS Turbo GTX 960 lasts 4X longer. With reduced friction, it also runs smoother, further improving card lifespan and cooling efficiency.
Super Alloy Power
Enhanced durability and cooling
Exclusively formulated alloy components boost performance by reducing power loss, enhancing durability and facilitating cooler operation. Concrete-core chokes eliminate buzzing sounds under full load, and the card's capacitors have a 50,000-hour lifespan — 2.5X longer than traditional capacitors.
GPU Tweak II with Xsplit Gamecaster
Tweak Till Your Heart's Content
With an intuitive new UI, GPU Tweak II makes overclocking easier than ever, and features Game Booster to maximize graphics performance and XSplit Gamecaster to stream or record your gameplay.

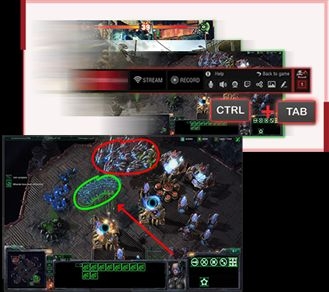

XSplitGamecaster
Now, you can also launch XSplitGamecaster to bring up the in-game overlay and start streaming or recording your gameplay with the click of a button. You can also try the in-game annotations and video editor features to enhance your game stream experience.

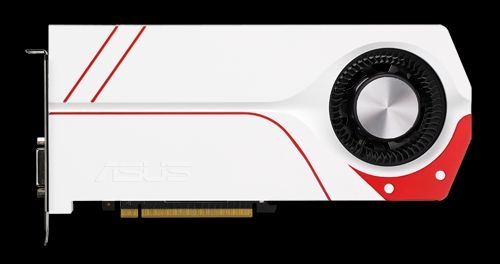

GeForce GTX 960
Technology for
intelligent monitoring of clock speed, ensuring that the GPU runs at its
peak and the game is at its highest frame rate possible. It offers new
levels of customization, including GPU temperature target, overclocking,
and unlocked voltage
Get more than just
faster frame rates. Get ultra-smooth gaming every time with NVIDIA®
gaming innovation Adaptive Vertical Sync. This technology dynamically
adjusts vsync to current frame rates for maximum playability.
Play games with advanced
effects such as blazing explosions and lifelike characters with 10X
faster switching between graphics and physics processing, enabling more
complex effects to be rendered in real time.
Multi-GPU technology for extreme performance
Bring games to life with NVIDIA® Surround™ multi-monitor gaming on a single card
Specifications
- Graphics Engine
NVIDIA GeForce GTX 960
- Bus Standard
PCI Express 3.0
- OpenGL
OpenGL®4.4
- Video Memory
GDDR5 4GB
- Engine Clock
GPU Boost Clock : 1253 MHz
GPU Base Clock : 1190 MHz
- CUDA Core
1024
- Memory Clock
7010 MHz
- Memory Interface
128-bit
- Resolution
Digital Max Resolution:4096x2160
- Interface
DVI Output : Yes x 1 (Native) (DVI-I)
HDMI Output : Yes x 1 (Native) (HDMI 2.0)
Display Port : Yes x 3 (Native) (Regular DP)
HDCP Support : Yes
- Power Consumption
up to 150W, 1 additional 6 pin PCIe power required
- Software
ASUS GPU Tweak II & Driver
- Dimensions
10.3 " x 4.71 " x 1.45 " Inch
26.4 x 12.1 x3.7 Centimeter
- Note
To have the best cooling performance, ASUS TURBO-GTX960-OC-4GD5 extends the fansink to 2 slots. Please double check you Chassis and Motherboard dimension prior to purchase to make sure it fits in your system!
Note that the actual boost clock will vary depending on actual system conditions. For more information, please visit https://www.geforce.com/
