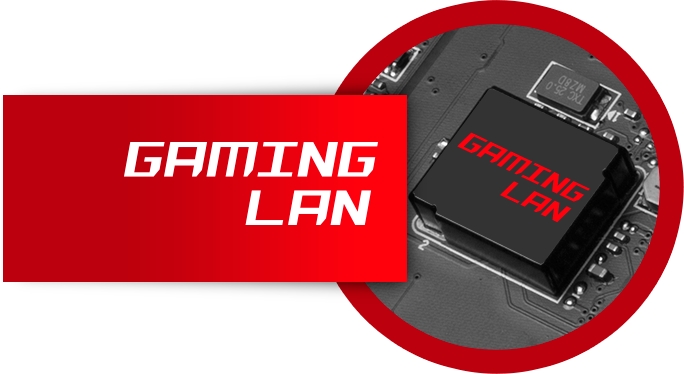

Dominate the game with lowest latency

Get ready to crush your enemies on the battlefield with MSI® GAMING LAN, featuring carefully selected components to ensure the best online gaming experience without lag.


True Gaming LAN with Killerâ„¢

Designed with gaming DNA, Killerâ„¢ LAN is optimized for championship level online and LAN eSports.

The new Killer E2400 Intelligent Networking Platform, featuring Advanced Stream Detect 2.0, is built for maximum networking performance for online games and high-quality streaming media. Killerâ„¢ LAN automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

Gaming optimized bandwith management

Dedicated to giving you the best online gaming experience with optimized traffic prioritization and low latency, MSI GAMING LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games.

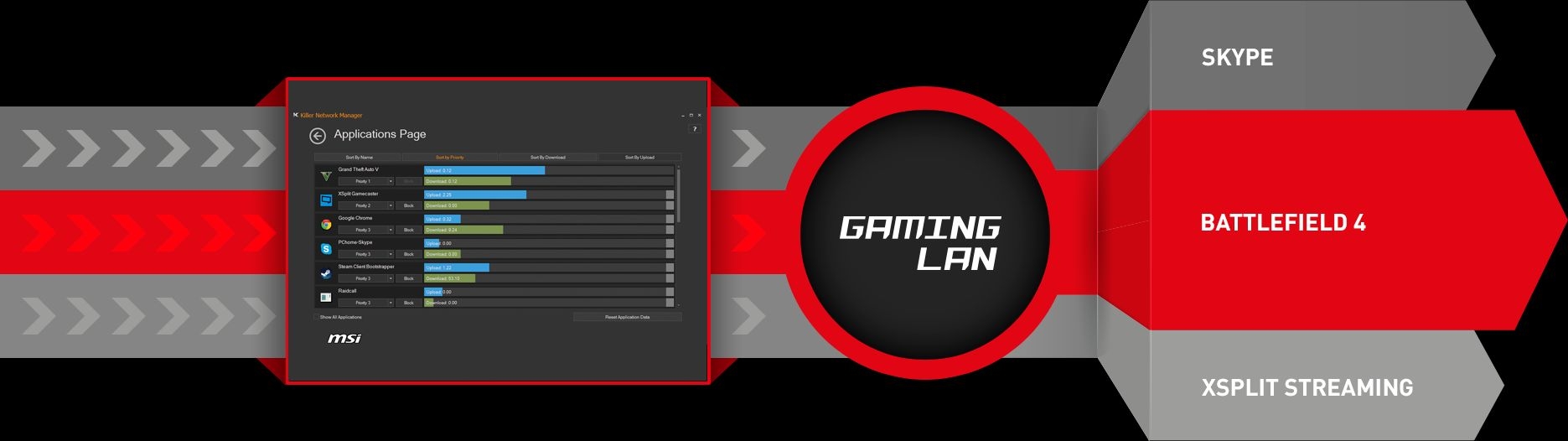

MSI GAMING LAN Manager

Automatically prioritizes games above other applications
Allows you to change applications' traffic priority
Allows you to customize you to customize bandwidth for each application

LAN Protect

Featuring 15KV anti-surge protection to shield your network from lightning strikes and static electricity, LAN Protect is a LAN connector designed to give you the best networking experience. It's highlighted with a red LED inside the RJ45 connector to show its functionality.

MSI Xtreme Audio DAC

Nahimic

Studio grade sound with AUDIO BOOST 3

With Audio Boost 3, powered by Nahimic Sound Technology and through the use of premium quality audio components, you can enjoy breathtaking, crystal-clear sound and music through 8-channel HD Audio or high impedance headphones and truly dominate the game.

Nahimic Sound Technology

Offering immersive virtual 7.1 sound in high definition using exclusive stereo equipment.

Golden Audio Jacks

With golden audio connectors you get the best possible signal output with less chance of distortion.

High Quality EMI-Shielded HD Audio Processor

Audio Boost 3 Pro is fueled by a EMI-shielded high quality HD audio processor, making sure you enjoy the purest sound quality.

Isolated Audio PCB

Chemi-Con Audio Capacitors

Delivering high fidelity crystal clear sound with exceptional acoustics and realism.

Dual Headphone Amplifiers

The built-in dual headphone amplifiers rewards your high quality headphone with studio level sound quality up to 600O delivered from your gaming PC

Front Dedicated Headphone Out

Convenient use of the front panel audio output while retaining hig quality amplified sound.

WITH NAHIMIC, ENJOY SOUND THAT PUSHES THE LIMITS OF REALITY .

Nahimic sound technology has been approved for its quality and precision in projects undertaken by the military field and the aeronautics industry. It offers immersive virtual 7.1 sound in high definition using exclusive stereo equipment.

Nahimic lifts your gaming experience to a new level, offering you highly sought-after gaming benefits:

1-second overclocking with Game Boost!

Need more FPS? Need more CPU and memory power? With Game Boost’ one-second overclocking option we're giving you even more performance. Just turn the dial and your PC gets another adrenalin shot. With Game Boost going up to eleven , a performance increase up to 5GHz is possible!

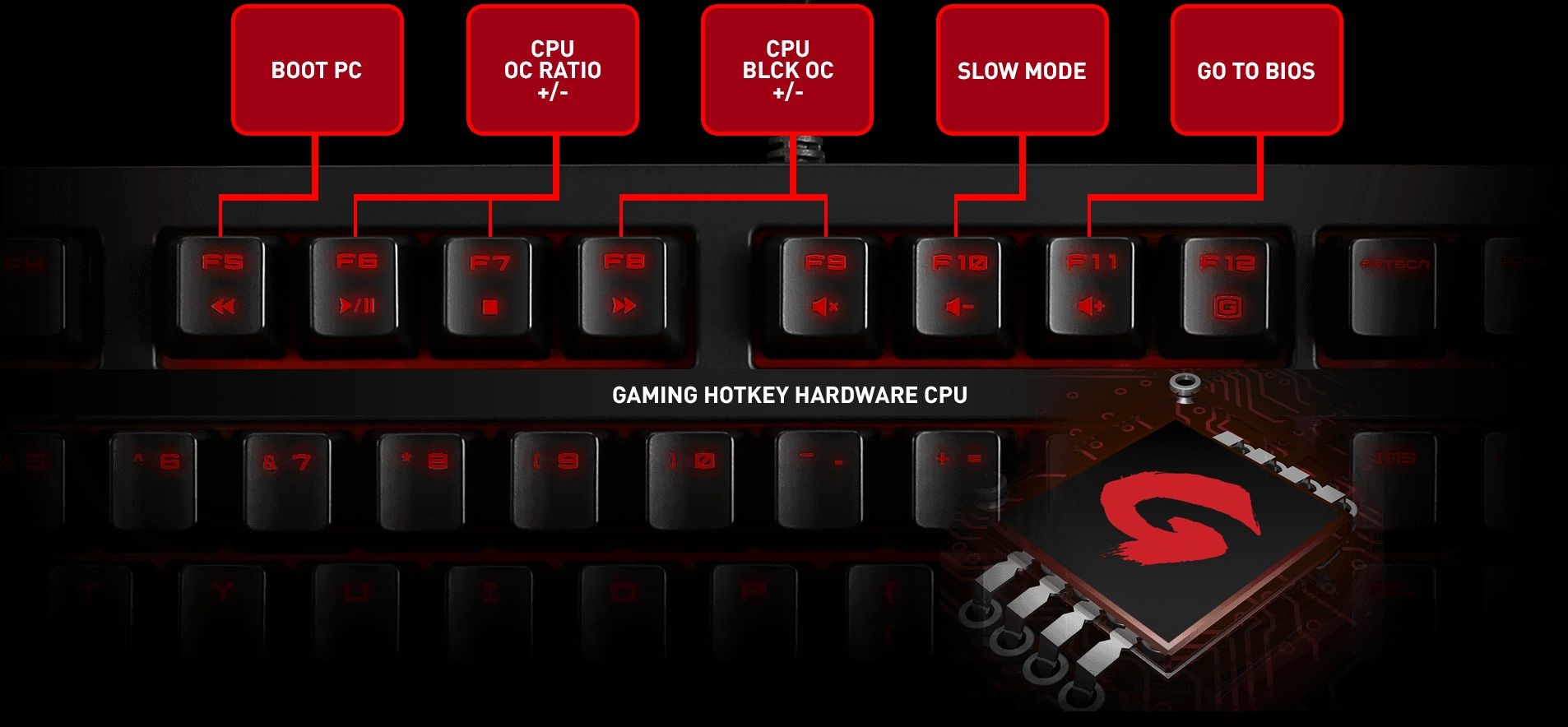

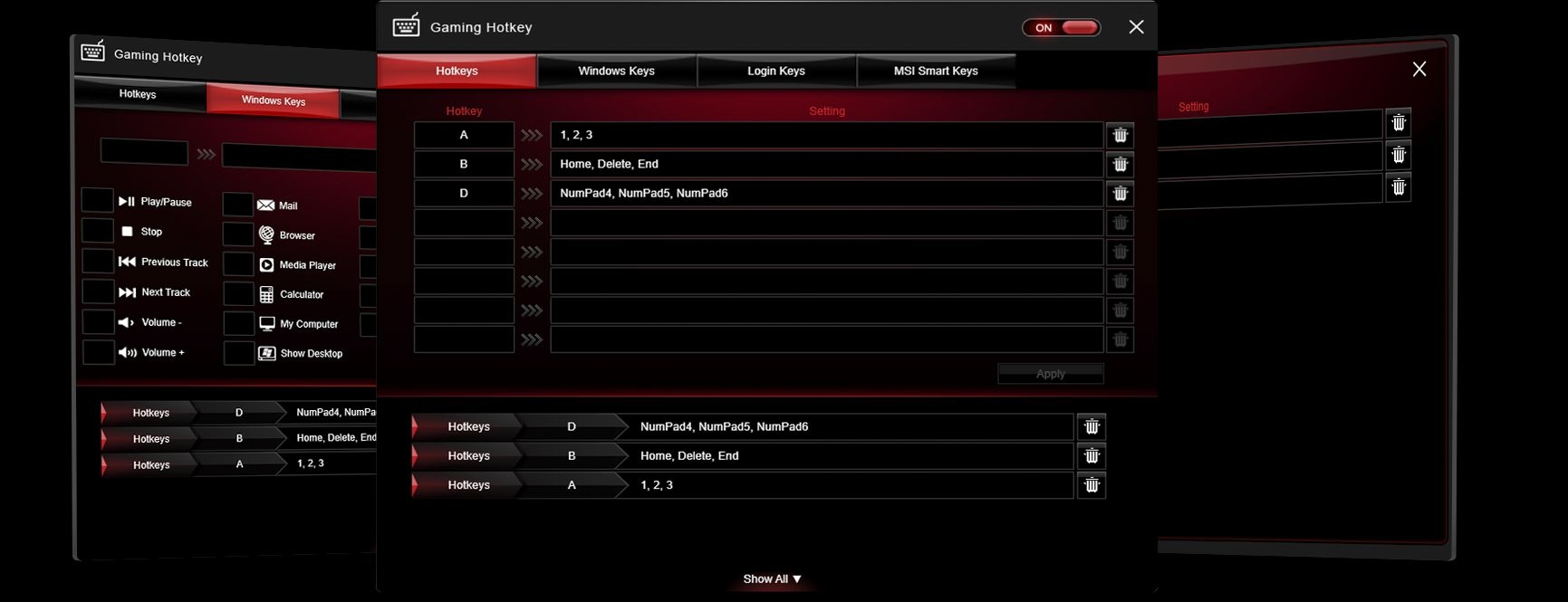

GAMING HOTKEY

Gaming Hotkey, with a dedicated hardware chip, enables more functionality using your own keyboard. Simply assign functions or macros to any key and turn your PC on/off, launch your favorite games, load overclocking profiles or do real-time overclocking with the push of a single button. The possibilities are endless!

Customize any key on your keyboard

Up to 16 steps macro programming

User friendly, easy to use application

1 key load up of your favorite game

1 key overclocking

TOTAL FREEDOM, MAXIMUM EASE

Easily program your most used commands to be executed with a single keystroke. You are free to choose any key you want.

Hotkeys

Assign your own keyboard combinations
Windows keys

Quick launch any application or folder

Quick launch of mail, browser or more
MSI® Smart keys

One press to login (program passwords)
Login Keys

2X FASTER

MSI USB 3.1 GEN2

Transfer your favorite games, music and movies over USB faster than ever. USB 3.1 Gen2 enables lightning-fast transfer speeds up to 10Gb/s!
USB3.1

Benefits

2X faster than USB 3.1 Gen1
20X faster than USB 2.0
Up to 10Gbps data transfer bandwidth
Boost transfer rate for your PC and peripherals

REVERSIBLE DESIGN

Type-C with reversible design

Get all the performance benefits from USB 3.1 Gen2 combined with the convenience of the USB Type-C connector. This reversible connector allows for effortless connecting of USB devices.

SUPER CHARGER

With MSI Super Charger you can deliver more power than regular USB chargers to your smartphone, tablet, USB game controller or portable console. You can quickly charge these devices when you're not gaming on your PC, eliminating the need for wall power sockets.

USB REDRIVERS

USB 3.1 Gen1 signal integrity suffers with longer cables. The special USB 3.1 Gen1 Redrivers connected to the internal USB 3.1 Gen1 ports on MSI motherboards, enable you to use longer USB 3.1 Gen1 cables, especially in larger chassis.

FRONT USB 3.1 Gen1

With a cleverly placed USB 3.1 Gen1 front pin header on MSI motherboards, you can connect up to 4 USB 3.1 Gen1 devices directly to the front of your PC Chassis. This way you can easily enjoy fast USB speeds without having to use the hard-to-reach USB ports at the rear.

DOUBLE ESD PROTECTION

The front USB 3.1 Gen1 ports on MSI motherboards are protected by a set of protective ICs to prevent damage caused by Electrostatic Discharge (ESD) from plugging/unplugging USB devices.

DOUBLE ESD PROTECTION

The front USB 3.1 Gen1 ports on MSI motherboards are protected by a set of protective ICs to prevent damage caused by Electrostatic Discharge (ESD) from plugging/unplugging USB devices.

Fast storage with SATA Express

SATA Express offers a solution in high speed storage through PCI-Express, providing more bandwidth for the latest generation SSDs up to 16 Gb/s.

Twin Turbo design

Delivering speeds up to 64Gb/s using Gen3 x4, Turbo M.2 is over 10 times faster than a regular SATA III connection! Enjoy a blazing fast system boot up and insanely fast loading of applications and games with MSI motherboards.

Turbo U.2 Host Card (optional)

The U.2 Host Card delivers performance up to 32 Gb/s and allows support for next gen 2.5-inch SSDs using the U.2 connector. A redriver chip is added to increase data transfer speed.

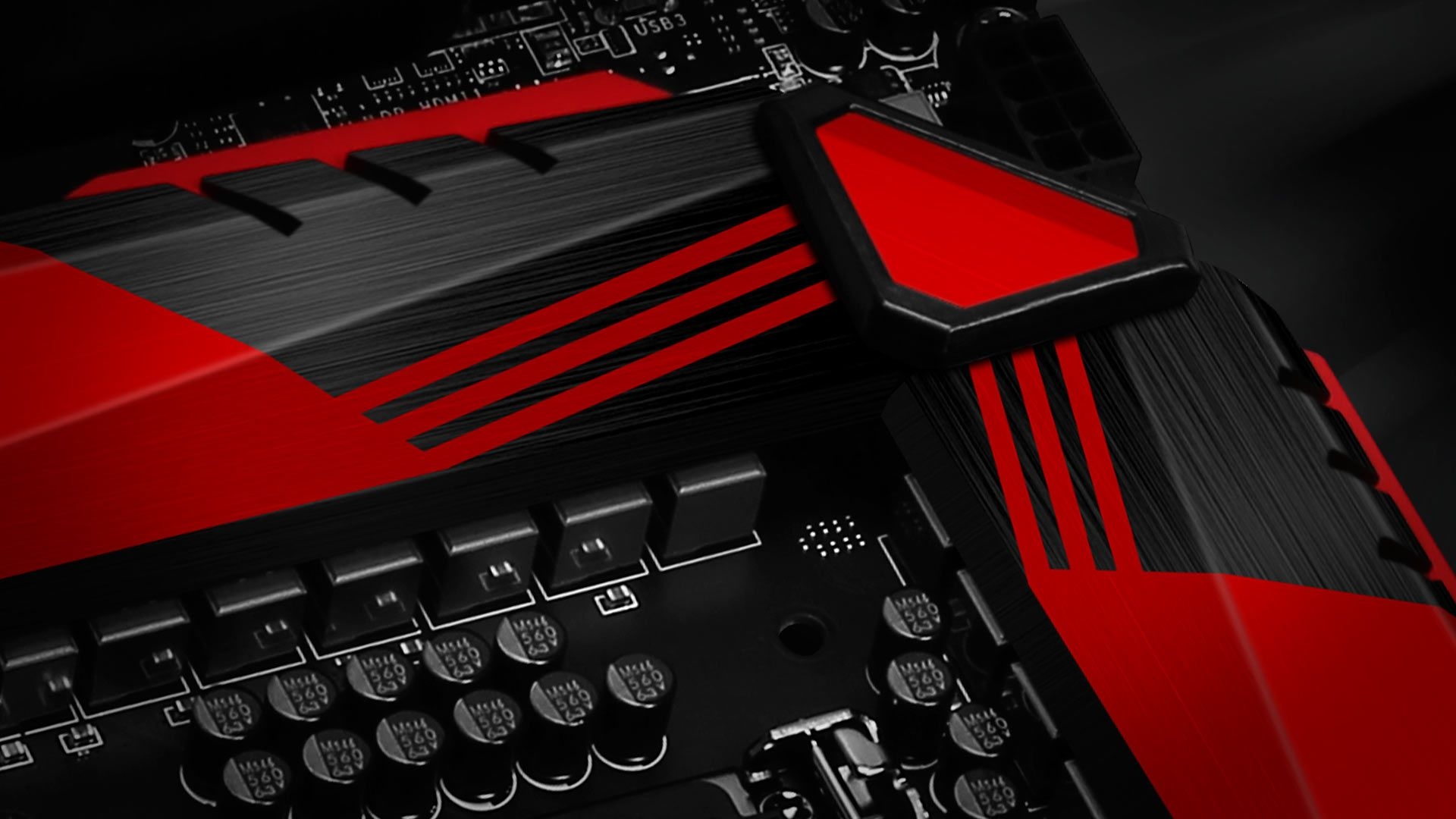

Designed for Overclocking

With a long history of breaking world records inherited from MSI's legendary Overclocking motherboards, this motherboard has OC running through its veins. Built from the ground up to support heavy overclocking, from its OC PCB to Military Class components, you know this MSI motherboard is ready to push the limits!

Copper Contact Cooling
Extreme Socket Design
Premium Power Phases
DIGITALL POWER
OC PCB Design
Overvoltage Protection

Sky's the limit with OC Engine 2

OC Engine has been beefed up for MSI Z170 motherboards. This external clock generator gives you even more freedom to achieve the absolute maximum overclock for your setup. OC Engine 2 also offers lower jitter and lower power consumption resulting in even higher stability under extreme conditions. The sky is the limit!

OC Essentials

Meet the overclockers' swiss army knife; OC essentials is a set of tools that are essential to get the best performance out of your motherboard. These features increase stability, assist in trouble shooting, allow you to keep your complete system in check and allow for simple management. This way you can keep your mind on overclocking.

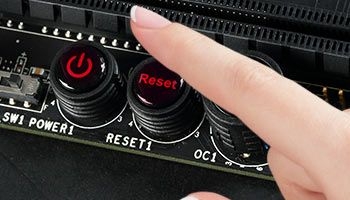

Easy Button 3

Allowing fast and easy reset and power up / power down of your system while overclocking. The buttons are conviently placed and light up so you can easily find them in a dark environment.

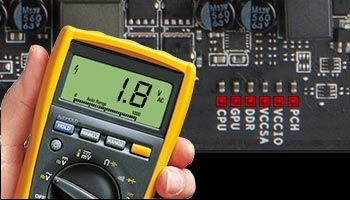

V-Check Points 2 Lite

Accurately monitor your voltages while overclocking. V-Check points 2 Lite supports legacy and modern multimeters for optimal monitoring of voltages.

Debug LED

A 2-Digit Debug LED is present for easy diagnostics. While operational it also displays the CPU package temperature.

Clear CMOS Button

Conveniently placed on the backside of the motherboard, the Clear CMOS button lets you easily reset the BIOS when your overclocking attempts failed. Saving you the hassle from opening your case and removing the jumper.

Slow Mode

Slow Mode helps to defeat booting issues when overclocking at extremely high CPU frequencies. Flicking the switch will temporary decrease CPU ratio below stock settings, creating stability to successfully boot to Windows.

SteelSeries Certified

Get ready to enjoy the best gaming experience with MSI & SteelSeries!

Enthusiast gaming gear brand SteelSeries has officially approved MSI GAMING motherboards as ‘SteelSeries Certified (SSC)’. This certification is based on the performance demands and stability of MSI GAMING motherboards and SteelSeries products. Your SteelSeries headset, mouse and other top quality gaming gear works best on MSI GAMING motherboards.

GAMING CERTIFIED

Our GAMING motherboards are tested in our gaming lab, internet cafes and together with the world’s best eSports players to make sure you get top performance and reliability in the world’s most popular games. Through 24-hour on- and offline game testing, MSI ensures the onboard network configuration, audio reception and FPS performance are tested and tuned to perfection for you to enjoy the best possible gameplay experience.

Only the motherboards that pass this test receive the GAMING CERTIFIED status and are considered true MSI® GAMING motherboards.

Titanium Choke

Titanium Choke uses a Titanium core that has better ability in thermal and higher temperature tolerance. This allows the Titanium Choke to run at a 220 degree Celsius high temperature, have a 40% higher current capacity, a 30% improvement in power efficiency and better overclocking power stability.

DARK CAP

With their aluminum core design, Dark CAPs has been a staple in high-end motherboard designs and provides lower Equivalent Series Resistance (ESR) as well as its over-10-year lifespan.

MILITARY CLASS 5 COMPONENTS

Military Class 5 is the latest evolution in high quality components. The Titanium Choke and Dark CAP ensure that your PC runs stable under extreme gaming conditions.

HUMIDITY PROTECTION

Reduction in moisture absorption helps prevent "Conductive Anodic Filament". Untreated PCB's can have 10x higher failure rate.

HIGH TEMPERATURE PROTECTION

All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments.

CIRCUIT PROTECTION

Carefully selected materials, multiple PCB layers and shielding result in the best circuit protection for our GAMING motherboards.

ESD PROTECTION

Each and every I/O port is protected against the hazards of Electro Static Discharge.

EMI PROTECTION

All MSI motherboards comply with strict American FCC regulation and reduce the impact of Elctromagnetic Interfernce

Optimized for multiple graphics cards

SLI /CrossFire support

This motherboard supports SLI / CrossFire. Optimal PCI-Express slot placement allows for better fitting and airflow.

That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an NVIDIA® SLI™ or AMD CrossFire™ setup.

Prevent damage!

Worried about damaging the PCI-Express slot or your graphics card because of the weight?

MSI® Steel Armor

Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free gaming experience and higher GPU overclocking.

THE ALL NEW, AWARD-WINNING CLICK BIOS 5

Explore the greatly improved, award-winning CLICK BIOS 5 and use it to tune your system to maximum performance to get the most out of your games. MSI CLICK BIOS 5 is the next generation UEFI BIOS with optimizations for Windows 10.

Control your system in two modes: EZ mode, for the most used settings and functions. Advanced mode for more detailed settings and fine-tuning options to boost your system’s performance.

Variety of options to boost your game performance
Next gen UEFI BIOS with award winning design
High-resolution multi language scalable font
Easy to use
Advanced overclocking

Easy BIOS recovery

Run into trouble after updating your BIOS? Simply flash an old version back and continue gaming within minutes using BIOS Flashback+. You can even use BIOS Flashback+ without the CPU, memory or graphics card!

1. No CPU/DDR/VGA required
2. Connect power
3. Insert dongle with BIOS file
4. Use Flashback button/hotkey

GAMING DEVICE PORT

MSI Gaming Device Port is optimized to deliver the best connectivity for high end gaming mice to fully utilize its speed. You can customize your mouse’ DPI to change accuracy and program macro combinations using the easy to use Mouse Master software to perform multiple commands with just one click.

Gaming benefits

More responsive, faster reactions
Customizable mouse settings
Customizable mouse accuracy (DPI)
Program macros for multiple actions in 1 click
Smoother gameplay

Technical benefits

3x more gold than regular connectors
10x longer lifetime when plugging/un-plugging
Prevents oxidation

Your Game, Your Stream, Your Fame

XSplit Gamecaster & Broadcaster V2 lets you easily record your gaming moments and broadcast your live gameplay sessions to Twitch, YouTube, UStream and more.

It's simple, easy to use and ideal for sharing your gameplay with friends, family or the world - or for capturing those perfect gaming moments, just for the heck of it.

Specifications:

Socket
1151

CPU (Max Support)
i7

Chipset
Intel® Z170 Express

DDR4 Memory
3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz

Memory Channel
Dual

DIMM Slots
4

Max Memory (GB)
64

PCI-Ex16
3

PCI-E Gen
Gen3

PCI-Ex1
4

SATA Express
2

SATAIII
6

M.2 port
2

RAID
0/1/5/10

TPM (header)
Y

LAN
10/100/1000*1

USB 3.1 ports(Front)
4(Gen1)

USB 3.1 ports (Rear)
2(Gen1), 2(Gen2)

USB 2.0 ports (Front)
4

USB 2.0 ports (Rear)
3

Audio ports (Rear)
5+ Optical SPDIF

DisplayPort
1

HDMI
2

DirectX
DX12

Form Factor
ATX

SLI
Y

CrossFire
Y

CPU
Supports 6th Gen Intel® Core&trade i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset
Intel® Z170 Chipset

Main Memory

4 x DDR4 memory slots, support up to 64GB
Supports DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
Dual channel memory architecture
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Hyper DIMM support is subject to the physical characteristics of individual CPUs

Slots

3 x PCIe 3.0 x16 slots (support x16, x8/x8, x8/x8/x4 or x8/ x8/x2 modes)
4 x PCIe 3.0 x1 slots

Onboard Graphics

2 x HDMIâ„¢ ports, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
1 x DisplayPort, support a maximum resolution of 4096x2304@60Hz, 2560x1600@60Hz, 3840x2160@60Hz, 1920x1200@60Hz

Multi-GPU

Supports 3-Way AMD® CrossFire™ Technology
Supports 2-Way NVIDIA® SLI™ Technology

Storage

Intel® Z170 Express Chipset
6 x SATA 6Gb/s ports* (4 ports reserved for SATAe)
2 x M.2 slot*
Supports PCIe 3.0 x4 and SATA 6Gb/s standards,4.2cm/ 6cm/ 8cm length M.2 SSD cards
Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2 Host Card**

2 x SATAe port (PCIe 3.0 x2) ***
Supports Intel® Smart Response Technology for Intel Core™ processors

M.2, SATA and SATAe ports maximum support 1x M.2_PCIe + 6x SATAs or 1x M.2_SATA + 1x M.2_PCIe + 4x SATAs.
The Turbo U.2 Host Card is not included, please purchase separately.
SATAe port is backward compatible with SATA.

RAID

Intel® Z170 Chipset
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID1 for M.2 PCIe storage devices*

M.2 PCIe RAID volume can be created with UEFI BIOS

USB

ASMedia® ASM1142 Chipset
1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port on the back panel
1 x USB 3.1 Gen2 Type-C port on the back panel

Intel® Z170 Express Chipset
6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)
7 x USB 2.0 (High-speed USB) ports (3 ports on the back panel, 4 ports available through the internal USB connectors)

Audio

Realtek® ALC1150 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN

1 x Killerâ„¢ E2400 Gigabit LAN controller

Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x SATAe connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x GAME BOOST button
- 1 x Power button
- 1 x Reset button
- 1 x BIOS FLASHBACK+ button
- 1 x HOTKEY switch
- 1 x Slow mode switch
- 1 x Clear CMOS jumper
- 1 x 2-Digit Debug Code LED

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse port
- 3 x USB 2.0 ports
  * 1 x HOTKEY port
  * 1 x BIOS FLASHBACK+ port
- 1 x Clear CMOS button
- 2 x HDMIâ„¢ ports
- 1 x DisplayPort
- 1 x USB 3.1 Gen2 port
- 1 x USB 3.1 Gen2 Type-C port
- 2 x USB 3.1 Gen1 ports
- 1 x LAN (RJ45) port
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks

BIOS

The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor

Mounting

9 mounting holes
