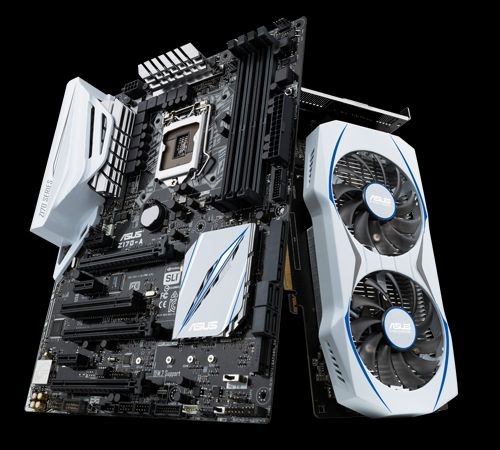

Perfectly matched with ASUS Z170 motherboards
Optimized style and performance
ASUS GTX 950 graphics card and Z170 motherboards share perfectly matching color themes and are ready for Windows 10. GTX 950 is equipped with DirectX 12 to squeeze more graphics performance from the CPU and prevent GPU bottlenecks.

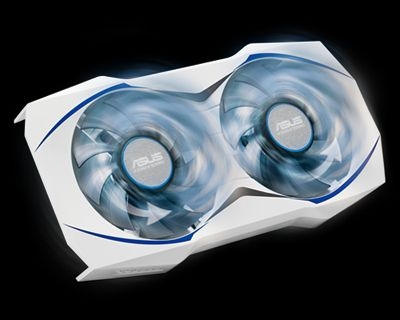

Dual Fan Cooling
2X greater airflow. 3X quieter.
Twin optimized fans carefully selected by engineers drive 2X greater airflow while maintaining 3X quieter performance, combining enhanced cooling with a more pleasant gaming and computing environment.
AUTO-EXTREME Technology with Super Alloy Power II
Premium quality and best reliability

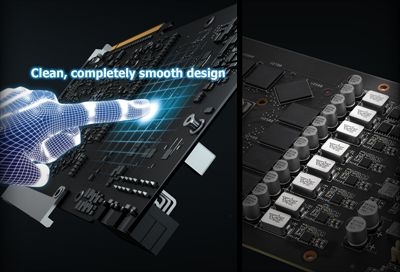

ASUS graphics cards are produced using AUTO-EXTREME technology, an industry-first 100% automated production process, and feature premium Super Alloy Power II components that enhance efficiency, reduce power loss, decrease component buzzing under load, and lower thermal temperatures for unsurpassed quality and reliability.
GPU Tweak II with XSplit Gamecaster
Tweak Till Your Heart's Content
Redesigned with an intuitive, all-new UI, GPU Tweak II makes overclocking easier and more visual than ever, while still retaining advanced options for seasoned overclockers. With one click, the new Gaming Booster function maximizes graphics performance by removing redundant processes and allocating all available resources automatically. XSplit Gamecaster lets you easily stream or record your gameplay right from a convenient, in-game overlay.
XSplit Gamecaster: Stream and record your gameplay instantly
Now, you can also launch XSplit Gamecaster to bring up the in-game overlay and start streaming or recording your gameplay with the click of a button. You can also try the in-game annotations and video editor features to enhance your game stream experience.
GeForce GTX 950
NVIDIA®GPU Boost 2.0
Technology for intelligent monitoring of clock speed, ensuring that the GPU runs at its peak and the game is at its highest frame rate possible. It offers new levels of customization, including GPU temperature target, overclocking, and unlocked voltage.
NVIDIA® G-Sync
G-sync technology smoothness is achieved by synchronizing display refresh rates to the GPU, eliminating screen tearing and minimizing display stutter and input lag.
NVIDIA®Adaptive V-Sync
NVIDIA Adaptive Vertical Sync adjusts V-Sync to current frame rates for maximum playability.
NVIDIA® PhysX® ready
Dynamic visual effects like blazing explosions, reactive debris, realistic water, and lifelike characters.
SLI Support
Multi-GPU technology for extreme performance.
NVIDIA® 3D Vision™ Surround Read
Bring games to life with NVIDIA® Surround™multi-monitor gaming on a single card.
Specifications:
- Graphics Engine
NVIDIA GeForce GTX 950
- Bus Standard
PCI Express 3.0
- OpenGL
OpenGL®4.5
- Video Memory
GDDR5 2GB
- Engine Clock
OC Mode - GPU Boost Clock : 1279 MHZ , GPU Base Clock : 1102 MHz
Gaming Mode (Default) - GPU Boost Clock : 1253 MHZ , GPU Base Clock : 1076 MHz
- CUDA Core
768
- Memory Clock
6610 MHz
- Memory Interface
128-bit
- Resolution
Digital Max Resolution:4096x2160
- Interface
DVI Output : Yes x 1 (Native) (DVI-I)
HDMI Output : Yes x 1 (Native) (HDMI 2.0)
Display Port : Yes x 1 (Native) (Regular DP)
HDCP Support : Yes
- Software
ASUS GPU Tweak II & Driver
- Dimensions
8.3 " x 4.5 " x 1.6 " Inch
21 x 11.3 x 4 Centimeter
- Note
•
To have the best cooling performance, ASUS GTX950-OC-2GD5 extends the
fansink to 2 slots. Please double check you Chassis and Motherboard
dimension prior to purchase to make sure it fits in your system!
•
Note that the actual boost clock will vary depending on actual system
conditions. For more information, please visit https://www.geforce.com/
