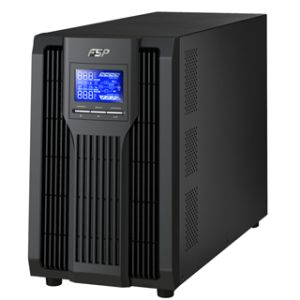

FSP CHAMP TW 3K 3000VA, Smart RS232, USB, SNMP - 2700W

IMG 1 of 1
No Longer Available
Part Number:
402889
(?) Brand:
FSP
Manuf No:
CHAMP 3K
Shipping Weight:
27.6 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
CHAMP3K, CHAMP 3K, UPFCHAMP3000VA, UPF-CHAMP3000VA, 4711140481159

Champ TW 3K

FSP Champ is the high density version of double-conversion online UPS with a output power factor that reaches 0.9 and featured with ECO mode for energy saving.

Introduction

Champ TW 3K

FSP Champ  is the high density version of double-conversion online UPS with a output power factor 0.9. It’s designed in small cabinet with microprocessor controller.

Champ also have USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.

Features

  • True double-conversion
  • Microprocessor control optimizes reliability
  • Input power factor correction
  • Output power factor 0.9
  • Wide input voltage (120 V – 300 V)
  • Converter mode available
  • ECO mode for energy saving
  • Generator compatible
  • Charger capacity expansion to 6A for long-run models
  • Smart SNMP works well with either USB or RS-232 together
  •  Comprehensive display allows easy monitoring and access of UPS status

Specifications

Product Specification
Model Champ TW 3K
Capacity 3000 VA / 2700 W
Input/ Voltage 100/110/115/120/127VAC or 200/208/220/230/240VAC
Input/ Voltage Range 120-300 VAC ±5%
Input/ Frequence (60/50 Hz (auto sensing))
Output/ Voltage ± 1%
Output/ Frequence Range 50 Hz or 60Hz ± 0.5%
Output/ Waveform(Batt. Mode) Pure Slin Wave
Battery/ Battery Type & Number 12 V / 9 AH, 6
Battery/ Typical Recharge Time 4 hours recover to 90% capacity
Physical/ Dimension, D x W x H (mm) 421(L) x 190(W) x 318(H)
Physical/ Net Weight (kgs) 27.6

No additional files, specification sheets, guides or documentation found for product.

Warranty: 24 months*

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
