HOME / Back -> Power Supplies -> 700W - 799W -> ThermalTake

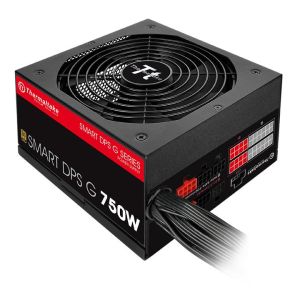

ThermalTake 750W Smart DPS G PSU - ATX 12V v2.31, SSI =EPS 12V v2.92, 120mm Fan, Flat Modular Cables, 80 PLUS Bronze Certified
  • 4x SATA, 4xPCI-E 6+2-Pin

IMG 1 of 1
No Longer Available
Part Number:
403253
(?) Brand:
ThermalTake Web Site
Manuf No:
PS-SPG-0750DPCGAU-G
PSSPG0750DPCGAUG
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
PSSPG0750DPCGAUG, PS-SPG-0750DPCGAU-G
Smart DPS G 750W Gold

The Thermaltake SMART DPS G Gold Series are smart power supply units that incorporate various high-tech components, leading technology and Eco-friendly commendations, featuring 80 PLUS Gold certification with a semi-modular that always accommodate any mainstream build under any circumstance.

The combination of Smart DPS G Gold and three intelligent platforms – DPS G PC APP 2.0, DPS G Smart Power Management (SPM) Cloud 1.0, and DPS G Mobile APP 1.0 helps users not just monitor smart power supply units, but also save the energy, reduce CO2 emission, and eventually protect the Earth.

Specifications

P/N PS-SPG-0750DPCGXX-G
Short P/N

SPG-0750D-G
Model

SPG-750DH3CCG
Type

Intel ATX 12V 2.31 & SSI EPS 12V 2.92
Max. Output Capacity

750W
Dimension (W / H / D) 150mm(W) x 86mm(H) x 160mm(D)
Peak Output Capacity

900W
Color

Black
PFC (Power Factor Correction)

Active PFC
Power Good Signal

100-500 msec
Hold Up Time > 10msec at 80% of full load (230Vac input)
Input current

10A
Input Frequency Range

47Hz - 63Hz
Input Voltage 100V - 240V
Operating Temperature 0 ? to +40?
Operating Humidity 20% to 90%, non-condensing
Storage Temperature -20 ? to +70 ?
Storage Humidity

5% to 95%, non-condensing
Cooling System 14cm dual ball bearing fan
Efficiency

MEET 80 Plus Gold at 115Vac input.
MTBF

120,000 hrs minimum
Safety Approval CE/FCC/cTUVus/CB/EAC/BSMI
PCI-E Connector PCI-E 6+2pin X 4





No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
