N3050I-C
Overview

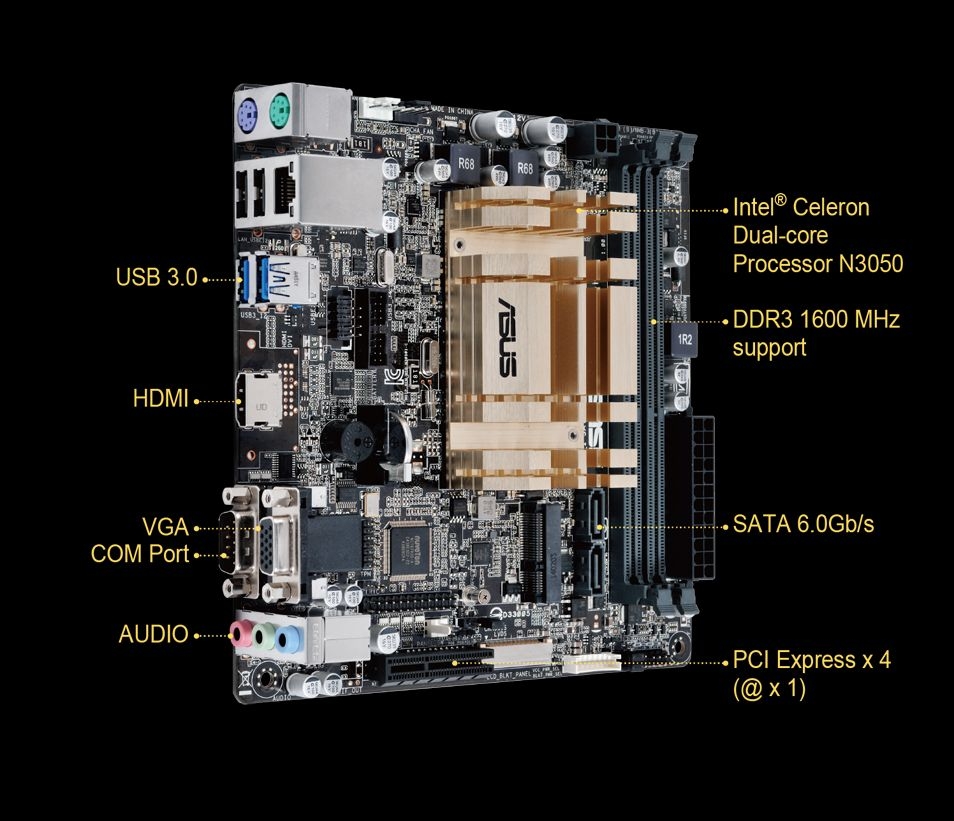

Low-power, fanless mini-ITX motherboard for Intel Celeron® SoC N3050 processors, with 5X Protection and HDMI/D-Sub/LVDS support
- Proven quality - 5X Protection. 1000+ compatible devices. 7000+ validation hours.
- USB 3.0 BOOST (UASP Support):170% faster transfer speeds than traditional USB 3.0
- AI Suite 3:One-stop access to innovative ASUS features
- Fan Xpert:Dedicated CPU and case fan controls
- New UEFI BIOS and EZ Mode:Friendlier, easier, and more intuitive with helpful info added
Proven quality. Enduring trust.
Strict compatibility and validation
Protection
Hardware safeguards to ensure long-term durability.
Compatible Devices
Including memory modules, graphics cards and more.
Validation Hours
Extensive testing for extreme reliability, compatibility and safety.
We are the world's biggest motherboard manufacturer, and renowned our design thinking that revolves around users – just like you. Our engineers employ exacting standards to guarantee quality throughout the product's life, choosing the finest components for real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and undergo a minimum of 7,000 hours of strict validation. That gives you the peace of mind of knowing that ASUS motherboards are fit for all environments and applications. To build your PC with the best foundations, build it with an ASUS motherboard.
ASUS 5X Protection
Hardware safeguards to ensure long-term durability
Our be-the-best ethos underscores the choice of every single component that goes into your ASUS motherboard. We focus relentlessly on quality to ensure long-term system reliability and performance.
LANGuard for advanced LAN protection
ASUS LANGuard socket has advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, while surge-protected and electrostatically-guarded components (ESD Guards) protect your motherboard from lightning strikes and static electricity.
Enhanced DRAM overcurrent protection
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected device.
5K-hr solid-state capacitors that last 2.5X longer
Solid-state capacitors are able to withstand extreme temperatures of up to 105°C for as long as 5,000 hours — that's two-and-a-half (2.5X) times longer than traditional capacitors. This exceptional durability means superb real-world endurance to more typical PC operating temperatures, ensuring that ASUS motherboards continue working longer.
Stainless-steel back I/O that lasts 3X longer
ASUS motherboard back I/O panels are made from strong and corrosion-resistant stainless steel, which is bonded with a thin layer of chromium oxide to enhance anti-corrosive properties. Passing 72-hour spray salt endurance tests, ASUS stainless steel back I/O panels have a lifespan that's three times (3X) longer compared to ordinary panels.
ESD Guards for protection from electrostatic discharge
Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.
Keyboard and mouse connectors:
Additional on-circuit ESD transient-voltage-suppression (TVS) diodes.
D-Sub connectors:
Additional on-circuit ESD TVS diodes to protect
D-Sub functionality.
USB 3.0 connectors:
On-circuit TVS diodes for surface-mount and dual-inline packages.
LAN port:
LANGuard protection on the LAN circuit.
USB 2.0 connectors:
Varistor protection on back audio-output circuits.
Proven compatibility
Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future – that's the ASUS way.
Tested - 1,000+ compatible CPUs, memory modules, graphics cards and more
Every Braswell-based motherboard is compatible with thousands of devices. Our engineers fit and assess both server and consumer CPUs, hundreds of memory modules, dozens of graphics cards, loads of storage devices, power supplies, network devices, displays, optical drives, peripherals and many more. We do this to give you complete confidence in our products and their superb compatibility.

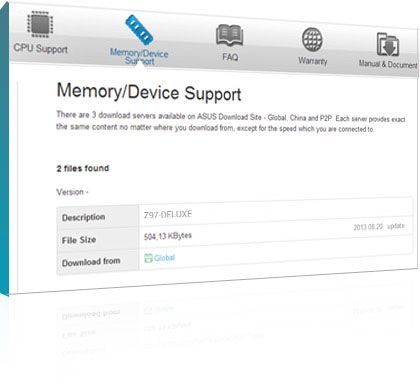

Complete & Public QVL
View our Qualified Vendor List (QVL) online
We're so confident in our Braswell-based motherboards' superior compatibility that we publish our entire QVL for all to see — delivering you more choices for worry-free PC-building experiences. There are no gaps in our QVL: every compatible component is on the list for all to see. To check that a particular component or device is compatible with your motherboard, just reference the QVL for instant reassurance.

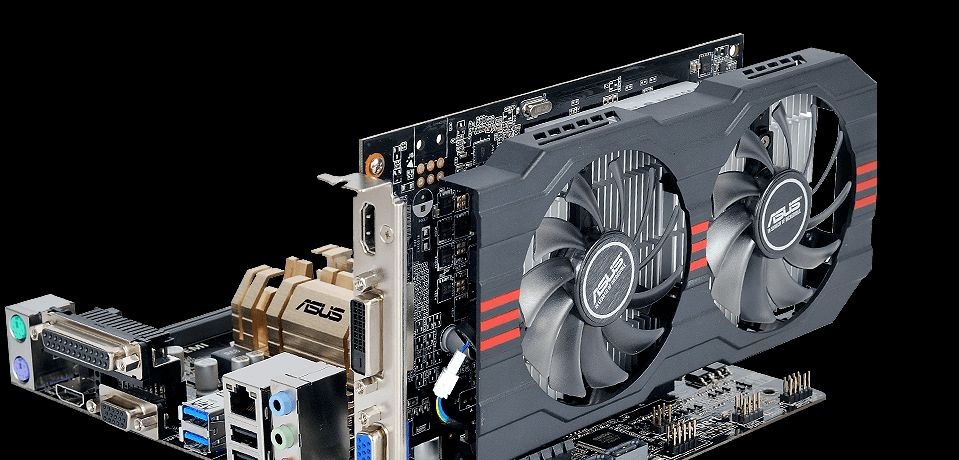

Designed — Great compatibility with ASUS products
When you choose an ASUS motherboard, it's likely you'll also go with ASUS for other components. ASUS designs products from the ground up so that graphics cards, sound cards and optical drives work flawlessly with your motherboard.
Top-to-bottom reliability
Our motherboards have superb endurance. We verify this by subjecting every board to over 7,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust — with reliability that surpasses industry standards.
Extensive testing for extreme reliability, compatibility and safety
Each motherboard is subjected to extended reliability testing under heavy load conditions, from the transportation to daily operations, to make sure they are delivered to you in perfect condition. Trials include temperature and humidity, burn-in, power on/off, power consumption, insertion and thermal-shock testing among many others. Every certified-compatible component puts through an up to 24-hour aging test to ensure trouble-free operation every day – no matter what you fit or attach and no matter what you do!
Temperature and Humidity Test
Components withstand extreme conditions
Thermal Measurement
Cool and stable under the heaviest loads
Insertion Test
Guaranteed I/O reliability
Up to 24-hour aging test to ensure reliability
Power Consumption Test
Ensure global-standard energy efficiency
Temperature and DC Margin
Thermal Shock Test
Non-Operation Vibration Test
Burn-In Test
Installation Test
Drop Test
Shock Test
Salt and Spray Test
Games or multimedia — it's always ready!
Work with up to 3 displays
Connect up to three independent monitors at once using video outputs such as DisplayPort, Mini DisplayPort, HDMI, DVI, LVDS, or VGA. Choose your outputs and set displays to either mirror mode or collage mode.
4K/Ultra HD visual excellence
Native support for 4K/UHD (ultra-high-definition) resolutions of up to 3840 x 2160 via HDMI or DisplayPort —that's four times the pixel count of 1080p (1920 x 1080), offering incredible visual clarity, detail, and realism.
Media-acclaimed the most intuitive UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.
Map to MyFavorite:
Quickly find tuning options and add preferred tools to the MyFavorites list!
Frequently-accessed setup info display
Displays the CPU and motherboard temperature, CPU voltage output, CPU and chassis fan speed, and SATA information
Boot priority setting
Easy access to the boot priority setting in the EZ Mode
Real-time hardware monitor
Benefit from instant information from the critical parts of your system!
EZ Mode
Fan Profile:
Detailed CPU & Chassis fan controls for instant cooling.
SATA Information:
Displays each SATA port details for you to easily recognize devices.
Advanced Mode
Shortcut:
Customize your own shortcut log by pressing F4 or right clicking to create shortcuts to frequently-used settings.
Quick Notes:
Type remarks and ideas in the BIOS. Save time and convenient.
Last Modified Log:
Easily track settings and save preferred profile into a USB drive.

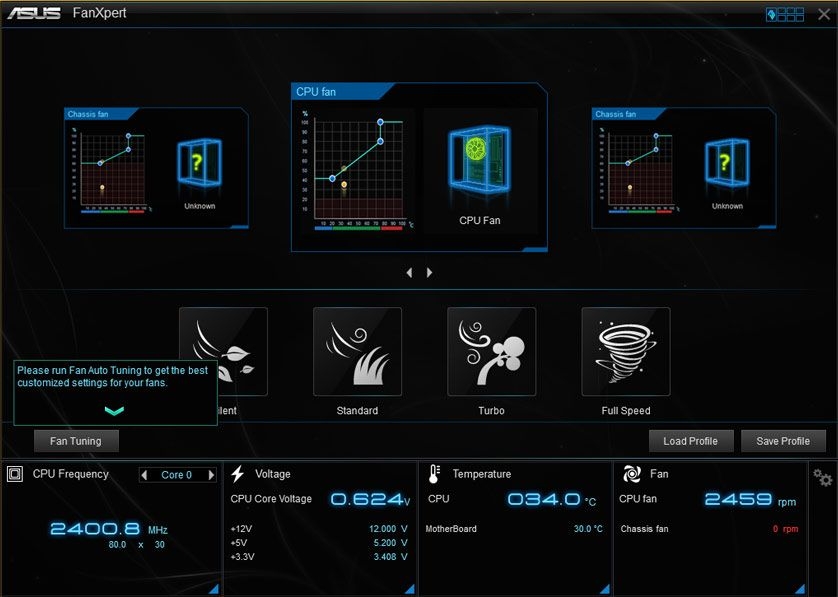

Active quiet and cool with Fan Xpert
ASUS Fan Xpert intelligently allows users to adjust both the CPU and chassis fan speed according to different ambient temperature , which is caused by different climate conditions in different geographic regions and system loading.Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.
Ultra-fast, always!
170% faster transfer speeds with USB 3.0 Boost
ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) USB 3.0 in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction.
PC DIY has never been this easy
We understand how you use your PC. From system setting and monitoring, and to firmware and hardware updates — we're all about making your life easier. That's why we never stop developing new and exciting DIY opportunities to make PC DIY easy, fun and free from hassle!
Settings
ASUS AI Suite 3 is a one-stop shop for adjusting your settings
Monitoring
ASUS Push Notice monitors your PC status on the go
BIOS updates
ASUS EZ Flash 2 updates your BIOS from USB outside the operating system
Specifications
- CPU
Intel® Celeron® Dual-Core N3050 SoC onboard Processors
- Memory
2 x U-DIMM, Max. 8GB, DDR3 1600/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
- Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/RGB/LVDS ports
- Supports HDMI with max. resolution 3840 x 2160 @ 30 Hz
- Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB
- Expansion Slots
1 x PCIe 2.0 x4 (x1 mode)
- Storage
Built-in Controller :
2 x SATA 6Gb/s port(s), dark brown,
Supports Intel® Smart Connect Technology
- LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
- Audio
Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *1
- USB Ports
Built-in Controller :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
GL852G USB Hub :
4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)
- Special Features
ASUS 5X Protection :
- ASUS LANGuard - Advanced LAN protection
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS Exclusive Features :
- AI Suite 3
- Anti-Surge
- Low EMI Solution
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
- Push Notice
- Operating System Support
Windows® 8.1 , 64bit
Windows® 7 , 64bit
- Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
2 x USB 2.0
1 x COM port(s)
3 x Audio jack(s)
- Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x TPM header
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x LVDS connector(s)
1 x Buzzer
- Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
- BIOS
64
Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.8, ACPI
5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My
Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut
functions and ASUS DRAM SPD (Serial Presence Detect) memory information
- Manageability
WfM 2.0, DMI 2.0, WOL by PME, PXE
- Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
- Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
- Note
*1:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
**2: Please follow SOP in manual when installing Windows®7 64-bit and USB3.0 drivers.
