All stock codes associated to this product
PTEW640E, PT-EW640E, 2651481, 5025232787883
5,800 lm / WXGA / LCD
5,800 lm / WXGA / LCD
5,800 lm / WXGA / LCD

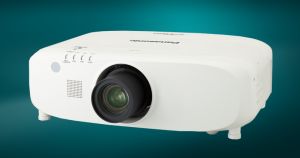

PT-EW640EThe Smart Choice for bright, flexible and Economical Projection
Benefits of the PT-EZ580 Series1. High Picture Quality Bright and quiet operation with up to 6,200 lm* at 29 dB** on Eco mode
High 5,000:1*** contrast performance with iris
WUXGA (1,920 x 1,200) resolution for brilliant Full HD images (PT-EZ580/L)
Daylight View Basic Function to correct images for clear projection in well-lit environments
Picture-in-Picture and Side-by-Side modes for simultaneous viewing of multiple sources
DICOM Simulation mode**** for medical presentations and training
Color Adjustment Function corrects variations between individual units set up for simultaneous projection
2. Low TCO and easy maintenanceExtended lamp replacement cycle of up to 4,500 hours*****
Reusable Eco Filter (17,000 hours),****** sealed optics, and dust-resistant cabinet
Easy access to lamp and filter for maintenance
Economical 335 W lamp draws just 0.3 W on Standby in Eco mode
Intelligent Lamp Control automatically controls brightness to reduce overall power consumption
Eco Management button on remote gives quick access to a range of Eco functions
3. System flexibilityDIGITAL LINK (based on HDBaseTâ„¢ technology) and DisplayPort single-cable connections*******
Powered lens shift, zoom, and focus via remote control.
Wide range of optional lenses are interchangeable with PT-EZ770 Series
Horizontal/vertical and corner keystone correction
Emulation function compatible with existing control systems when replacing legacy Panasonic and Sanyo projectors
Compatible with PJLinkâ„¢, AMX, Extron, and Crestron Connectedâ„¢ control systems
Mechanical lens shutter******** prevents distracting light leakage when on Standby
Direct Power Off function enables safe projector shutdown via breaker switch
Anti-theft features include a customizable startup logo, password protection, and security bar
Specifications
|
Audio
|
|---|
|
Number of Speakers:
|
1
|
|
Speaker Output Mode:
|
Mono
|
|
Speaker Output Power:
|
10 W
|
|
General Information
|
|
Brand Name:
|
Panasonic
|
|
Manufacturer Part Number:
|
PT-EW640E
|
|
Manufacturer Website Address:
|
https://www.panasonic.com
|
|
Manufacturer:
|
Panasonic
|
|
Marketing Information:
|
High Picture Quality
Vivid Pictures in Bright Environmen
With
up to 6,200 lm of brightness, the PT-EZ580 Series serves up brilliant,
punchy images even with the lights on. Text is sharp and clearly legible
while graphics, photos, and video images are reproduced with a clean
and natural vibrancy.
High Contrast Performance with Iris Expect
dazzling highlights and inky blacks with a high contrast ratio of
5,000:1 assisted by an iris, which alters brightness according to the
scene or image.
|
|
Product Model:
|
PT-EW640
|
|
Product Name:
|
PT-EW640 LCD Projector
|
|
Product Series:
|
PT-EZ580
|
|
Product Type:
|
LCD Projector
|
|
|
|
Contrast Ratio:
|
5,000:1
|
|
Graphic Mode:
|
WXGA
|
|
Horizontal Keystone Correction:
|
-30°/+30°
|
|
Native Aspect Ratio:
|
16:10
|
|
Native Resolution:
|
1280 x 800
|
|
Standard Mode Brightness:
|
5800 lm
|
|
Throw Ratio:
|
1.7 to 2.8:1
|
|
Uniformity:
|
90%
|
|
Vertical Keystone Correction:
|
-40°/+40°
|
|
Interfaces/Ports
|
|
Audio Line In:
|
Yes
|
|
Audio Line Out:
|
Yes
|
|
Component Video:
|
Yes
|
|
Composite Video:
|
Yes
|
|
DVI:
|
Yes
|
|
DisplayPort:
|
Yes
|
|
HDMI:
|
Yes
|
|
Network (RJ-45):
|
Yes
|
|
Number of HDMI Ports:
|
1
|
|
VGA In:
|
Yes
|
|
VGA Out:
|
Yes
|
|
Lamp
|
|
Economy Mode Lamp Life:
|
4500 Hour
|
|
Lamp Power:
|
335 W
|
|
Lamp Type:
|
UHM
|
|
Normal Mode Lamp Life:
|
4000 Hour
|
|
Number of Lamps:
|
1
|
|
Miscellaneous
|
|
Application/Usage:
|
Business
|
|
Package Contents:
|
- PT-EW640 LCD Projector
- Power Cord with Power Cord Holder
- 1 x Wireless/Wired Remote Control Unit
- 2 x Batteries for Remote Control (AAA/R03/LR03 type)
- 1 x Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software)
|
|
Network & Communication
|
|
Ethernet Technology:
|
Fast Ethernet
|
|
Physical Characteristics
|
|
Depth:
|
445 mm
|
|
Form Factor:
|
Ceiling Mountable
|
|
Height:
|
177 mm
|
|
Weight (Approximate):
|
10.60 kg
|
|
Width:
|
530 mm
|
|
Power Description
|
|
Input Voltage:
|
120 V AC
|
|
|
230 V AC
|
|
Operating Power Consumption:
|
575 W
|
|
Standby Power Consumption:
|
400 mW
|
|
Projection Lens
|
|
Maximum Diagonal Image Size:
|
10.16 m
|
|
Maximum Lens Aperture:
|
F/2.3
|
|
Maximum Projection Distance:
|
24.26 m
|
|
Minimum Diagonal Image Size:
|
1016 mm
|
|
Minimum Lens Aperture:
|
F/1.7
|
|
Minimum Projection Distance:
|
1.37 m
|
|
Optical Zoom:
|
1.7x
|
|
Technical Information
|
|
Platform Supported:
|
PC
|
|
Projection Method:
|
Ceiling
|
|
|
Front
|
|
|
Rear
|
|
Video
|
|
Input Scan Format:
|
1080p
|
|
Output Scan Format:
|
720p
|
|
Video Signal Format:
|
NTSC
|
|
|
PAL
|
|
|
SECAM
|
|
Video Signal Standard:
|
HDTV
|
