ASUS B150 PRO Gaming/Aura Motherboard
  • LGA1151, DDR4-2133(4), M.2(1), 1xPCI-E 3.0x16, SATA-III(6), GigLAN, 8CH-HD Audio, USB3.1/3.0/2.0, VGA, HDMI, ATX

IMG 1 of 1
No Longer Available
Part Number:
403731
(?) Brand:
ASUS Web Site
Manuf No:
ASUS-90MB0PF0-M0UAY0
ASUS90MB0PF0M0UAY0
Shipping Weight:
2.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
ASUS90MB0PF0M0UAY0, ASUS-90MB0PF0-M0UAY0

Overview

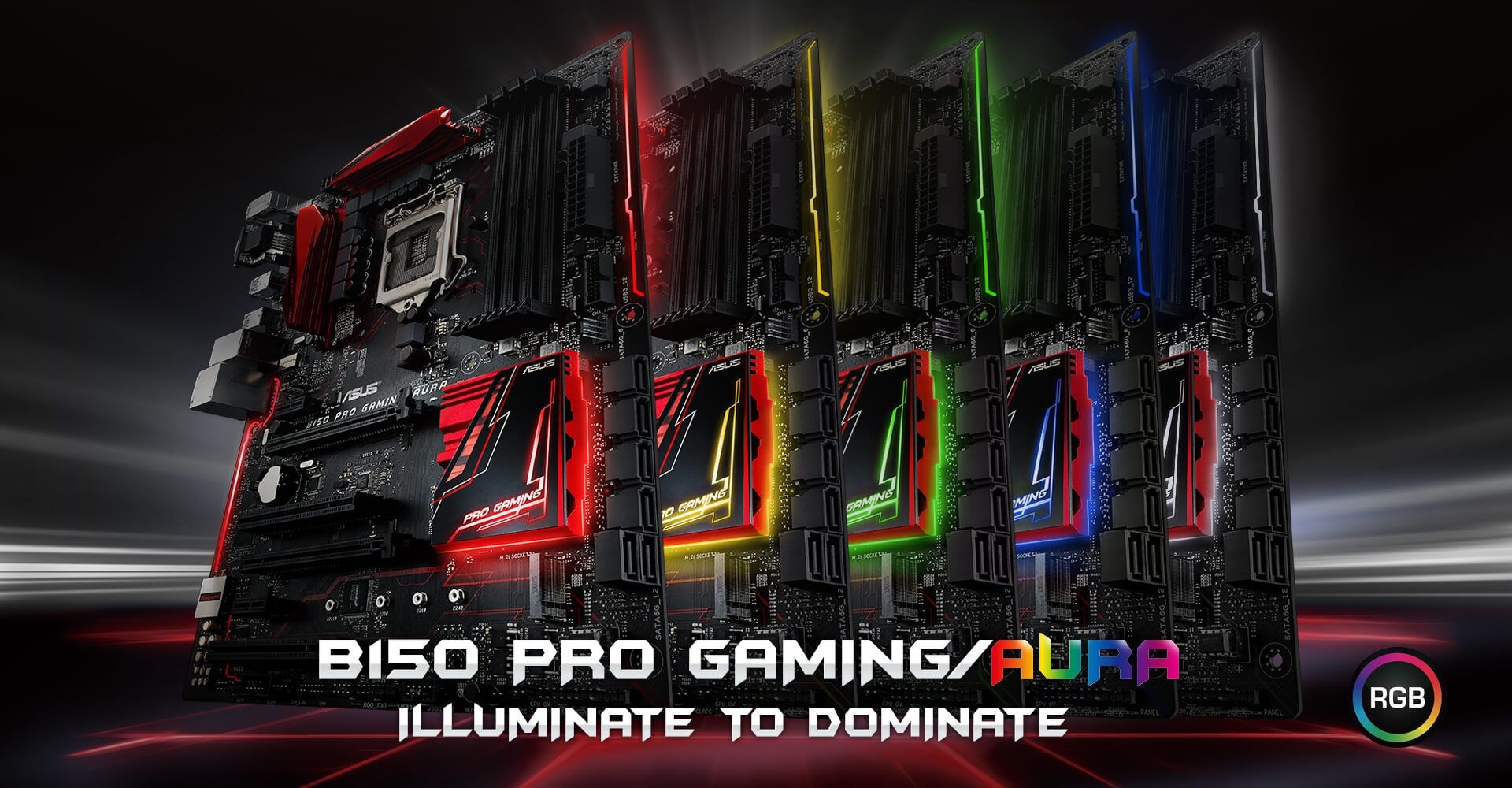

Value-packed ATX gaming board with RGB LED illumination

  • LGA1151 socket for 6th-genereation Intel Core i7 / Core i5 / Core i3, Pentium and Celeron processors
  • Dual-channel DDR4 2133 support
  • SupremeFX: Flawless audio that makes you part of the game
  • Sonic Radar ll: Scan and detect your enemies to dominate
  • Intel Gigabit Ethernet, LANGuard and GameFirst technology: Top-speed protected networking
  • RAMCache: Speed up your game loads
  • Gamer's Guardian: Highly-durable components and smart DIY features
  • USB 3.1 Type-A/C and M.2: Ultra-speedy transfers for faster gaming

  • CPU
    Intel Socket 1151 for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
    Supports Intel 14 nm CPU
    Supports Intel Turbo Boost Technology 2.0
    * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel B150
  • Memory
    4 x DIMM, Max. 64GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor- Intel HD Graphics support
    Multi-VGA output support : HDMI/RGB ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 1024 MB
    Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
  • Multi-GPU Support
    Supports AMD Quad-GPU CrossFireX Technology
    Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 (x16 mode, )
    1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
    2 x PCIe 3.0/2.0 x1
    2 x PCI
  • Storage
    Intel B150 chipset :
    1 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA &IE SSD)*2
    6 x SATA 6Gb/s port(s),
  • LAN
    Intel I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
    Anti-surge LANGuard
  • Audio
    SupremeFX 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    - High quality 115 dB SNR stereo playback output
    Audio Feature :
    - SupremeFX Shielding Technology
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar II
  • USB Ports
    ASMedia USB 3.1 controller :
    1 x USB 3.1 port(s) (Type-A)
    ASMedia USB 3.1 controller :
    1 x USB 3.1 port(s) (Type-C, Reversible)
    Intel B150 chipset :
    6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
    Intel B150 chipset :
    6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
  • Special Features
    Gamer's Guardian:
    - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
    - DRAM Overcurrent Protection
    - Stainless Steel Back I/O
    - Highly Durable Components
    - DIGI+ VRM
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger+
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - USB 3.1 Boost
    - Disk Unlocker
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert 3
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    - Push Notice
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Media Streamer
    RAMCache
  • Operating System Support
    Windows 10 , 64bit
    Windows 8.1 , 64bit
    Windows 7 , 32bit/64bit
  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    1 x USB 3.1 (red)Type-A
    1 x USB 3.1 Type-C
    4 x USB 3.0
    2 x USB 2.0
    1 x Optical S/PDIF out
    5 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA &IE SSD)
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    3 x Chassis Fan connector(s) (3 x 4 -pin)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Thermal sensor connector(s)
    1 x CPU OV
    1 x Clear CMOS jumper(s)
    1 x Water Pump header (4-pin)
    1 x ROG extension (ROG_EXT) header(s)
    1 x 14-1 pin TPM connector
  • Accessories
    User's manual
    I/O Shield
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x pack of cable tie
    1 x Supporting DVD
    1 x 12 in 1 Cable Label (s)
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,
    CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 3.0, WOL by PME, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    ASUS EZ Update
    Anti-virus software (OEM version)
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1:When PCIE x16_2 is occupied by x4 or faster devices, PCIE x1_1 and PCIE x1_2 will be disabled.
    *2:When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.

  • Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
  • *Precise specifications and features vary by model . Please refer to the specification page
  • The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
  • Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.
