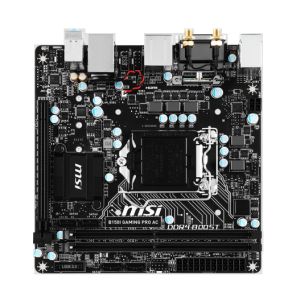

B150I GAMING PRO AC

• Supports 6th Gen Intel® Coreâ„¢ / Pentium® / Celeron® processors for LGA 1151 socket
• Supports DDR4-2133 Memory
• DDR4 Boost: Give your DDR4 memory a performance boost
• Turbo M.2 32Gb/s: Supports 3 sizes of M.2 SSDs, on the back of the motherboard
• SATA 6Gb/s + USB 3.1 Gen 1
• GAMING LAN: The best online gaming experience with lowest latency
• Wi-Fi 802.11ac, Bluetooth 4.2, Supports Intel® Wireless Display
• Audio Boost: Reward your ears with studio grade sound quality
• Military Class 4: Top Quality & Stability
• Guard-Pro: Improved Protection and Power Efficiency
• OBS Streaming software: Share your gaming achievements with the world!
• Game Boost: Generate more FPS in games with 1 push of a button
• DPC Latency Tuner: Optimize to get a smooth audio/video playback experience
• Overvoltage Protection:Prevent Unforeseen Damage
• GAMING Hotkey: Launch your favorite games with a single button
• Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font
• SteelSeries Certified: Optimized for SteelSeries gaming gear
• GAMING CERTIFIED: 24-hour on- and offline game testing by eSports players for the best gaming experience

Overview

GAME IN STYLE

Each game demands different skills, each gamer selects, customizes and levels their own gaming character. Why stop there? MSI Performance GAMING motherboards allow you to fully customize & personalize your gaming PC to any color you want while delivering top performance for a great gaming experience.

Unmatched memory performance and stability

DDR4 Boost

With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.

Dominate the game with lowest latency

Get ready to crush your enemies on the battlefield with MSI® GAMING LAN, featuring carefully selected components to ensure the best online gaming experience without lag.

Gaming optimized bandwidth management

Dedicated to giving you the best online gaming experience with optimized traffic prioritization and low latency, MSI GAMING LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games.

MSI GAMING LAN Manager

Automatically prioritizes games above other applications
Allows you to change applications' traffic priority
Allows you to customize you to customize bandwidth for each application

INTEL® WI-FI AC & BLUETOOTH

The MSI® GAMING motherboards come with an easily unpluggable Intel® Wi-Fi / Bluetooth antennas. The support of 802.11 AC and Bluetooth 4.2 ensures that you have the fastest available transfer speed.

Share your Screen with Intel® Wireless DisPlay (Intel® WiDi) Intel® WiDi for Home or Pro WiDi for Business allows you wirelessly send movies, photos, presentations, and more from MSI’s GAMING motherboard to an HDTV.

Studio grade sound with AUDIO BOOST

With Audio Boost we're delivering the highest sound quality through the use of premium quality audio components. That way, you can enjoy breathtaking, crystal clear sound and music through 6-channel Audio or high impendence headphones and truly dominate the game.

Isolated Audio PCB

Audio Boost acts like a dedicated soundcard by physically isolating the audio circuitry to give you a more clear audio signal.

Chemi-Con Audio Capacitors

Delivering high fidelity crystal clear sound with exceptional acoustics and realism.

Separated Left/Right Audio Layers
Separated Audio Layers

Equal and perfect sound quality for left & right channel audio through the use of seperated layers in the PCB.

Anti-popcorn Noise

Audio Boost protects your ears against annoying loud popping sounds when you plug devices in or out or turn your PC on/off.

5.1 Audio Jacks
7.1 via front

With high quality audio connectors you get the best possible signal output with less chance of distortion.

Front Dedicated Headphone Out

Convenient use of the front panel audio output while retaining high quality amplified sound.

TUNE YOUR PC’S RESPONSIVENESS

MSI® DPC Latency Tuner is a convenient tool that helps you to optimize your PC settings to get a smooth audio/video playback experience and a fast responding system.

BEFORE

Significant lag in responsiveness

AFTER

ow response times,Superfast system

GAME BOOST

Overclock your system instantly and generate more FPS in games with 1 push of a button using Game Boost! You can also easily enable XMP using the XMP button in Click BIOS.

Specifications

Socket
1151

CPU (Max Support)
i7

Chipset
Intel® B150 Chipset

DDR4 Memory
2133 MHz

Memory Channel
Dual

DIMM Slots
2

Max Memory (GB)
32

PCI-Ex16
1

PCI-E Gen
Gen3

SATAIII
4

M.2 port
1

LAN
10/100/1000*1

USB 3.1 ports(Front)
2(Gen1)

USB 3.1 ports (Rear)
2(Gen1)

USB 2.0 ports (Front)
2

USB 2.0 ports (Rear)
4

Audio ports (Rear)
2x Realtek® ALC887 Codec

HDMI
1

DVI
1

DirectX
DX12

Form Factor
Mini-ITX

CPU

Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151

Chipset

Intel® B150 Chipset

Main Memory

2 x DDR4 memory slots, support up to 32GB
Supports DDR4 2133 MHz *
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
Please refer to www.msi.com for more information on compatible memory.
DDR4 2133 MHz and higher memory modules will only run at maximum of DDR4 2133 MHz on XMP mode due to Intel® chipset limitation.

Slots

1 x PCIe 3.0 x16 slot

Onboard Graphics

1 x HDMIâ„¢ port, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

Storage

Intel® B150 Chipset
4 x SATA 6Gb/s ports
1 x M.2 slot
supports PCIe 3.0x4 standard, 4.2cm/6cm/8cm length M.2 PCIe-interface SSD cards
Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2 Host Card.*
The Turbo U.2 Host Card is not included, please purchase separately.

USB

Intel® B150 Chipset
4x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connectors)

Audio

Realtek® ALC887 Codec
7.1-Channel High Definition Audio

LAN

1x Realtek® RTL8111H Gigabit LAN controller

WLAN / Bluetooth

Wi-Fi/ Bluetooth® expansion module with Intel® Dual Band Wireless-AC 8260 chip
Supports Wi-Fi 802.11 a/b/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x Front panel connectors
1 x Serial Port connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper

Back Panel I/O Ports

1 x PS/2 keyboard/ mouse combo port
4 x USB 2.0 ports
1 x DVI-D port
2 x USB 3.1 Gen1 ports
1 x HDMIâ„¢ port
1 x LAN (RJ45) port
3 x audio jacks

Dimension

6.7 in. x 6.7 in. (17cm x 17 cm)
Mini-ITX Form Factor

Mounting

4 mounting holes
