All stock codes associated to this product
PSTPG1050DPCPAUP, PS-TPG-1050DPCPAU-P
Overview

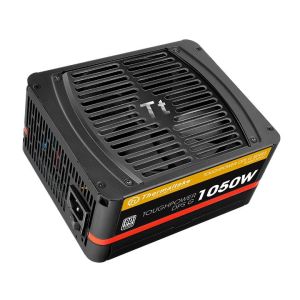

The Thermaltake Toughpower DPS G Platinum Series are smart power supply units
that incorporate various high-tech components, leading technology and
Eco-friendly commendations, featuring 80 PLUS Platinum certification with a
full-modular that always accommodate any mainstream build under any
circumstance.
The combination of Toughpower DPS G Platinum Series and three intelligent
platforms DPS G PC APP 2.0, DPS G Smart Power Management (SPM) Cloud 1.0, and
DPS G Mobile APP 1.0 helps users not just monitor smart power supply units, but
also save the energy, reduce CO2 emission, and eventually protect the Earth.
What is Smart Power Management (SPM)?
Thermaltake would like to raise the awareness on global warming issue to all
PC DIY/ PC users through Smart Power Management (SPM) platform. SPM is a cloud
computing platform that tracks and analyzes PC electricity consumption, allows
user to observe and learn their own energy consumption whereby alter their
behavior to achieve the goal of reducing CO2 emission together to contribute on
slowing global warming.

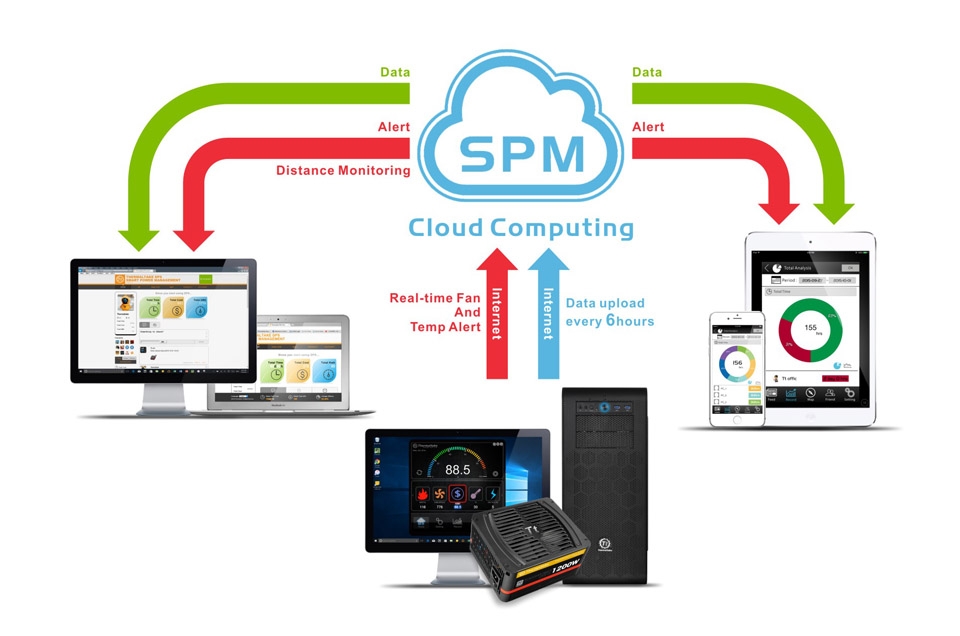

SPM Service Architecture
Smart Power Management (SPM)
Out of all the PSU monitoring software applications on the market,
Thermaltake DPS G Smart Power Management (SPM) is the most powerful, flexible,
universal and easy-to-use monitoring tool that provides digital solution
together with PC software and mobile application.
On the basis of DPS G Smart Power Management Cloud 1.0, users can access the
PSU/VGA/CPU data via PC or mobile devices. By uploading the data onto the smart
power management cloud every 6 hours, users are capable of monitoring multiple
PSUs via their mobile devices and achieving IT cost reduction while monitoring
the PSU. Additionally, users are capable of accessing data as well as doing PSU
management on different devices PC or mobile devices anytime anywhere.*

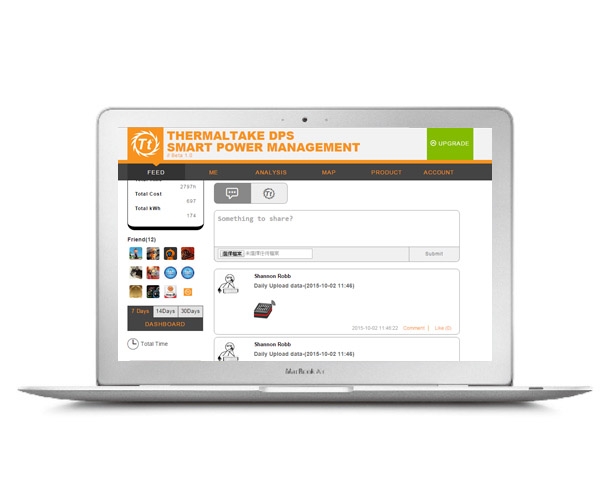

DPS G Smart Power Management Cloud 1.0: FEED vs. ME
Share your PSU data/status on FEED with friends and check your own messages
from your friends. Also, you can find Thermaltake official news releases and
product information on the FEED page.
Click on ME, users can monitor the status of PSU/VGA/CPU (data will be
uploaded per minute), including efficiency, fan speed, voltage, current, etc.
Zoom in to see more details of the graph, there is no limit on the number of
PSUs being monitored at any one time.*

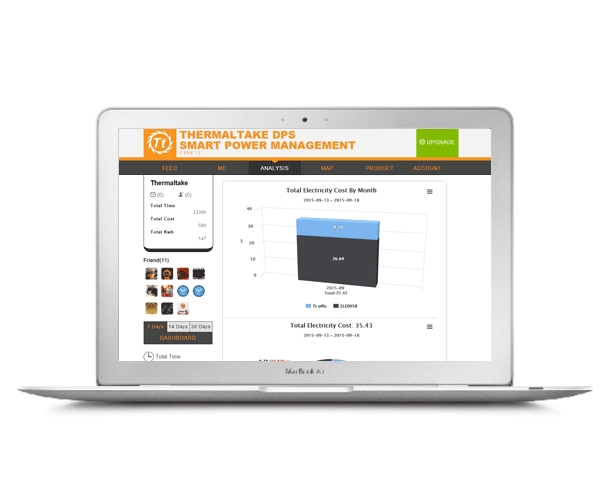

DPS G Smart Power Management Cloud 1.0: Analysis
Click Analysis, users can choose the specific PSU they want to monitor, or
click Select All to see all the digital power supplies. Detailed information
such as total time, total cost, and KWh can be monitored at once. Besides line
chart, users can also see the data in pie chart and bar chart.

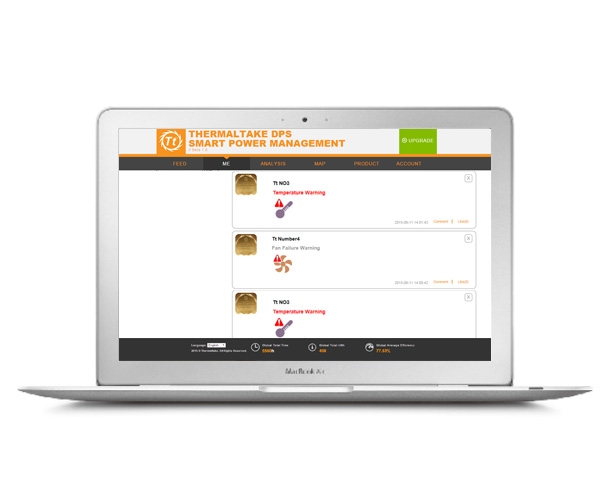

DPS G Smart Power Management Cloud 1.0: Warning Alert
Our real-time warning alert will be pushed to DPS G Smart Power Management
Cloud 1.0 immediately once the fan fails, PSU temperature is overheated (over
140/60), or voltage (over/under 5% of normal level) operate abnormally.
DPS G PC APP 2.0: CPU and VGA Monitoring
DPS G PC App 2.0 enables users to digitally monitor the key parameters of the
CPU and VGA, including efficiency, wattage, voltage and temperature while using
computer.*
DPS G PC APP 2.0: Warning Alert
DPS G PC APP 2.0 offers real-time warning alert when the fan speed,
temperature (over 140/60), and voltage (over/under 5% of normal level) operate
abnormally.

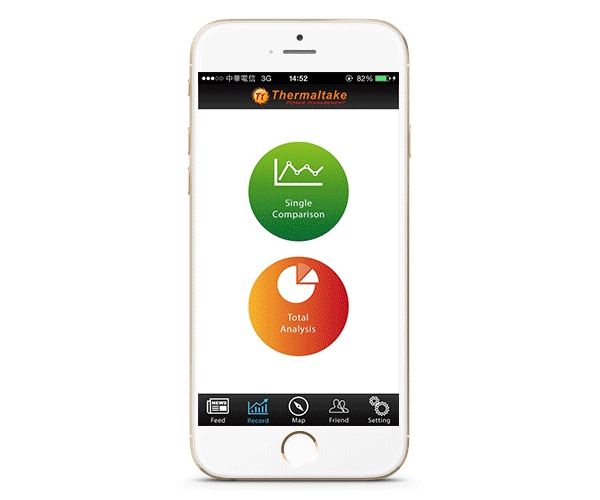

DPS G Mobile APP 1.0: Single Comparison
Users are capable of monitoring single or multiple PSUs anytime anywhere
while using DPS G Mobile APP 1.0.
Click Single Comparison, you can freely choose which PSU you want to monitor
in detail such as efficiency, fan speed, voltage, current and so on, or use
Select All to see all the data of digital power supplies. After you select the
data, the DPS G Mobile APP 1.0 shows how data change during a period of
time.
DPS G Mobile APP 1.0 is available on OS and Android devices:
DPS G Mobile APP 1.0: Total Analysis
Users are capable of monitoring single or multiple PSUs while using DPS G
Mobile APP 1.0.
Click Total Analysis, users can see the selected information of the PSU,
including Total Time, Total Cost, and KWh. Percentages of each item will be
showed clearly, either in line chart or pie chart.

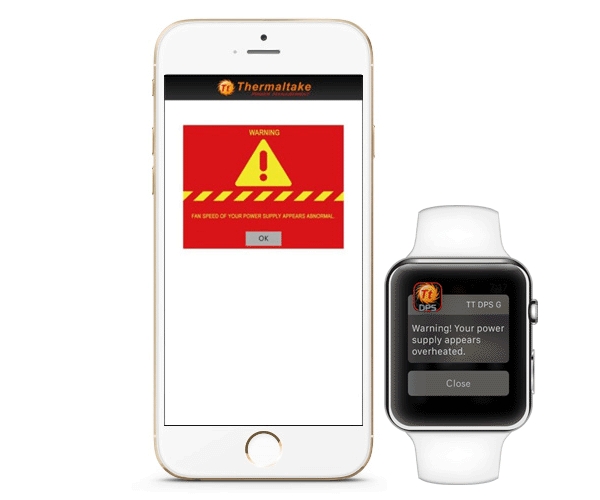

DPS G Mobile APP 1.0: Warning Alert
Our real-time warning alert will be pushed to your mobile devices immediately
once the fan fails, PSU temperature is overheated (over 140/60), or voltage
(over/under 5% of normal level) operate abnormally.

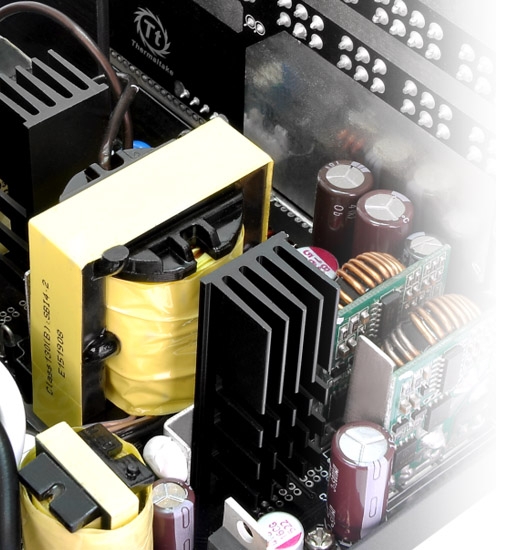

Core Component: MCU
Smart DPS G Series comes with a 32Bit Microcontroller Unit (MCU) from
Microchip Technology. The 32Bit Microcontroller Unit is a small computer on a
single integrated circuit containing a processor core, memory, and programmable
input/output peripherals. MCU can digitally control devices and processes, such
as automobile engine control systems and office machines.
80 PLUS Platium-Certified and Skylake-Ready
Toughpower DPS G Platinum Series Power Supply with DPS G software delivers up
to 91% efficiency under real-world load conditions, promising the lowest power
losses. Additionally, Toughpower DPS G Platinum Series has been optimized to
work with Intels new, sixth-generation Skylake processors to achieve maximum
energy savings.
Fully Modular Cable Design
Toughpower DPS G Platinum Series is full-modular power supply that offers
cable selection for users while powering the system at an advantageous voltage.
All new flat and low-profile cables allow for easy cable routing, reduced
clutter, and increased internal airflow.

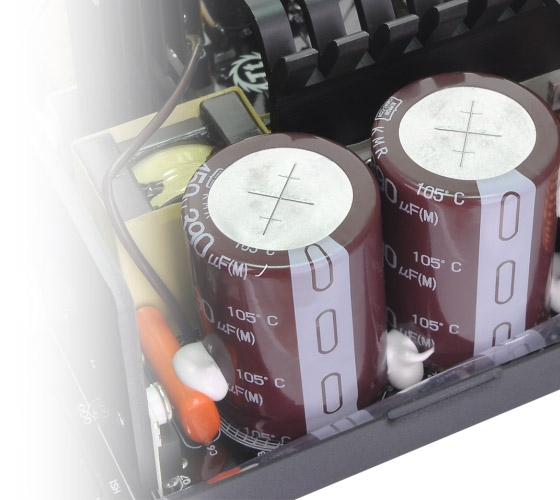

100% High Quality Japanese Capacitors
The Toughpower DPS G Platinum Series features Japanese brand capacitors,
which greatly improves the durability and offers the highest stability and
reliability. No more capacitor explosion and leakage.
High Current Single +12V Rail
Toughpower DPS G Platinum Series is equipped with a powerful single +12V
rail, please see the output specification below:
|
AC INPUT |
Input Voltage: 100V - 240V |
|
Input Current: 11A-5.5A |
|
Frequency: 60Hz - 50Hz |
|
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5Vsb |
|
Max Output Current |
25A |
22A |
70A |
0.3A |
3.0A |
|
Max Output Power |
120W |
840W |
3.6W |
15W |
|
Continuous Power |
850W |
*Disclaimer:
1. Due to the limitation of monitor ICs upon various motherboards and
VGA cards, some of the CPU and VGA parameters may NOT be available.
2.
The margin of error in the parameters of voltage, current, efficiency and etc
might occur while the loading of the PSU is under 20%.
Specifications
|
P/N |
PS-TPG-1050DPCP**-P |
|
Short P/N |
TPG-1050D-P |
|
Model |
TPG-1050DH5FEP |
|
Type |
Intel ATX 12V 2.31 & SSI EPS 12V 2.92 |
|
Max. Output Capacity |
1050W |
|
Peak Output Capacity |
1260W |
|
Color |
Black |
|
Dimension |
150mm(W) x 86mm(H) x 180mm(L) |
|
PFC Power Factor
Correction |
Active PFC |
|
Power Good Signal |
100-500 msec |
|
Hold Up Time |
> 16ms at 75% load |
|
Input current |
12A - 6A |
|
Input Frequency Range |
60Hz - 50Hz |
|
Input Voltage |
100V - 240V |
|
Operating Temperature |
0 to +50 |
|
Operating Humidity |
10% to 90%,non-condensing |
|
Storage Temperature |
-20 to +60 |
|
Storage Humidity |
5% to 95%, non-condensing |
|
Cooling System |
14cm dual ball bearing Fan: 1500R.P.M. 10% |
|
Efficiency |
MEET 80 Plus PLATINUM at 115Vac input. |
|
MTBF |
120,000 hrs minimum |
|
Safety Approval |
UL/ Bauart Mark+CB/ FCC/ CE/ EAC |
|
PCI-E Connector |
PCI-E 6+2pin X 8 |
