Gigabyte GA-X99P-SLI (Rev. 1.0) Motherboard

GA-X99P-SLI (Rev. 1.0)

Intel® X99 Chipset

Overview

World's 1st USB-IF Certified Intel® USB 3.1 Controller with USB Type-C™
PCIe Gen3/Gen2 x4 M.2 interface with up to 32Gb/s Data Transfer (PCIe NVMe SSD support)
Supports New Intel® Core™ i7 Processor Extreme Edition
Support for DDR4 XMP up to 3333MHz
Genuine All Digital Power Design with IR Digital PWM & IR PowIRstage® ICs
4-Way Graphics with Premium PCIe Lane
Realtek ALC1150 115dB SNR HD Audio with built-in Rear Audio Amplifier
Independent Right and Left Audio Channel PCB Layers
High-end Nichicon Audio Capacitors
Audio Noise Guard with Multi-Color Choices of LED Trace Path Lighting
All Stainless Steel connectors on rear panel
SATA Express support for up to 10 Gb/s data transfer
GIGABYTE UEFI DualBIOSâ„¢
Long lifespan Durable Blackâ„¢ Solid caps
APP Center including EasyTuneâ„¢ and Cloud Stationâ„¢ utilities
Safer Design Around Screw Mounting Holes
Feature Upgrade Possible support



GIGABYTE Ultra Durable â„¢ Motherboards

GIGABYTE X99 motherboards support New Intel® Core™ i7 Processor Extreme Edition, Intel® first 8 core desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.

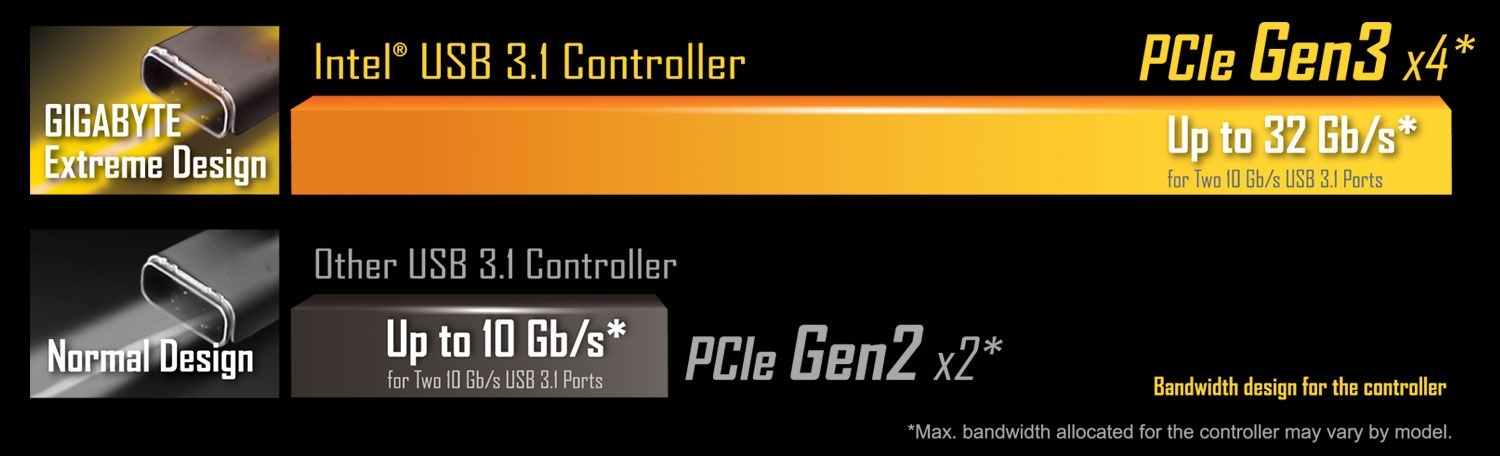

The Intel® USB 3.1 controller utilizes 4 PCIe Gen3 lanes, offering up to 32 Gb/s total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Standard-A connector for better compatibility over a wider range of devices.



Connecting the Future - USB Type-C

The World's Net Universal Connector

Reversible USB Type-C with USB3.1

The USB Type-Câ„¢ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed and DisplayPort 1.2 support to connect 4K monitors. Powered by the Intel® controller, this little port is the better USB Type-Câ„¢.

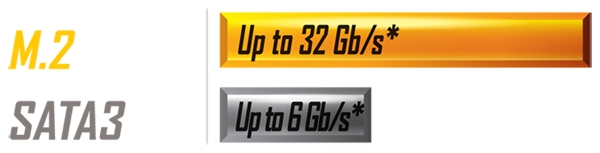

Fast Onboard Storage with 32Gb/s M.2

GIGABYTE M.2 solution offers considerably faster storage performance and support for PCIe NVMe SSD devices.

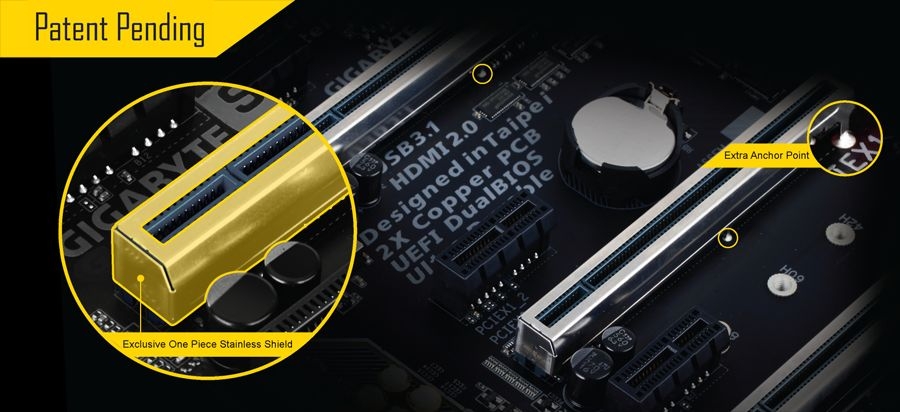

Industry Leading Ultra Durableâ„¢ PCIe Metal Shielding

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

LED Trace Path with Multi-Color Choices

Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the LED trace path lighting. A total of 7 colors are available to make your system appearance unique!

Feature Upgrade Possible

The packing includes Two cables for further feature upgrade:

DisplayPort to mini-DisplayPort
DisplayPort to DisplayPort

Performance

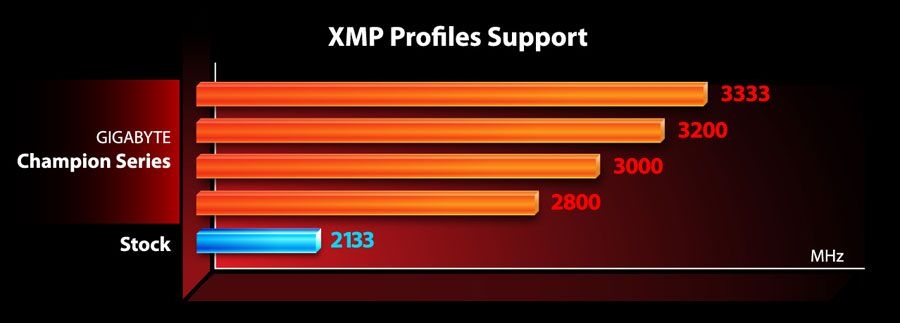

Support for DDR4 XMP up to 3333MHz

DDR4 memory modules are available at a stock frequency of 2133MHz, but memory vendors encode XMP profiles which can automatically modify the frequency and timings of the supported memory modules to work in par with your CPU. With the X99 Champion Series, GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 3333MHz.

What is XMP

The synchronization of the memory modules with the CPU is crucial for good performance of your system. DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.

XMP Profile support may vary depending on memory module. Please refer "Memory Support List" for more information.

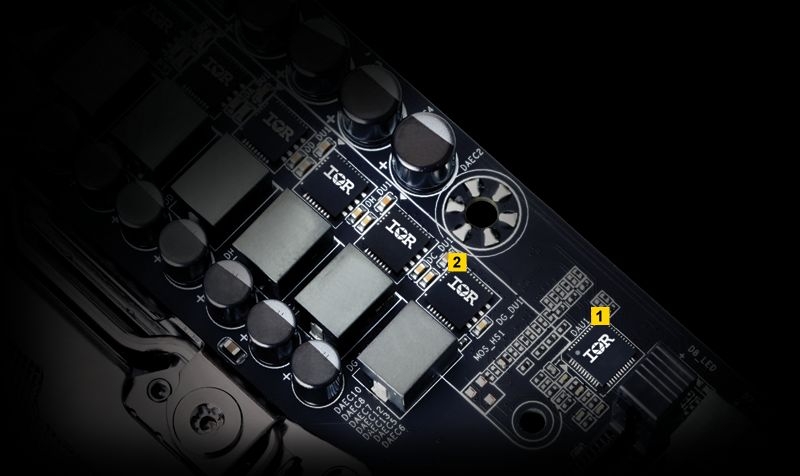

Genuine All Digital Power Design

GIGABYTE X99 series motherboards use an all digital CPU power design from International Rectifier® which includes both 4th Generation digital PWM Controllers and industry-leading 3rd Generation PowIRstage® controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new Intel® Core™ i7 Extreme Edition CPUs.

IR Digital PWM & IR PowIRstage® ICs

This new generation of IR® digital power controllers and PowIRstage® ICs feature Isense technology, which provide more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowerIRstage® ICs, preventing the overheating of each individual PowerIRstage®, resulting in longer lifespan and better reliability.



Single Package Design

IR® has leveraged it's world class packaging technology developed for the DirectFET®, improving the thermal capability and layout of the PowIRstage® significantly over that of other MCM packages.

Single Package Design* VS. Multi-Chip Design

Other MOSFET layout implementations use a multi-chip, side-by-side arrangement of the high and low side MOSFETs and driver ICs, taking up significant board real estate and creating more electrical leakage.
4-Way SLIâ„¢/4-Way CrossFireâ„¢ Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

Next Generation SATA Express Connector

GIGABYTE X99 series motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10Gb/s, considerably higher than SATA Revision 3 (6Gb/s), which won’t bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives.

High Definition Audio Design

The Realtek ALC1150 is a high-performance multi-channel high definition audio codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

High Quality audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

Independent Right and Left Audio Channel PCB Layers

Locating the right and left audio channels on separate PCB layers, GIGABYTE X99 series motherboards are able to eliminate channel crosstalk and maintain the best audio quality.

Intel® GbE LAN with cFosSpeed

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency, maintaining low ping times to deliver better responsiveness in a crowded LAN environments.
Durable

Server Level Chokes

GIGABYTE X99 series motherboards feature Server Level Chokes.

Server level reliability.

High current capacity.

New design reduces heat created by power loss and provides efficient power delivery to CPU VRM area.

Long Lifespan Durable Blackâ„¢ Solid Caps

GIGABYTE X99 series motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. This provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. With ultra-low ESR no matter how high the CPU loading, these exclusive capacitors also come in customized jet black, exclusively on GIGABYTE X99 series motherboards.

Gold Plated CPU Socket

GIGABYTE X99 motherboards come equipped with gold plating for the CPU socket, 4 PCIe slots and over the 8 DIMM slots, which means that enthusiasts can enjoy better connectivity, absolute reliability and longevity for the diverse connectors overtime, without having any concerns about corroded pins and bad contacts.

2x Copper PCB Design(2 oz Copper PCB)

GIGABYTE’s exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

Safe

GIGABYTE Patented DualBIOSâ„¢ Design

GIGABYTE DualBIOS™ means that you motherboard has both a ‘Main BIOS’ and a ‘Backup BIOS’, making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

Safer Design Around Screw Mounting Holes

Don't worry anymore about accidental damage while mounting your motherboard to you chassis. GIGABYTE X99 motherboards all feature a wider copper ground pad and onboard components free area around the PCB screw mounting holes. This exclusive design reduces the chances of damaging any surrounding onboard components during the PC assembly process. Bigger copper ground pads also provide the added benefit of lower EMI disturbance for reduced noise interference across your system.

The above photos are for reference only.

Intel® Core™ i7 Extreme Edition CPUs(Haswell-E)

Intel® Core™ i7 Extreme Edition Processors are Intel’s first 8 core desktop CPUs and is the first to support DDR4 memory. These next generation 22nm CPUs delivers greater performance and energy efficiency as well as the industry's highest level of discrete graphics performance by sporting 40 PCIe Gen.3 lanes, which GIGABYTE X99 motherboards are able to take full advantage of, delivering bandwidth totaling 320 Gb/s for the most demanding gamers or graphics intensive creation tasks such as video editing. On top of that, Intel® Core™ i7 Extreme Edition CPUs deliver 8 core (16 threaded) multitask processing, higher frequencies, as well as larger cache size.

Additionally, GIGABYTE X99 users can draw even more performance out of their Extreme Edition CPUs, as they are fully unlocked for overclocking. With enhanced overclocking oriented options available on all GIGABYTE X99 series motherboards, users will be able to take full advantage of all the performance potential of Intel Extreme Edition CPUs.

CPU core count and PCIe bandwidth varies by CPU model.

4 Channel DDR4

The next generation of DRAM is here with DDR4. Featuring stock frequencies starting at 2133 MHz, DDR4 delivers up to 20% less energy consumption and twice as much density as the previous generation DDR3. DDR4 can help GIGABYTE X99 users to load their programs faster, increase responsiveness of their system and help them to handle heavy data tasks in a flash. GIGABYTE X99 motherboards provide 4 Channel DDR4 memory support across the entire range, bringing exceptionally fast memory access.

GIGABYTE App Center Including EasyTuneâ„¢ and Cloud Stationâ„¢ Utilities

GIGABYTE APP Center

The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

Customized the APP Center's look and behavior according to your taste in the Preferences Menu.

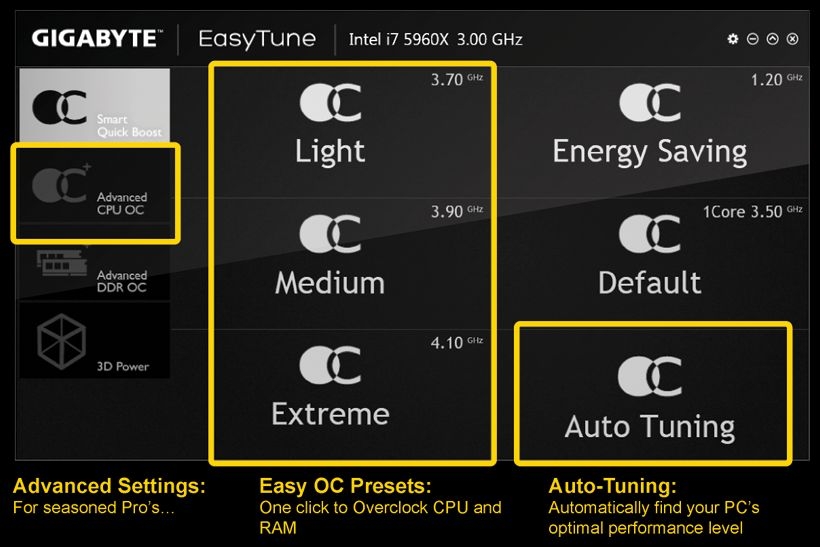

EasyTuneâ„¢

GIGABYTE EasyTuneâ„¢ is a simple and easy-to-use Windows-based software application that allows users to fine-tune their system settings.

Adjust system and memory clocks and voltages in a Windows environment.
System-related information display without the need to install additional software.



Smart Quick Boost provides users with different levels of CPU frequency to choose to achieve desired system performance.

Advanced CPU OC allows users to set the CPU’s base clock, frequency and voltages, and integrated graphics frequency.

Advanced DDR OC allows users to set the memory clock with XMP profile support.

3D Power allows users to change power phase, voltage, and frequency settings.

GIGABYTE Cloud Stationâ„¢ Server is composed of several GIGABYTE's unique apps that allow your smart phone/tablet/PC devices to communicate, share resources, and control desktop PCs via wireless connection.

HomeCloud allows users to share the files between your smart phone/tablet device and computer or back up the files from the device to the computer.

HotSpot turns your computer into a virtual wireless access point and allows you to share your connection with your other wireless devices.

GIGABYTE Remote allows users to remotely control the mouse/keyboard/Windows Media Player on your computer from your smart phone/tablet device.

Remote OC allows users to remotely control their desktop PC with a powerful suite of software functions that Include overclocking and system tweaking, system monitoring plus the ability to also remotely power down/reset the PC when needed.

Auto Green is an easy-to-use tool that provides users with simple options to enable system power savings via a Bluetooth-enabled smart phone/tablet device. When the device is out of the range of the computer's Bluetooth receiver, the system will enter the specified power saving mode.

Specifications

CPU	Support for Intel® Core™ i7 processors in the LGA2011-3 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel® X99 Express Chipset
Memory	8 x DDR4 DIMM sockets supporting up to 128 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. 4 channel memory architecture Support for DDR4 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules Support for RDIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode) (Please refer "Memory Support List" for more information.)
Audio	Realtek® ALC1150 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	Intel® GbE LAN chips (10/100/1000 Mbit)
Expansion Slots	2 x PCI Express x16 slots, running at x16 (PCIE_1/PCIE_2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots. 2 x PCI Express x16 slots, running at x8 (PCIE_3/PCIE_4) * The PCIE_4 slot shares bandwidth with the PCIE_1 slot. When the PCIE_4 slot is populated, the PCIE_1 slot will operate at up to x8 mode. * When an i7-5820K CPU is installed, the PCIE_2 slot operates at up to x8 mode. (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Multi-Graphics Technology	Support for 4-Way/3-Way/2-Way AMD CrossFire™/NVIDIA® SLI™ technology * The 4-Way NVIDIA® SLI™ configuration is not supported when an i7-5820K CPU is installed. To set up a 3-Way SLI configuration, refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration."
Storage Interface	Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2/x1 SSD support) 1 x SATA Express connector 6 x SATA 6Gb/s connectors (SATA3 0~5) Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Only AHCI mode is supported when an M.2 PCIe SSD or a SATA Express device is installed. Chipset: 4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only (An operating system installed on the SATA3 0~5 ports cannot be used on the sSATA 0~3 ports.)
USB	Chipset: 4 x USB 3.0/2.0 ports (available through the internal USB headers) 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset+Renesas® USB 3.0 Hub: 3 x USB 3.0/2.0 ports on the back panel ?? Chipset+Intel® USB 3.1 Controller: 1 x USB Type-C™ port on the back panel, with USB 3.1 support 1 x USB 3.1 Type-A port (red) on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x PCIe power connector 1 x M.2 Socket 3 connector 1 x SATA Express connector 10 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling fan header (CPU_OPT) 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 3.0/2.0 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper
Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x DisplayPort In port 1 x USB Type-Câ„¢ port, with USB 3.1 support 1 x USB 3.1 Type-A port (red) 3 x USB 3.0/2.0 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	System voltage detection CPU/System/Chipset temperature detection CPU/CPU OPT/System fan speed detection CPU/System/Chipset overheating warning CPU/CPU OPT/System fan fail warning CPU/CPU OPT/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOSâ„¢ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS Ambient LED EasyTune EZ Setup Fast Boot Cloud Station ON/OFF Charge Smart TimeLock Smart Recovery 2 System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Smart Switch Support for Xpress Install
Bundle Software	Norton® Internet Security (OEM version) Intel® Smart Response Technology cFosSpeed
Operating System	Support for Windows 10/8.1 64-bit Support for Windows 7 32-bit/64-bit * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
