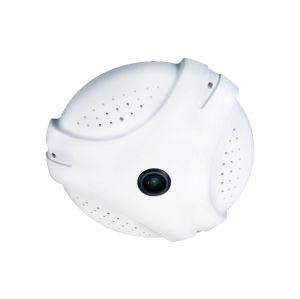

Mutek Panorama Indoor 2 Megapixel 360 PoE IP Camera
-
Provides 15 frames per second & up to 1440 by 1440 Full HD resolution
-
Dewarping the Image via Fisheye Correction Processor
-
Removable IR-cut Filter for Day & Night Function
-
WDR Enhancement for Visibility in Extremely Bright or Dark Environments
-
Two-way Audio Communication, built-in Microphone and Speaker
-
Comes with built-in MicroSD Card Slot, support SDHC & SDXC up to 64GB
- Built-in 802.3af Compliant PoE
Details
The Pano101 indoor 360 camera provides a professional single camera solution for commercial use. The camera is integrated with 2 Megapixel resolution sensor, equipped with f 1.25mm non-linear fisheye lens offers 360 degree de-warped image.
The camera can be configured to focus on almost any direction, and de-warping algorithms can be adjusted at 180 or 360 degree view depending on user's preferences. The sensor also comes with Wide Dynamic Range (WDR) and Removable IR-cut Filter to provide and record clear images in bright or dark environment.
Pano101 offers a professional and efficient solution for commercial, industrial, and public areas.
Features
-
15 fps@1440x1440 Full HD
-
Dewarping the Image via Fisheye Correction Processor
-
Removable IR-cut Filter for Day & Night Function
-
Real-time H.264, MPEG-4, and MJPEG Compression
-
ROI (Region of Interest) Provides Outstanding e-PTZ Function
-
Minimum 0.1 Lux for Night Vision
-
WDR Enhancement for Visibility in Extremely Bright or Dark Environments
-
Two-way Audio Communication, built-in Microphone and Speaker
-
Built-in MicroSD Card Slot, support SDHC & SDXC 64GB Maximum
- Built-in 802.3af Compliant PoE
-
ONVIF Compliant for Interoperability
Specifications
-
System Information
-
CPU: Multimedia SoC (System-on-Chip)
-
NOR Flash: 16MB
-
RAM: 512 MB
-
Camera Features
-
Maximum Resolution: 1440 x 1440
-
Lens Type: Fisheye Fix Lens
-
Focal Length: f=1.25 mm
-
Aperture: F= 2.0 General
-
Field of View: 180° (Horizontal/Vertical/Diagonal)
-
WDR Technology: WDR Enhanced
-
Day/Night: Removable IR-cut filter for day & night function
-
Minimum Illumination: 1.9 Lux @ F2.0 (Colour);0.1 Lux @ F2.0 (B/W)
-
Pan/Tilt/Zoom: ePTZ: 10x digital zoom
-
On-board Storage: Built-in MicroSD card slot, support SDHC / SDXC up to 64GB
-
Video
-
Compression: H.264, MJPEG & MPEG-4
-
Display Mode
-
360° Source View, 360° Broad View
-
180° Double Broad View
-
Triple View, Quad View
-
3 PTZ with Source View
-
Maximum Frame Rate
-
15 fps at 1440 x 1440
-
15 fps at 1600 x 1200
-
15 fps at 1280 x 1024
-
15fps at, 800 x 600, and 640 x 480
-
Maximum Streams: 3 simultaneous streams
-
S/N Ratio: Above 39 dB
-
Dynamic Range: 100 dB
-
Video Streaming: Adjustable resolution, quality and bitrate
-
Image Settings
-
Adjustable image size, quality and bitrate
-
Configurable brightness, saturation, exposure control, sharpness,
contrast, white balance, auto shutter control, auto gain control, noise
reduction, EV luminance control, flip & mirror, privacy masks, time
stamp, text overlay
-
Audio
-
Audio Capability: Audio input / output (full duplex)
-
Compression: G.711u
-
Interface:
-
Built-in microphone and speaker
-
External microphone input and Speaker out
-
Effective Range: 5 meters
-
Network
-
Users: Live viewing for up to 10 clients
-
Protocols: HTTP,HTTPS, TCP/ IP,IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, ARP,RTSP, RTP, UPnP, ONVIF(Profile S), Multicast
-
Interface: 10 Base-T / 100 BaseTX Ethernet (RJ-45)
-
ONVIF: Ver. 2.2
-
Intelligent Video
-
Motion Detection: Ten-Window video motion detection
-
Alarm and Event
-
Alarm Triggers:
-
Video motion detection
-
Manual trigger
-
Digital input
-
Periodical trigger
-
System boot
-
Recording notification
-
Alarm Events:
-
Event notification using digital output, HTTP, SMTP,FTP and NAS server
-
File upload via HTTP, SMTP, FTP and NAS server
-
General
-
Connectors:
-
Power Input:
-
Power Consumption:
-
Max. 5.1 W (DC 12V)
-
Max. 5.3 W (PoE)
-
Dimension: Diameter:196 x 57.3 mm
-
Weight: Net: 350g
-
Safety Certifications: CE, FCC Class B, LVD
-
Operating Temperature: 0C ~ 50C
-
Operating Humidity: 10% ~ 80%
-
System Requirements
-
Operating System: Microsoft Windows 10 / 8.1/8 / 7 / Vista / XP / 2000
-
Web Browser:
-
Mozilla Firefox 7 ~ 10
-
Internet Explorer 7, 8, 9, 10, 11
-
Chrome / Safari 4.0 or above
-
Other Players: VLC: 1.1.11 or above
-
Included Accessories: Quick installation guide, screws pack, software CD
