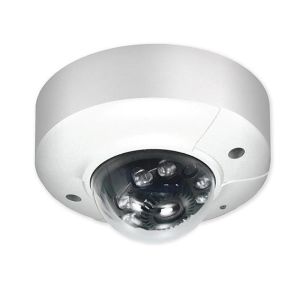

The IP3393PV2 is a durable PoE dome network camera, suitable for indoor
and outdoor use. It comes with several features including removable
IR-cut filter and IR illuminators effective up to 20m for superior image
quality. For protection against outdoor and harsh environments, the
camera is encased in an IP66 rated housing and weather-proof casing to
withstand rain and dust.
In addition, the durable metal housing can make it totally vandal proof. The IP3393PV2 comes in a compact design for a discreet appearance. It can be used in various environments, not only at home but also include offices, elevators, campus, chain stores and boutique stores. The IP3393PV2 is the ideal solution for your surveillance needs.
Features
-
5 Megapixel Colour CMOS Sensor
-
Built-in Removable IR cut Filter
-
H.264, MPEG-4 and MJPEG Compression
-
20 meters IR Distance
-
IP66 Weather Rating
-
Built-In Video Analytic
-
WDR Enhanced
-
Built-in 802.3af Compliant PoE
-
SD & SDHC card support
Specifications:
-
Image Sensor
-
1/2.5" 5 Megapixel Colour CMOS Sensor
-
Resolution: 2592 x 1944
-
Sensitivity: Day and night
-
Manual Pan-Tilt
-
Pan Range: 350°
-
Tilt Range: 53°~106°
-
Image Processing
-
Compression: H.264 High Profile/Main Profile/Baseline, MPEG-4 SP and MJPEG
-
Exposure Control: Auto
-
Auto White Balance: Yes (2500~7000K, 3 levels setting: Indoor,Auto(default), Outdoor)
-
Auto Gain Control: Yes
-
WDR: Yes (Digital WDR)
-
Text Overlay: Text and Date-time
-
Image overlay: Support JPG and Bitmap image format
-
Video Resolution and Frame rate:
-
5MP(2592 x 1920):15fps
-
QXGA(3MP) (2048 x1536):25fps
-
1080p (1920 x1080):30fps
-
SXGA (1280 x1024): 30fps
-
720p (1280 x 720): 30fps
-
D1 (720 x 480): 30fps
-
VGA (640 x 480): 30 fps
-
QVGA (320 x 240): 30 fps
-
QCIF (176 x 144): 30 fps
-
Multi-Stream: Yes
-
System
-
System Processor: TMS320DM368
-
System ROM: 128MByte NAND Flash
-
System RAM: 128MByte DDR SDRAM
-
Power: DC12V/POE
-
Power Consumption:IR on: 8 Watts max. IR off: 5 Watts max.
-
Operation: Temp: -5C~55C Humidity: 20%~85% non-condensing
-
Storage: Temp: -15C~60C Humidity: 0%~90% non-condensing
-
Certification: FCC/CE class B
-
Audio (Two-way)
-
Audio in: External Mic. In
-
Audio out: Line level out ;1 Vrms ; 3.5mm phone jack; Mono
-
Audio S/N ratio: More than 60dB
-
Audio Codec: G.711/AMR
-
Video Analytic Features
-
Object Classification: Yes (People, Vehicle)
-
Face Detection: Yes (Detection, Tracking)
-
Event Detection:
-
Intelligent Motion Detection
-
Camera Tampering
-
Trip Zone (Directionality)
-
Streaming Mata-Data
-
Object Counting: Yes (People, Vehicle)
-
Communication
-
Ethernet: One RJ45 port; IEEE 802.3u compliant 10/100 Mbps Fast Ethernet with Auto-MDIX
-
PoE: IEEE802.3af compliant
-
Supported Protocols: TCP/IP,IPV6, UDP, ICMP,DHCP,NTP,DNS,DDNS,SMTP,FTP,HTTP,HTTPs,Samba, PPPoE,UPnP, Bonjour, RTP,RTSP,RTCP, DLNA, ONVIF 2.0, ISCSI
-
LED and Button
-
Power LED: Green Colour
-
Link/act. LED: Red Colour
-
Reset button:
-
Push and Release bottom will be Reboot
-
Push and hold over 5 sec will be Factory reset
-
Others
-
BNC: BNC Connector(optional)
-
SD slot: SD & SDHC card support
-
Night Vision: 850nm IR LED, Colour or Black/White in night mode, Control by Auto mode (Light sensor) Manual mode or Schedule mode
-
IR Working Distance: 20m
-
Protection Rating: Vandal proof and Weather-proof IP66-rated housing
-
Terminal Block:
-
Ground (Common)
-
GPIO in #1
-
GPIO out #1
