GVR3552

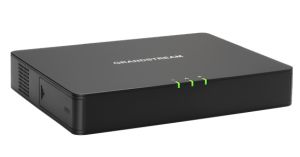

Network Video Recorder (NVR) supports recording of up to 16 Channel HD or 8 Channel FHD NVR
The GVR3552 Network Video Recorder (NVR) provides video recording, indexing, searching and video storage management for up to 16 IP video cameras with up to 4TB of storage, making it ideal for small businesses and residential users.
The GVR3552 Network Video Recorder (NVR) offers small to medium businesses and residential users a dedicated and reliable solution for centralized IP video surveillance recording and monitoring. It provides video recording, indexing, searching and video storag management for up to 16 IP video cameras to allow users to record and monitor their IP video surveillance network using one device. The GVR3552 can be viewed and managed by connecting it directly to a TV or computer monitor or through the web user interface. The GVR3552 supports all Grandstream IP Video surveillance cameras and IP Video Encoders/Decoders and can automatically detect these devices. Users can view the live feed of up to 4 cameras simultaneously and can save up to 4TB of video files on the device by easily connecting up to 2 hard drives (hard drives not included) using the easy to access hard drive tray.
FeaturesUp to 16 channels of 720p or 8 channels of 1080p HD audio/video real-time recording
Fully customizable recording rules; time-based, event based, manual or automatic
Automatic discovery of Grandstream IP Cameras
Up to 2 SATA 2.5” internal hard drives with maximum 4TB storage and RAID 0 or RAID 1 configurations
Complete security features including role based access control, event/system logs and hard drive content encryption
SpecificationVideo Recording
Up to 16 channels of 720p (1280x720) or 8 channels of 1080p (1920x1080)
Total Recording Rate
Up to 32 Mbps
Recording Modes
Continuous mode, record by schedule, event triggered or manual
Live View
4 channels of 720p or 2 channels of 1080p via HDMI or VGA output
Up to 16 channels simultaneous remote viewing via HTTP/HTTPS
Total Storage
Up to 4TB internally from 2 hard drives (hard drives not included)
RAID
RAID 0 or RAID 1 Support
Internal HDD
Up to 2x 2.5” SATA hard drives with maximum 4TB storage
IP Cameras Supported
Grandstream GXV36xx cameras, GXV35xx encoders/decoders, 3rd party ONVIF compliant cameras (pending)
Universal Power Supply
Input: 100~240V 50/60Hz
Output: 12V/3A 36W
Environmental
Operation: 0°C to 50°C
Storage: -20°C to 60°C (HDDs not included)
Humidity: 10% to 90% non-condensing
Physical
47.5mm (W) x 212mm (L) x 57mm (H)
Unit Weight: 840g
Package weight: 1100g
Mounting
Desktop or Wall Mount
