Gigabyte GA-B150N Phoenix-WIFI (Rev. 1.0) Motherboard
  • LGA1151, B150, 2xDDR4-2133, 1xPCI-Ex16 v3.0, 1xM.2, 4xSATA, GigLAN, 8Chl-HD, USB3.0, DVI, HDMI, WiFi, BT, Mini-ITX

IMG 1 of 1
No Longer Available
Part Number:
405235
(?) Brand:
Gigabyte Web Site
Manuf No:
GA-B150N-PHOENIX-WIFI
GAB150NPHOENIXWIFI
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
GAB150NPHOENIXWIFI, GA-B150N-PHOENIX-WIFI
GA-B150N Phoenix-WIFI (rev. 1.0)


Intel® B150 Chipset


Supports 6th Generation Intel® Core™ Processor
Dual Channel DDR4, 2 DIMMs
Fast USB 3.1 with USB Type-C™ -The World’s Next Universal Connector
11ac 867 Mbps dual band wireless connection + BLUETOOTH 4.2
PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
8-channel HD Audio with High Quality Audio Capacitors
Intel® GbE LAN with cFosSpeed Internet Accelerator Software
Audio Noise Guard with Ambient LED Trace Path Lighting
APP Center Including EasyTuneâ„¢ and Cloud Stationâ„¢ Utilities
GIGABYTE UEFI DualBIOSâ„¢ Technology



GIGABYTE Ultra Durable â„¢ Motherboards

GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.

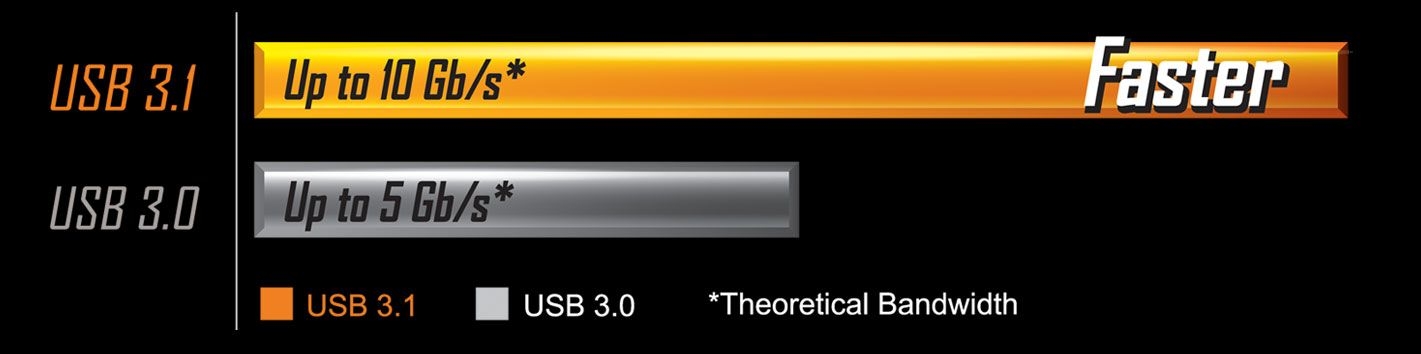

Fast USB 3.1 Solution

The latest USB 3.1 offers a staggering 10Gb/s transfer speed, 2x faster than USB 3.0 and backward compatibility with existing USB devices.




Connecting the Future - USB Type-Câ„¢: The World's Next Universal Connector

The USB Type-Câ„¢ port with USB 3.1 support is a robust and slim connector for all of your devices with reversible plug orientation.

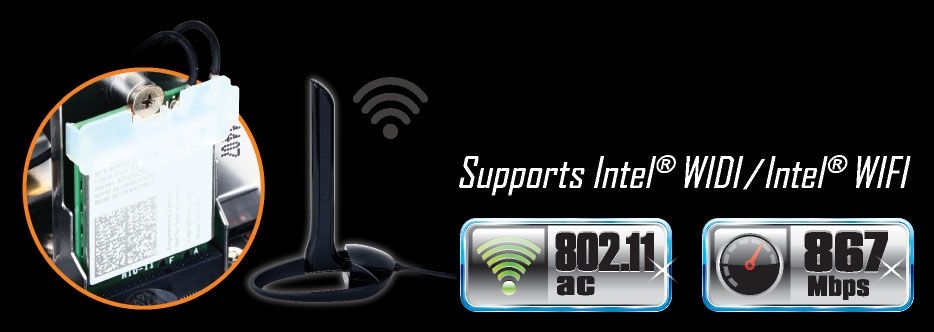

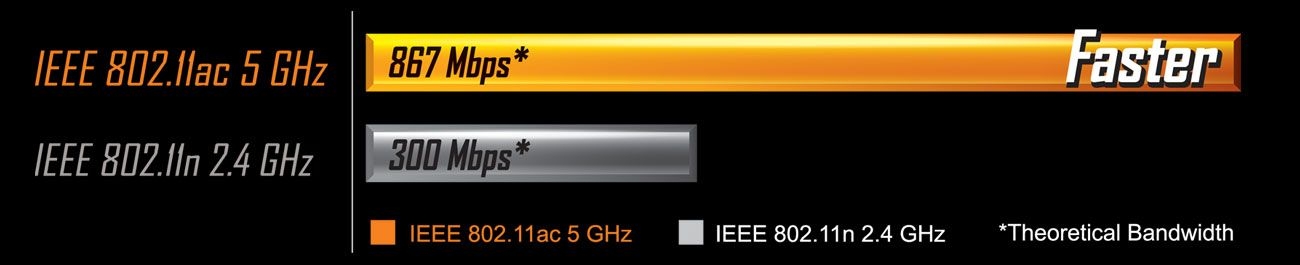

Faster and Better Coverage with Intel® Dual Band 802.11ac WIfI + BT4.2 Module

The onboard 802.11ac WIFI module from Intel® supports up to 867 Mb/s wireless networks and BLUETOOTH 4.2. The bonded 2.4GHz/5GHz Dual Band and 2T2R antenna expands your coverage.



Integrated 2x2 802.11ac 867 Mbps Dual Band WIFI + BLUETOOTH 4.2 module

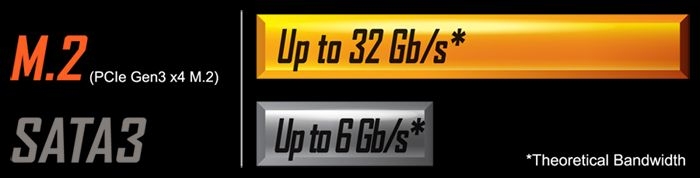

Fast Onboard Storage with 32Gb/s M.2

GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interface for M.2 SSD devices.

All New GIGABYTE App Center Including EasyTuneâ„¢, Cloud Stationâ„¢ Utilities and More...

GIGABYTE's EasyTuneâ„¢ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

APP Center

GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.

Easy Tuneâ„¢

Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.

Cloud Stationâ„¢

GIGABYTE Cloud Stationâ„¢ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.

Intel® GbE LAN with cFosSpeed

The Intel® Gigabit LAN with cFosSpeed features advanced technology to help deliver better network responsiveness in crowded LAN environments and allows optimization and improved network performance for specific applications, making it a popular choice amongst gamers.



Ambient LED

The GIGABYTE GA-B150N Phoenix-WIFI is equipped with exclusive Pulse LED lighting on the underside of the PCB, providing a signature look for any custom PC build. The soft-glowing orange lighting elegantly phases in and out during system operation, bringing the life to GIGABYTE B150N Phoenix-WIFI.

GIGABYTE motherboards features LED lighting for the audio guard light path, providing a cool, custom look to your rig. These lights are now programmable, so you can have them beat to the rhythm of the music you are listening to, or pulse at a soothing pace to create a great atmosphere to enhance the environment of your game, movie or music.

High Quality Onboard Audio Design

Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional users.

GIGABYTE Patented DualBIOSâ„¢ (UEFI) Design

GIGABYTE Ultra Durableâ„¢ motherboards feature GIGABYTE DualBIOSâ„¢, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOSâ„¢ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.

HDMIâ„¢ - The Next Generation Multimedia Interface

HDMIâ„¢ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMIâ„¢ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMIâ„¢ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

Specification

CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® B150 Express Chipset
Memory
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 2133 MHz memory modules
  4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
(Please refer "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor- Intel® HD Graphics support:
  1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4 version.
Maximum shared memory of 512 MB
Audio
  1. Realtek® ALC892 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. Intel® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module
  1. Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  2. Bluetooth 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
  3. Support for 11ac wireless standard and up to 867 Mbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Storage InterfaceChipset:
  1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2/x1 SSD support)
  2. 4 x SATA 6Gb/s connectors
    * Refer to "1-7 Internal Connectors," for the supported configurations with the M.2, and SATA connectors.
USBChipset:
  1. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  2. 2 x USB 2.0/1.1 ports (available through the internal USB header)
Chipset+ASMedia® USB 3.1 Controller:
  1. 1 x USB Type-Câ„¢ port on the back panel, with USB 3.1 support
  2. 1 x USB 3.1 Type-A port (red) on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 1 x CPU fan header
  5. 2 x system fan headers
  6. 1 x front panel header
  7. 1 x front panel audio header
  8. 1 x S/PDIF Out header
  9. 1 x USB 3.0/2.0 header
  10. 1 x USB 2.0/1.1 header
  11. 1 x speaker header
  12. 1 x Clear CMOS jumper
  13. 1 x chassis intrusion header
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 2 x SMA antenna connectors (2T2R)
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 1 x USB Type-Câ„¢ port, with USB 3.1 support
  6. 1 x USB 3.1 Type-A port (red)
  7. 4 x USB 3.0/2.0 ports
  8. 1 x RJ-45 port
  9. 1 x optical S/PDIF Out connector
  10. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU/System overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOSâ„¢
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Smart TimeLock
    Smart Keyboard
    Smart Backup
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash
  3. Support for Smart Switch
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System
  1. Support for Windows 10/8.1 64-bit
  2. Support for Windows 7 32-bit/64-bit
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
  1. Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
