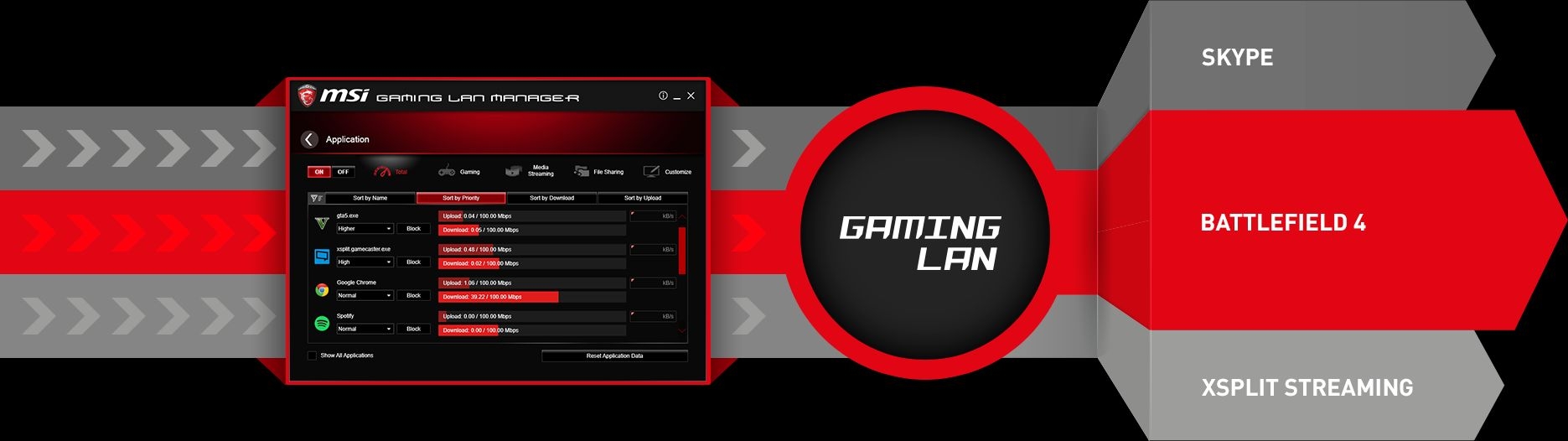

• Automatically prioritizes games above other applications
• Allows you to change applications' traffic priority
• Allows you to customize you to customize bandwidth for each application

LAN Protect

Featuring 15KV anti-surge protection to shield your network from lightning strikes and static electricity, LAN Protect is a LAN connector designed to give you the best networking experience.

MSI LAN Protect: 15KV

Other vendor: 8KV

Standard: 6KV

Reward your ears with studio grade sound quality

With Audio Boost 3, powered by Nahimic Sound Technology, we're delivering the highest sound quality through the use of premium quality audio components. That way, you can enjoy breathtaking, crystal clear sound and music through 8-channel HD Audio or high impendence headphones and truly dominate the game.

Nahimic Sound Technology

Offering immersive virtual 7.1 sound in high definition using exclusive stereo equipment.

Golden Audio Jacks

With golden audio connectors you get the best possible signal output with less chance of distortion.

High Quality EMI-Shielded HD Audio Processor

Audio Boost 3 is fueled by a EMI-shielded high quality HD audio processor, making sure you enjoy the purest sound quality.

Isolated Audio PCB with LED Line

Audio Boost 3 acts like a dedicated soundcard by physically isolating the audio circuitry to give you a more clear audio signal.

Chemi-Con Audio Capacitors

Delivering high fidelity crystal clear sound with exceptional acoustics and realism.

Dual Headphone Amplifier

The built-in dual headphone amplifiers rewards your high quality headphone with studio level sound quality up to 600O delivered from your gaming PC.

Front Dedicated Headphone Out

Convenient use of the front panel audio output while retaining high quality amplified sound.

WITH NAHIMIC, ENJOY SOUND THAT PUSHES THE LIMITS OF REALITY .

Nahimic sound technology has been approved for its quality and precision in projects undertaken by the military field and the aeronautics industry. It offers immersive virtual 7.1 sound in high definition using exclusive stereo equipment.

Nahimic lifts your gaming experience to a new level, offering you highly sought-after gaming benefits:

GAME BOOST

Overclock your system instantly and generate more FPS in games with 1 push of a button using Game Boost! You can also easily enable XMP using the XMP button in Click BIOS.
Xmp

Features may vary according to your platform and model

GAMING HOTKEY

Gaming Hotkey enables more functionality using your own keyboard. Simply assign functions or macros to any key and launch your favorite games, load overclocking profiles or do real-time overclocking with the push of a single button. The possibilities are endless!

Customize any key on your keyboard
Up to 8 steps macro programming
User friendly, easy to use application
1 key load up of your favorite game
1 key overclocking

TOTAL FREEDOM, MAXIMUM EASE

Easily program your most used commands to be executed with a single keystroke. You are free to choose any key you want.

Hotkeys

Assign your own keyboard combinations

Windows keys

Quick launch any application or folder

Quick launch of mail, browser or more

MSI® Smart keys

One press to login (program passwords)

Login Keys

2X FASTER

MSI USB 3.1 GEN2

Transfer your favorite games, music and movies over USB faster than ever. USB 3.1 Gen2 enables lightning-fast transfer speeds up to 10Gb/s!

USB3.1

Benefits

2X faster than USB 3.1 Gen1
20X faster than USB 2.0
Up to 10Gbps data transfer bandwidth
Boost transfer rate for your PC and peripherals

REVERSIBLE DESIGN

Type-C with reversible design

Get all the performance benefits from USB 3.1 Gen2 combined with the convenience of the USB Type-C connector. This reversible connector allows for effortless connecting of USB devices.

FRONT USB 3.1 Gen1

With a cleverly placed USB 3.1 Gen1 front pin header on MSI motherboards, you can connect up to 4 USB 3.1 Gen1 devices directly to the front of your PC Chassis. This way you can easily enjoy fast USB speeds without having to use the hard-to-reach USB ports at the rear.

DOUBLE ESD PROTECTION

The front USB 3.1 Gen1 ports on MSI motherboards are protected by a set of protective ICs to prevent damage caused by Electrostatic Discharge (ESD) from plugging/unplugging USB devices.

FAST STORAGEWITH SATA EXPRESS

SATA Express offers a solution in high speed storage through PCI-Express, providing more bandwidth for the latest generation SSDs up to 16 Gb/s.

PUSH YOUR SSD HARDER WITH TURBO M.2

Delivering speeds up to 32Gb/s using Gen3 x4, Turbo M.2 is more than 5 times faster than a regular SATA III connection! Enjoy a blazing fast system boot up and insanely fast loading of applications and games with MSI motherboards.

M.2 TO TURBO U.2 (optional)

The U.2 Host Card delivers performance up to 32 Gb/s and allows support for next gen 2.5-inch SSDs using the U.2 connector. A redriver chip is added to increase data transfer speed.

ENHANCED CPU OVERVOLTAGE PROTECTION

Onboard overvoltage protection prevents overvoltage and short-circuit damage of the CPU and other components. A red LED near the 24 pin CPU power connector let you know that overvoltage protection is activated for easier troubleshooting.

EASY DIAGNOSTIC

MSI EZ Debug LED is an easy troubleshooting tool using 3 LEDs to indicate CPU / Memory / VGA operation every time you boot up your system. Run into trouble? Use the LEDs to easily identify the source of your problem and get back into operation quickly.

SteelSeries Certified

Get ready to enjoy the best gaming experience with MSI & SteelSeries!

Enthusiast gaming gear brand SteelSeries has officially approved MSI GAMING motherboards as ‘SteelSeries Certified (SSC)’. This certification is based on the performance demands and stability of MSI GAMING motherboards and SteelSeries products. Your SteelSeries headset, mouse and other top quality gaming gear works best on MSI GAMING motherboards.

GAMING CERTIFIED

Our GAMING motherboards are tested in our gaming lab, internet cafes and together with the world’s best eSports players to make sure you get top performance and reliability in the world’s most popular games. Through 24-hour on- and offline game testing, MSI ensures the onboard network configuration, audio reception and FPS performance are tested and tuned to perfection for you to enjoy the best possible gameplay experience.

Only the motherboards that pass this test receive the GAMING CERTIFIED status and are considered true MSI® GAMING motherboards.

Titanium Choke

Titanium Choke uses a Titanium core that has better ability in thermal and higher temperature tolerance. This allows the Titanium Choke to run at a 220 degree Celsius high temperature, have a 40% higher current capacity, a 30% improvement in power efficiency and better overclocking power stability.

DARK CAP

With their aluminum core design, Dark CAPs has been a staple in high-end motherboard designs and provides lower Equivalent Series Resistance (ESR) as well as its over-10-year lifespan.

MILITARY CLASS 5 COMPONENTS

Military Class 5 is the latest evolution in high quality components. The Titanium Choke and Dark CAP ensure that your PC runs stable under extreme gaming conditions.

HUMIDITY PROTECTION

Reduction in moisture absorption helps prevent "Conductive Anodic Filament". Untreated PCB's can have 10x higher failure rate.

HIGH TEMPERATURE

PROTECTION

All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments.

CIRCUIT PROTECTION

Carefully selected materials, multiple PCB layers and shielding result in the best circuit protection for our GAMING motherboards.

ESD PROTECTION

Each and every I/O port is protected against the hazards of Electro Static Discharge.

EMI PROTECTION

All MSI motherboards comply with strict American FCC regulations and reduce the impact of Electromagnetic Interference.

Optimized for multiple graphics cards

SLI /CrossFire support

This motherboard supports SLI / CrossFire. Optimal PCI-Express slot placement allows for better fitting and airflow.

That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an NVIDIA® SLI™ or AMD CrossFire™ setup.

Prevent damage!

Worried about damaging the PCI-Express slot or your graphics card because of the weight?

MSI® Steel Armor

Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free gaming experience and higher GPU overclocking.

THE ALL NEW, AWARD-WINNING CLICK BIOS 5

Explore the greatly improved, award-winning CLICK BIOS 5 and use it to tune your system to maximum performance to get the most out of your games. MSI CLICK BIOS 5 is the next generation UEFI BIOS with optimizations for Windows 10.

Control your system in two modes: EZ mode, for the most used settings and functions. Advanced mode for more detailed settings and fine-tuning options to boost your system’s performance.

Variety of options to boost your game performance
Next gen UEFI BIOS with award winning design
High-resolution multi language scalable font
Easy to use
Advanced overclocking

OTHERS

Low res, non-scalable

CLICK BIOS 5

Sharp, hi-res, scalable design

OBS STREAMING SOFTWARE

Share your gaming achievements with the world! Open Broadcaster Software (OBS) is world’s most popular open source software for video recording and live streaming. Show your friends your gaming progress live.

Plenty of plugins

Allowing developers to create their own unique plugins and complete control of their streaming experience.

Optimized video quality

OBS records videos using small file size,but with perfect image and sound quality, without lag.

Easy to share

Live streaming to your favorite video sharing websites such as Twitch, YouTube, DailyMotion, Hitbox and many more.

Webcam supported

OBS supports almost any webcam. DirectShow capture device support (webcams, capture cards, etc).

Multiple profiles

Add different profiles, each of them with its own settings. Easy to use OBS for anyone, in any situation.

Plenty of plugins

Allowing developers to create their own unique plugins and complete control of their streaming experience.

Optimized video quality

OBS records videos using small file size,but with perfect image and sound quality, without lag.

OVERCLOCKING MADE EASY

Outperform your competition with the MSI® GAMING APP which allows simultaneous control of both your Motherboard and Graphics Card's overclocking.

Simply select your preferred mode with the click of a button: / Silent / Gaming / OC /

ON-SCREEN SPEED & TEMPERATURES

Real-time monitor GPU Core, DRAM Frequency, GPU & CPU Temperatures and much more, in game or in other fullscreen applications, customizable to your preference.

CPU-Z

MSI GAMING EDITION

MSI has worked closely with CPUID to develop this special edition of CPU-Z featuring the famous MSI GAMING dragon. Use CPU-Z to gather key information on the main devices of your system, such as your CPU speed, Memory speed and timings, motherboard BIOS version and much more.

SSD not fast enough? Try MSI RAMDisk!

Get an unlimited RAMDisk for free (worth $35) with MSI GAMING motherboards. RAMDisk allows you to create a virtual drive from your system memory, enabling speeds up to 25x faster than a modern SSD. You can load complete games, speed up your browser or your page file significantly increasing system performance! You even increase your SSD's lifespan by using RAMDisk as it reduces unnecessary read and write operations to your SSD.

Speed up system performance
Speed up games, apps and browser
Increase SSD lifespan

Connectivity

Be sure to take full advantage of all the GAMING weapons by connecting your devices to the optimized ports.

Connectivity

Gaming Device Port
USB 3.1 Gen2 Type A
USB 2.0
MSI GAMING LAN
Audio connectors
USB 2.0

DVI Port
USB 3.1 Gen2 Type C
HDMI Port
USB 3.1 Gen1
Optical S/PDIF Out

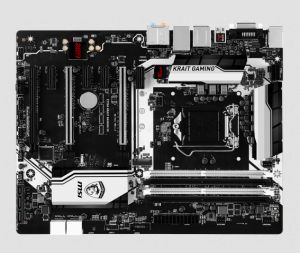

Specifications

CPU

Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151

Chipset

Z170 Chipset

Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
• Dual channel memory architecture
• Supports ECC, un-buffered memory
- ECC UDIMM memory (non-ECC mode)
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer to Compatibility reports for more information of compatible memory.

Slots

3 x PCIe 3.0 x16 slots (support x16/x0/x4 or x8/x8/x4 modes)
4 x PCIe 3.0 x1 slots

Onboard Graphics

1 x HDMIâ„¢ port, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz

Multi-GPU Support

Supports 3-Way AMD® CrossFire™ Technology
Supports 2-Way NVIDIA® SLI™ Technology

Storage

Intel® Z170 Chipset
6 x SATA 6Gb/s ports* (2 ports reserved for SATA Express port)
1 x M.2 slot*
Supports PCIe 3.0 x4 and SATA 6Gb/s standards, 4.2cm/ 6cm/ 8cm length M.2 SSD cards
Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2 Host Card**
1 x SATAe port (PCIe 3.0 x2)***
Supports Intel® Smart Response Technology for Intel Core™ processors

* SATA5 and SATA6 ports will be unavailable when installing the M.2 module in M.2 slot.
** The Turbo U.2 Host Card is not included, please purchase separately.
*** SATAe port is backward compatible with SATA. SATA and SATAe ports maximum support 6x SATAs or 1x SATAe + 4x SATAs.

RAID

• Intel® Z170 Chipset
- Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

USB

ASMedia® ASM1142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port on the back panel
- 1 x USB 3.1 Gen2 Type-C port on the back panel
Intel® Z170 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 4 ports available through the internal USB 3.1 Gen1 connectors)
- 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

Audio

Realtek® ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output

LAN

1 x Intel® I219-V Gigabit LAN controller


Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors (2 ports reserved for SATA Express port)
- 1 x SATAe connector
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
- 1 x TBT connector

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 4 x USB 2.0 ports
- 1 x DVI-D port
- 1 x USB 3.1 Gen2 port
- 1 x USB 3.1 Gen2 Type-C port
- 1 x HDMIâ„¢ port
- 1 x LAN (RJ45) port
- 2 x USB 3.1 Gen1 ports
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks

BIOS

1x 128 Mb flash
UEFI AMI BIOS
ACPI 5.0, PnP 1.0a, SM BIOS 2.8
Multi-language

Dimension

12 in. x 9.25 in. (30.5 cm x 23.5 cm)
ATX Form Factor

Mounting

6 mounting holes
