All stock codes associated to this product
VGA2795, SUNVGA2795, SUN-VGA2795, 4715109710472
USB 3.0 to DisplayPort Graphics Dongle with 4K Ultra-HD Resolution Support (USBIF TID 310930006)
SuperSpeed USB 3.0 interface is the next revolution in I/O interconnect
standards that will deliver the bandwidth and features required by PCs,
consumer electronics and communications devices. With 10 times faster
throughput than USB 2.0 standard, USB 3.0 Graphic dongle enhances better
VGA performance effect and reduce CPU loading substantially.

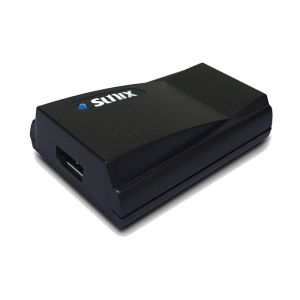

SUNIX VGA2795 USB 3.0 to DisplayPort Graphics Dongle provides a unique solution to add extra displays to a computer without using traditional graphics card. Users can instantly mirror or extend a desktop onto another display via VESA DisplayPort connectivity, such as LCD displays and projectors. Besides, user can experience 4K Ultra-HD resolution and stereo audio output abilities over DisplayPort connectivity for home entertainment application. With USB interface plug-n-play and bus-power feature, this product brings multi-monitor applications into the mainstream.
Features
-
Add-on monitor, LCD or projector through USB 3.0 or USB 2.0 connectivity.
-
Supports widescreen aspect ratio of 16:9 Full HD 4K Ultra-HD video streaming.
-
High performance USB Graphics Engine supports resolutions up to 3840X2160 pixels @ 32bit.
-
Compliant with VESA DisplayPort Specification.
-
Low power consumption via USB Bus power supply (without Heat Sink).
-
Supports desktop display mirror, extend mode, multi screen mode and screen rotation mode.
-
Up to six USB 3.0 graphic dongles to work simultaneously.
-
Automatic recognition of monitor type, resolution, and features.
-
Hot-swapping / Plug-n-Play of monitors without reconfiguration.
-
Movement of windows on the desktop is smooth, with no trail or shuddering.
-
Compatible with Windows power management hibernate and suspend modes.
-
Specialized for office using, home entertainment, and video playing.
-
Supports Microsoft Windows operation system.
- Certified by CE, FCC, VCCI, BSMI, C-Tick, and RoHS.
Specifications
| Interface |
Video Interface: DisplayPort
Bus Interface: USB 3.0 (Back compatible with USB 2.0)
|
|
Connector |
Video Output: DisplayPort Female Receptacle
Host upstream link: USB 3.0 Micro B Type Female Receptacle
|
|
USBIF TID |
310930006 |
|
Memory |
64MB DDR Synchronous DRAM (SDRAM) |
|
Power Consumption |
+ 5VDC / 400mA over USB bus power |
|
Support Mode |
Extend mode, Mirror mode, Multi Screen mode, Screen Rotation mode
|
|
Resolutions
|
Resolution |
Name |
Refresh Rate |
|
640x480 |
VGA |
60 67 72 75 85 |
|
800x600 |
SVGA |
56 60 72 75 85 |
|
1024x768 |
XGA |
60 70 75 85 |
|
1280x720 |
720p |
50 60 |
|
1280x768 |
WXGA+ |
60 75 85 |
|
1280x800 |
WXGA |
60 |
|
1280x1024 |
SXGA |
60 75 |
|
1366x768 |
WXGA+ |
50 60 |
|
1400x1050 |
SXGA+ |
60 75 85 |
|
1600x900 |
|
60 |
|
1600x1200 |
UXGA |
60 |
|
1680x1050 |
WSXGA+ |
60 |
|
1920x1080 |
1080p |
50 60 |
|
1920x1200 |
WUXGA |
60 |
|
2048x1152 |
|
60 |
|
2560x1440 |
|
60 |
|
2560x1600 |
|
60 |
|
3840x2160 |
UHD |
30 |
|
Regulatory Approvals |
EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3
US: FCC Part 15 Class B
TAIWAN: BSMI: CNS13438
AS/NZS: C-Tick: CISPR22
JAPAN: VCCI |
|
O.S. Support |
Microsoft:
Windows 10 (32/64bit),Windows 8.x (32/64bit), Windows 7 (32/64bit),
Windows Vista (32/64bit),Windows XP (32bit)
(Not compatible with Windows RT Tablets),
Apple:
MAC Mavericks 10.9, Yosemite 10.10, EI Capitan 10.11
MAC Mountain Lion 10.8, Lion 10.7, Snow Leopard 10.6
|
|
Environment |
Operation temp. 10 °C ~ 40 °C (50-104°F)
Relative humidity: < 85% non-condensing
Storage temp. -10 °C ~ 85 °C (14~176°F)
|
|
Dimension |
56 (W) x 87(L) x 22(H) mm |
|
Case Material |
ABS |
|
Weight |
50g±5g |
|
USB Cable |
USB 3.0 A -Type Male to USB3.0, Micro B-Type Male |
