HX424S15IBK4/32 | Kingston 32GB (4 x 8GB) PC4-19200 2400MHz DDR4 SODIMM RAM

Need assistance in selecting the correct RAM for your system?
Please use our Memory Configurators to ensure compatibility

Description

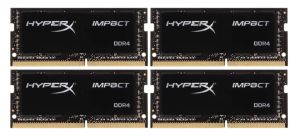

HyperX HX424S15IBK4/32 is a kit of four 1G x 64-bit (8GB) DDR4-2400 CL15 SDRAM (Synchronous DRAM) 2Rx8, memory modules, based on sixteen 512M x 8-bit DDR4 FBGA compo-nents. Total kit capacity is 32GB. Each module supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. This module has been tested to run at DDR4-2400 at a low latency timing of 15-15-15 at 1.2V. Additional timing parameters are shown in the PnP Timing Parameters section below. The JEDEC standard electrical and mechanical specifications are as follows:

PNP JEDEC TIMING PARAMETERS:

JEDEC/PnP: DDR4-2400 CL15-15-15 @1.2V DDR4-2133 CL14-14-14 @1.2V

XMP Profile #1: DDR4-2400 CL15-15-15 @1.2V

FEATURES

Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP - 2.5V Typical

VDDSPD = 2.25V to 3.6V

On-Die termination (ODT)

16 internal banks; 4 groups of 4 banks each

 Bi-Directional Differential Data Strobe

8 bit pre-fetch

Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

Height 1.18” (30.00mm)

Specifications:

CL(IDD): 15 Cycles

Row Cycle Time (tRCmin): 46.75ns (min.)

Refresh to Active/Refresh Command Time (tRFCmin): 260ns (min.)

Row Active Time (tRASmin): 29.125ns (min.)

Maximum Operating Power: TBD W*

UL Rating: 94 V - 0

Operating Temperature:  0°C to 85°C

Storage Temperature -55°C to +100°C
