Overview

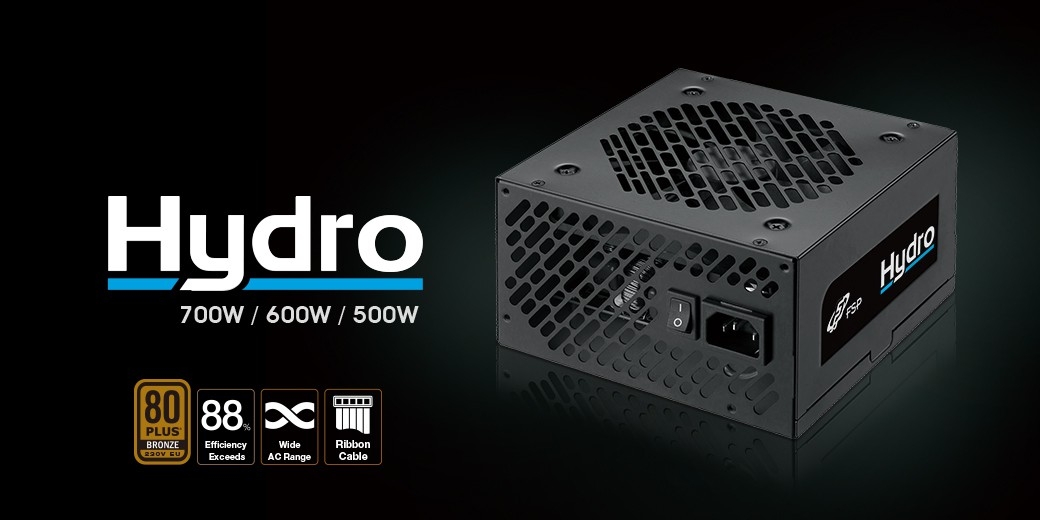

FSP Hydro series is designed for the need of general gamers who need good
performance at affordable prices. By 230V 80Plus bronze certification, its
efficiency can be reached up to 88% at typical loading.
- Unique product ID with stylish side sticker
- Advanced air-flow design in silent operation
- Complies with newest ATX12V & EPS12V standards
- Wide input AC range from 160Vac to 280Vac
- 230V 80PLUS Bronze certification
- Efficiency 88%
- Powerful single +12V rail design
- Ribbon cables for the need of enthusiasts and gamers
- SLI and Crossfire ready
- Full protections: OCP, OVP, SCP, OPP
- Global safety approved

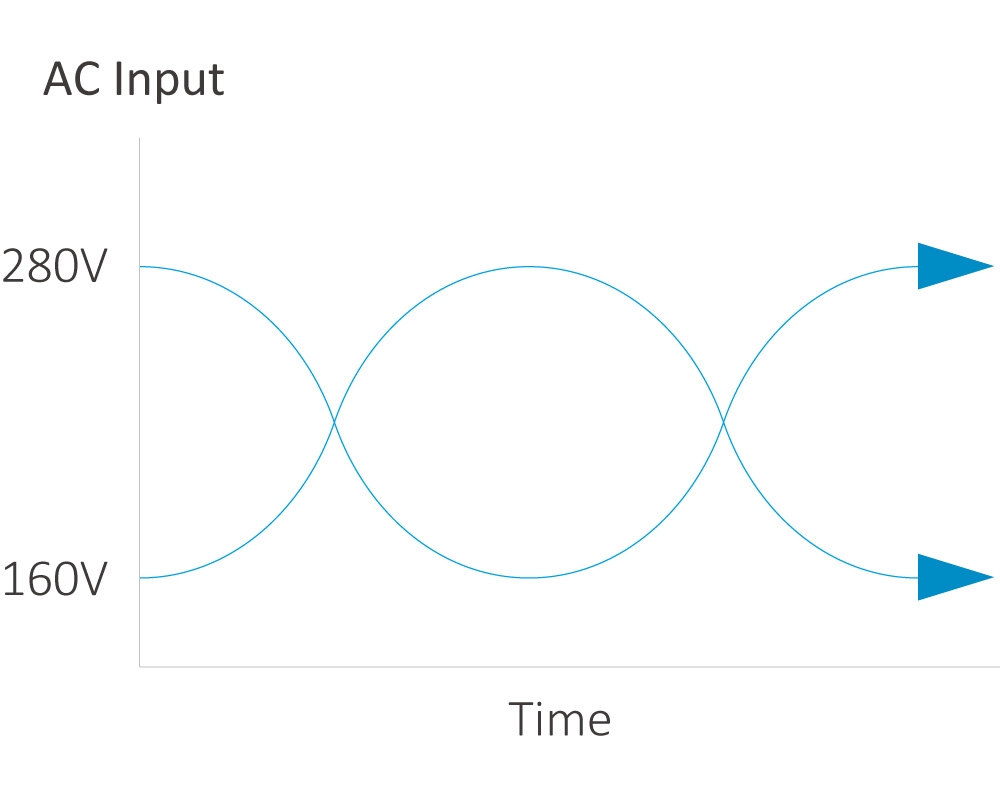

Wide input AC range
Input AC range from160Vac to 280Vac, a reliable design for anyunstable
voltage condition.

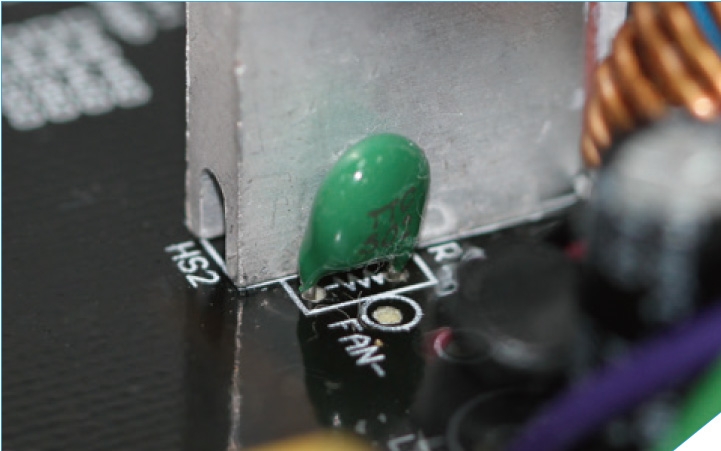

Intelligent fan control
An advanced fan control design to detect heat and adjust fan speed for
optimal cooling performance.

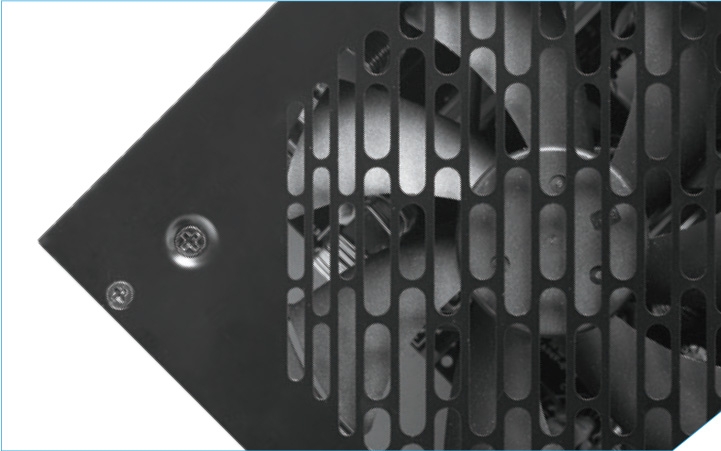

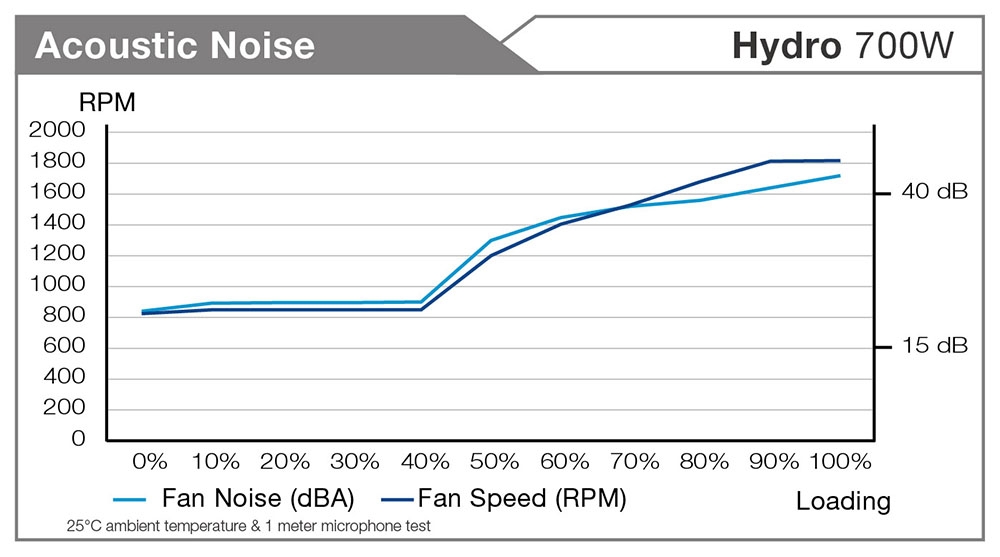

Low Noise
120mm fan and special vent hole design to spin quietly and keep cooling under
maximum operation.

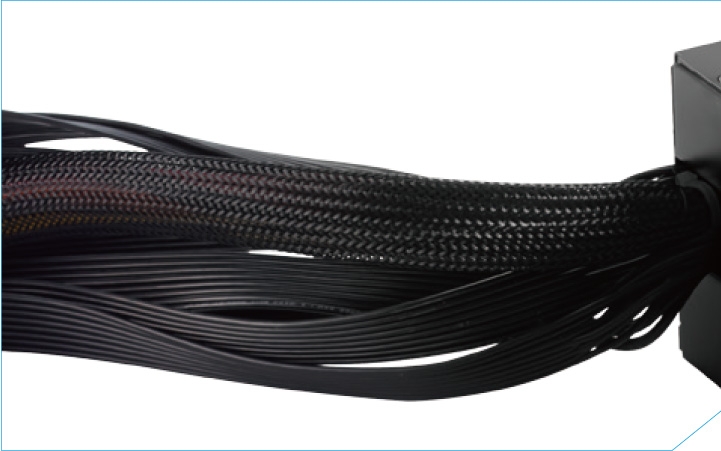

Sophisticated design
Ribbon cables (exclude MB 20+4 Pin) give any systemsa neat and polished
look.

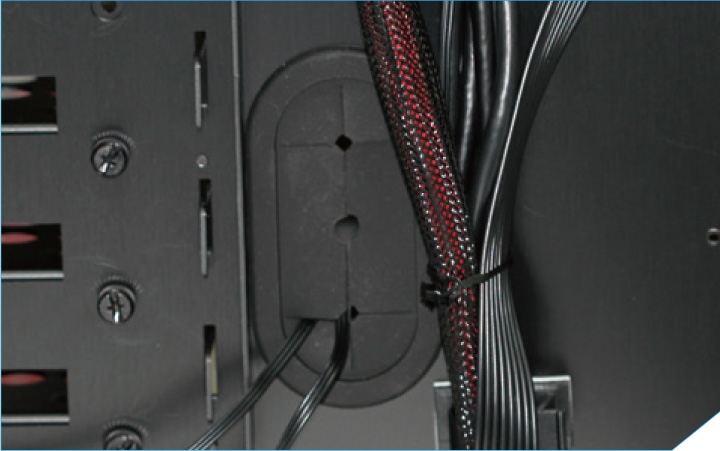

Easy Installation
20+4 pin comes with length of 450mm to connect MB easily, and ribbon cables
give you a hand to face mess cables in rear panel.

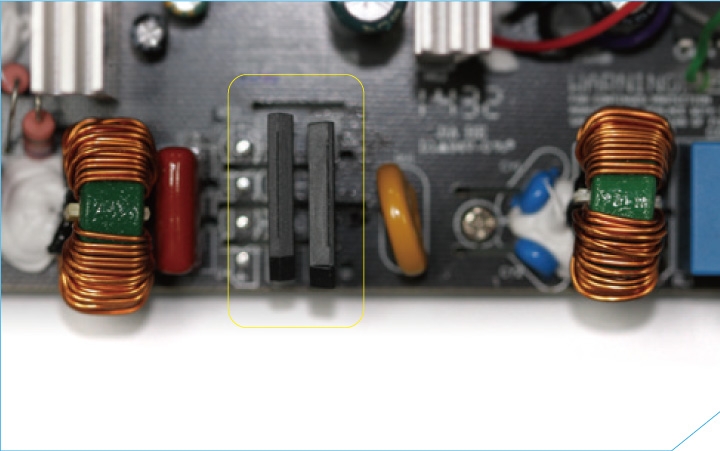

Low power consumption, high energy efficiency
Special design to place the bridge diodes among two EMI filters for low
energy loss in Standby mode.

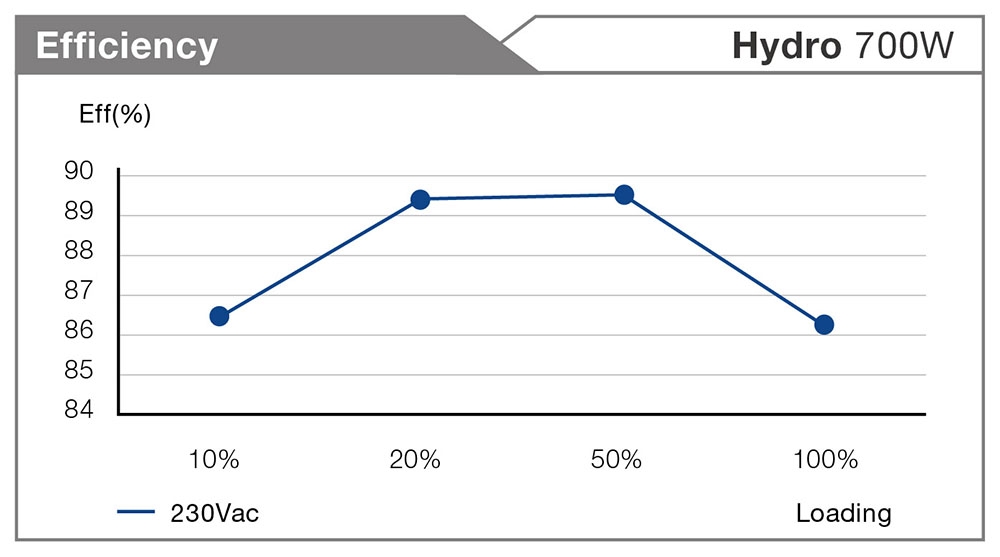

Performance
Specifications
| Model |
HD700 |
| Rated Output Power |
700W |
| Form Factor |
ATX |
| 80 PLUS Certification |
230V Bronze |
| Input Voltage |
200-240Vac |
| Input Current |
6A |
| Input Frequency |
50-60 Hz |
| PFC |
Active PFC (>0.9 typical) |
| Efficiency |
88% |
| Fan Type |
120mm Intelligent Silent Fan |
| Dimensions(L x W x H) |
150 150 86 mm |
| Weight |
1880g |
| Operation Temp. |
0~40C |
| Protection |
OCP/OVP/SCP/OPP |
