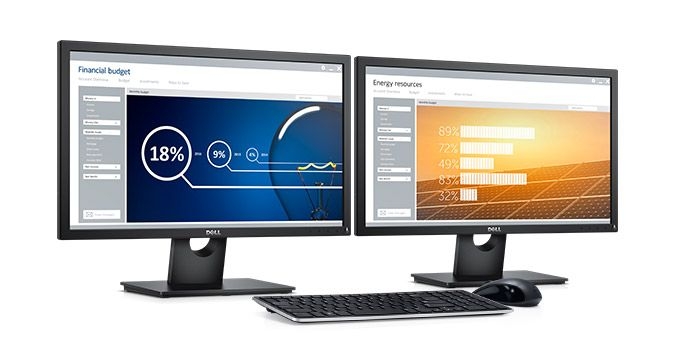

Dell E2316H LCD Monitor - Black

Overview

Everyday office essentials

Screen performance: View your applications, spreadsheets and more on 23 inches of 1920x1080 Full HD clarity, with 16.7 million colors, a color gamut of 83% gamut1 and a 160°/170° vertical and horizontal viewing angle.

Plug and view: Compatible with legacy and current PCs via VGA and DisplayPort connectivity.

Mounting option: Keep your desk clutter-free by mounting your VESA®  compatible monitor on the wall or using the optional Dell Single Monitor Arm, detailed below.

Tilt at will: Work comfortably by tilting the monitor 5° forward or 21° backward.

Convenient controls: Easily access buttons for power, brightness, contrast and customizable preset modes on the monitor’s front panel.

Eco-conscious and reliable

Peace of mind included: Relax knowing that your Dell monitor comes with a 3-year Advanced Exchange Service 2 within its 3-Year Limited Hardware Warranty.3

Reduced footprint: The Dell 23 Monitor features PowerNap technology that reduces screen brightness or puts the monitor in sleep mode when it's not in use. This monitor also meets the latest regulatory and environmental standards:

ENERGY STAR®  Qualified
EPEAT®  Gold4
CECP Certified
TCO Certified Displays

Environment-friendly materials: Your new Dell monitor is made with arsenic-free glass and a mercury-free LED panel. Its circuit boards are made from brominated flame retardant (BFR)- and PVC-free laminates, and it has more than 25% post-consumer recycled plastics in its chassis.

Specifications:

Dell 23 Monitor | E2316H

Display

Color:
Black

Diagonally Viewable Size:
23 inches

Aspect Ratio:
Widescreen (16:9)

Panel Type, Surface:
TN

Optimal resolution:
1920 x 1080 at 60 Hz

Preset Display Area (H x V):
145839.34 sq-mm (226.16 sq-inches)

Contrast Ratio:
1000:1 (typical)

Brightness:
250 cd/m2 (typical)

Response Time:
5 ms typical (Black to White)

Viewing Angle:
160° vertical / 170° horizontal

Adjustability:
Tilt

Color Support:
16.7 million colors

Pixel Pitch:
0.265 x 0.265 mm

Backlight Technology:
WLED

Display Type:
Widescreen Panel Display

Display Screen Coating:
Anti-Glare with 3H hardness

Audio Output:
No

Connectivity
DP
VGA

Features
Security:
Security lock slot (cable lock sold separately)

Flat Panel Mount Interface:
VESA (100 mm)

Built-in Devices
N.A.

Size and Weight

Dimensions (With Stand):
Height (compressed / extended):
415.0 mm (16.34")
Width: 544.8mm (21.45")
Depth: 180.0mm (7.09")

Dimensions (Without Stand):
Height: 322.0 mm (12.68")
Width: 544.8 mm (21.45")
Depth: 50.5 mm (1.99")

Weight (panel only - for VESA mount):
2.98 kg (6.57 lb)
Weight (with packaging):
5.09 kg (11.22 lb)

Environmental and Regulatory
Electrical
Voltage Required:
100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 1.0 A (typical)
Power Consumption (Operational):
20 W (Typical). 19.4W (Energy Star)
Power Consumption Stand by / Sleep:
Less than 0.3 W

Environmental
Temperature Range Operating:
0 °C to 40 °C (32 °F to 104 °F)
Temperature Range Non-operating:
Storage : -20 °C to 60 °C (-4 °F to 140 °F)
Shipping: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity Range Operating:
10% to 80% (non-condensing)
Humidity Range Non-operating:
Storage : 5% to 90% (non-condensing)
Shipping : 5% to 90% (non-condensing)
Altitude Operating:
5,000 m (16,404 ft) (maximum)
Altitude Non-operating:
12,191 m (40,000 ft) (maximum)

Compliance and Standards
ENERGY STAR
EPEAT Gold
CECP
TCO
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
Energy Star
What's in the box
Monitor
Stand
VESA Screw Cover
Power Cable (varies by country)
DP Cable
Divers and Documentation Media (CD)
Quick Setup Guide
Safety and Regulatory Information
