0-761345-10775-4 | Antec HCG High Current Gamer 750M PSU - ATX 12V

Antec HCG M HCG-750M 750W ATX12V SLI Ready CrossFire Certified 80 PLUS BRONZE Certified Modular Active PFC Power Supply

Overview

Antecs HCG M power supplies are the perfect combination of power and efficiency. The HCG M features special heavy-duty High Current connectors and cabling that supply extreme levels of power, and superb efficiency thanks to 80 PLUS Bronze certification and Active PFC. HCG Ms innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors and even future connectors of 10, 12, 14 or 16-pins. Highest-quality connectors, Japanese-brand capacitors, and a quiet 135 mm double ball bearing LED fan complete the package. CircuitShield makes the HCG-750M safe and reliable in any environment with its nine industrial-grade protections. If loads of power, High Current engineering and extreme efficiency are what youre after, the HCG M is the PSU for you

Features

• 750W Continuous Power - Guaranteed 750W of Continuous Power from Antec
• 80 PLUS Bronze Certified - Up to 88% efficient, to reduce your electricity bill
• AQ5 - Antec Quality five-year warranty and lifetime global 24/7 support
• 16-pin Socket - Industry-leading 16-pin sockets double the modular connectivity by supporting two different 8-pin cables per socket and allow for future connector changes
• 135mm LED DBB Silence - Whisper-quiet high-quality double ball bearing LED fan with long lifetime
• Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
• High Current Rails - Two +12V rails with high load capabilities ensure maximum CPU & GPU compatibility
• 99.2% +12V - Output for maximum CPU & GPU support
• Multi PCI-E - Four PCI-E connectors for multiple GPU support
• NVIDIA SLI-Ready & AMD Crossfire certified - Tested & certified by NVIDIA for SLI & AMD for Crossfire systems
• CircuitShield - Full suite of industrial grade protections:
  - Over Current Protection (OCP),
  - Over Voltage Protection (OVP),
  - Under Voltage Protection (UVP),
  - Short Circuit Protection (SCP),
  - Over Power Protection (OPP),
  - Over Temperature Protection (OTP) & Surge & Inrush Protection (SIP)
• Japanese Heavy-Duty Caps - High-performance Japanese capacitors ensure tightest DC stability and regulation
• Stealth Wires - All wires darkened for minimal visibility in chassis

 750W OUTPUT

• This PSU delivers 750W of robust and continuous power for your entire system. Dual +12V rails, with a maximum combined output of 744W, provide sufficient power for your high-end processor and multiple graphics cards.

 MODULAR CABLE DESIGN WITH 16-PIN SOCKET

• The modular cable design helps create a neater look and better air flow by allowing the use of only the cables needed. The industry-leading 16-pin sockets double the modular connectivity by supporting two different 8-pin cables per socket, and allow for future connector changes.

 80 PLUS BRONZE CERTIFIED

• 80 PLUS certification is the most widely recognized independent standard in power supply efficiency. An 80 PLUS certified power supply uses less energy and generates less heat: it stays cooler, runs quieter, and lasts longer. The HCG-750M has been 80 PLUS Bronze certified to be at least 82% efficient at a wide range of operating loads; this will lower your operating costs and help protect the environment.

  COMPREHENSIVE PROTECTION

• A variety of industrial-grade safety circuitry will help protect your computer: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Surge & Inrush Protection (SIP). Sometimes the PSU will "latch" into a protected state. You will need to power off the PSU and clear the fault before it will function again.

 NVIDIA SLI AND AMD CROSSFIRE CERTIFIED

• This unit is NVIDIA SLI and AMD Crossfire certified, and comes equipped with four 6 + 2-Pin PCIe connectors. It offers you the capability to confidently build a multi-GPU system.

 QUIET COOLING

• The whisper-quiet, high-quality 135mm double ball bearing LED fan delivers efficient cooling with a long lifetime. An advanced low-voltage fan control, for optimal heat and noise management, enhances your experience.

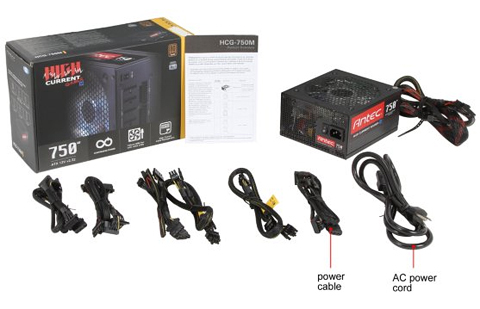

What's in the Box
