Overview

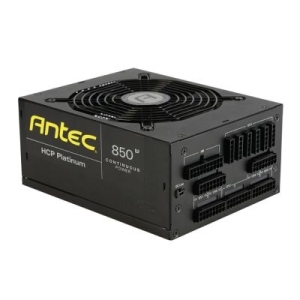

Antecs High Current Pro Platinum series is the pinnacle of power supplies.
High Current Pro Platinum is fully modular with a revolutionary 20+8-pin MBU
socket for the needs of tomorrow. By using a PSU that is 80 PLUS PLATINUM &
ErP Lot 6: 2013 certified, operating up to 94% efficient, you can reduce your
electricity bill by up to 25% when compared to many other power supplies. HCP
Platinums innovative 16-pin sockets create a new level of flexibility by
doubling the modular connectivity, supporting two different 8-pins connectors
and even future connectors of 10, 12, 14 or 16-pins. Backed by a 7 year warranty
and lifetime global 24/7 support, the HCP-850 Platinum embodies everything a
power supply can accomplish today.
Features
- 850W Continuous Power - Guaranteed 850W of Continuous Power from Antec
- 80 PLUS PLATINUM certified - Up to 94% efficient, to reduce your
electricity bill
- Save Energy and Money - Reduce your electricity bill by up to 25%
- AQ7 - Antec Quality 7 year warranty and lifetime global 24/7 support
- 16-pin Socket - Industry-leading 16-pin sockets double the modular
connectivity by supporting 2 different 8-pin cables per socket and allow for
future connector changes
- 28(20+8)-pin MBU socket - World's first socket for possible future MBU
connectors
- 135 mm DBB Silence - Whisper-quiet high-quality double ball bearing fan
with long lifetime
- Thermal Manager - An advanced low voltage fan control for optimal heat
& noise management
- High Current Rails - 4 High Current +12V rails with high load capabilities
ensure maximum CPU & GPU compatibility
- 100% +12V - Output for maximum CPU & GPU support
- Multi PCI-E - 6 PCI-E connectors for multiple GPU support
- OC Link - Allows 2 HCP Platinums to work in tandem to power the most
demanding systems
- CircuitShield - Full suite of industrial grade protections: Over Current
Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection
(UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over
Temperature Protection (OTP), Surge & Inrush Protection (SIP), No Load
Operation (NLO) & Brown-Out Protection (BOP)
- All Japanese Heavy-Duty Caps - All high-performance Japanese capacitors
ensure tightest DC stability and regulation
- PhaseWave Design - A server-class full-bridge LLC design with a
synchronous rectification based on a DC-DC topology
- Stealth Wires - All wires darkened for minimal visibility in
chassis
|
OUTPUT
TABLE |
|
|
+3.3V |
+5V |
+12V1 |
+12V2
|
+12V3
|
+12V4
|
-12V |
+5Vsb |
|
MIN |
0A |
0A |
0A |
0A |
0A |
0A |
0A |
0A |
|
MAX |
25A |
25A |
40A |
40A |
40A |
40A |
0.5A |
3A |
|
TOTAL |
130W |
850W |
6W |
15W |
|
850W |
|
INPUT |
|
Input
Voltage |
100VAC - 240VAC ~ 10%
(Active PFC) |
|
Input frequency
Range |
50Hz - 60Hz, 12A -
5.5A |
Connectors
1 x 20+4 Pin
1 x 8 Pin EPS
12V
6 x 6+2
PCI-E
9 x SATA
6 x
Molex
1 x
Floppy
1 x 4+4
Pin ATX/EPS
1 x OC
Link
Model: HCP-850
Platinum
UPC#:
0761345-23910-3
