All stock codes associated to this product
0761345108546, 0-761345-10854-6, ANTPSUHCP1000W, ANT-PSU-HCP1000W

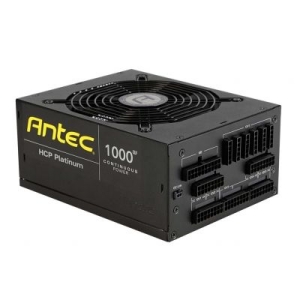

Antec HCP 1000W PSU 80+ Platinum ATX 12V v2.2, EPS
12V, 120mm Fan, Modular Cables, SLI Ready 8x SATA, 2x PCI-E 8-pin, 2x PCI-E
6-pin
Overview
Antec's High Current Pro Platinum series is the pinnacle of power supplies.
High Current Pro Platinum is fully modular with a revolutionary 20+8-pin MBU
socket for the needs of tomorrow. By using a PSU that is 80 PLUS PLATINUM &
ErP Lot 6: 2013 certified, operating up to 94% efficient, you can reduce your
electricity bill by up to 25% when compared to many other power supplies. HCP
Platinum's innovative 16-pin sockets create a new level of flexibility by
doubling the modular connectivity, supporting two different 8-pins connectors
and even future connectors of 10, 12, 14 or 16-pins. Backed by a 7 year warranty
and lifetime global 24/7 support, the HCP-1000 Platinum embodies everything a
power supply can accomplish today.
Features / Specifications
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
-
CircuitShield -
Full suite of industrial grade protections: Over Current Protection
(OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP),
Short Circuit Protection (SCP), Over Power Protection (OPP), Over
Temperature Protection (OTP), Surge & Inrush Protecion (SIP), No
Load Operation (NLO) & Brown-Out Protection
(BOP) |
|
|
|
|
|
|
|
|
|
|
|
OUTPUT TABLE |
|
|
+3.3V |
+5V |
+12V1 |
+12V2
|
+12V3
|
+12V4
|
-12V |
+5Vsb |
|
MIN |
0A |
0A |
0A |
0A |
0A |
0A |
0A |
0A |
|
MAX |
25A |
25A |
40A |
40A |
40A |
40A |
0.5A |
3A |
|
TOTAL |
130W |
1000W |
6W |
15W |
|
1000W |
|
INPUT |
|
Input
Voltage |
100VAC - 240VAC ~ 10%
(Active PFC) |
|
Input frequency
Range |
50Hz - 60Hz, 13A -
6.5A |
1 x 20+4 Pin
1 x 8 Pin EPS
12V
6 x 6+2
PCI-E
9 x SATA
6 x
Molex
1 x
Floppy
1 x 4+4
Pin ATX/EPS
1 x OC
Link
Model: HCP-1000 Platinum
UPC#:
0761345-23912-7
