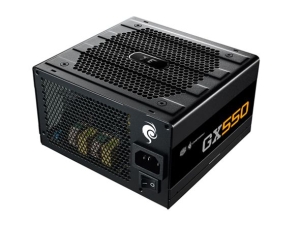

Cooler Master GX550 - CM Storm
Edition
Overview
- 80 PLUS Bronze certified: up to 85% efficiency @ typical
load
- 100% Japanese capacitors
- Powerful Single +12V rail for superior load balancing and VGA
compatibility. All series supports VGA up to Nvidia Titan.
- Custom DC-DC module design offers higher efficiency and
voltage stability
- Haswell C6/C7 support & zero load operation.
- Stylish honeycomb vents design to keep better heat
dissipation and airflow.
- ALL black flat cable for easier cable management.
- Multiple Protection Design & High
reliability.
Product Highlight
Our custom 12V to 3.3V and 5V module design offers notably higher efficiency
and voltage stability than other designs
Double Layer EMI Filter
Doubling up on the EMI Filter ensures electromagnetic interference remains
low
Flat Cable Design
Our flat cable design offers you more flexibility on cable management when
setting up your system
100% Japanese capacitor
High quality Japanese capacitor enhances the reliability of the power
supply

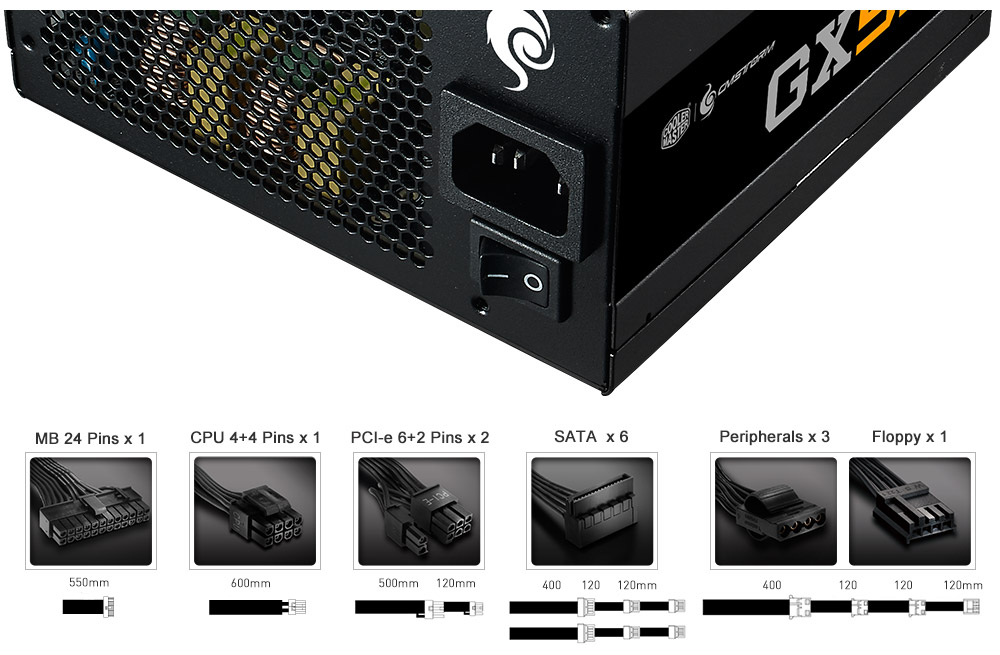

Connectors

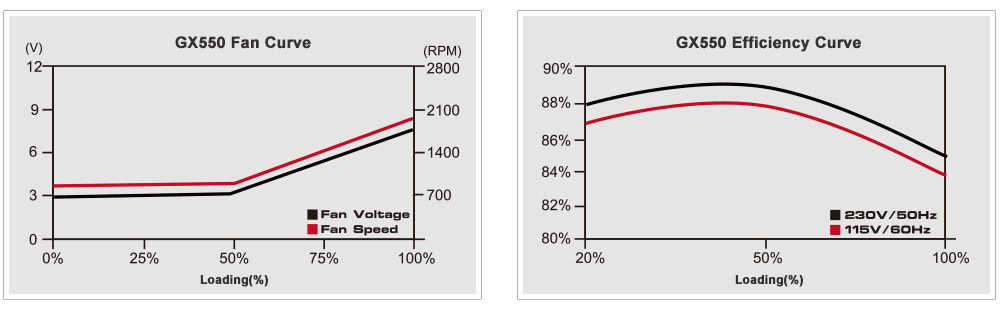

Performance

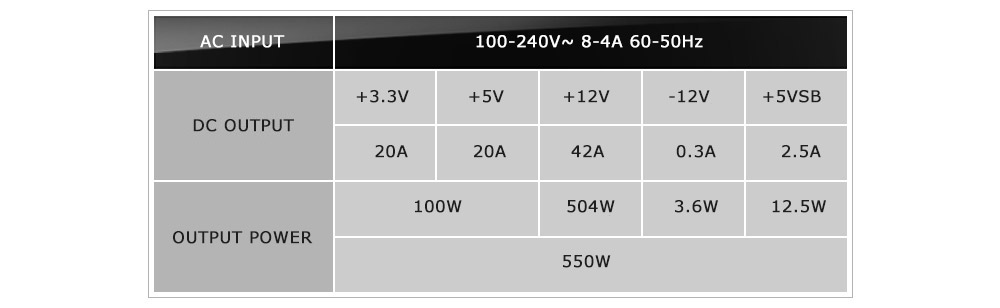

AC Input / DC Output
More Inforamtion

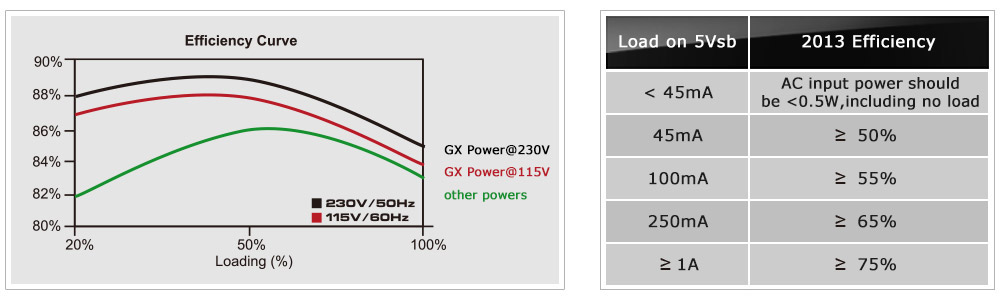

- Synchronous rectification & DC to DC design to provide much better
efficiency at lower loading
- Adoption of dual Inlet control IC to meet efficiency requirement of Erp
2013
Specifications
|
Model |
: |
RS450-ACAAB3-xx |
|
Type |
: |
Intel Form Factor ATX
12V V2.31 |
|
Dimensions |
: |
150 x 140 x 86mm / 5.9
x 5.5 x 3.4 inch |
|
Input
Voltage |
: |
100-240Vac |
|
Input
Range |
: |
Full
range |
|
Input Frequency
Range |
: |
47-63Hz |
|
PFC |
: |
Active PFC (>0.9
typical) |
|
Power Good
Signal |
: |
100-500ms |
|
Hold Up
Time |
: |
>16ms |
|
Efficiency |
: |
85% @ Typical
Load |
|
MTBF |
: |
>100,000
Hours |
|
Protection |
: |
OVP/UVP/OPP/OTP/OCP/SCP |
|
Quality
Certificates |
: |
CE/FCC/UL/TUV/RCM/BSMI/CCC |
|
Connectors |
: |
20+4 Pin MB x
1 |
|
: |
4+4 Pin CPU + 12V x
1 |
|
: |
6+2 Pin PCI-e x
2 |
|
: |
SATA x 6 |
|
: |
4 Pin Peripheral x
3 |
|
: |
4 Pin Floppy x
1 |
