All stock codes associated to this product
PSTRS0550NPCWAU, PS-TRS-0550NPCWAU, SPTTTR2550WV2, SP-TT-TR2550W-V2
Overview

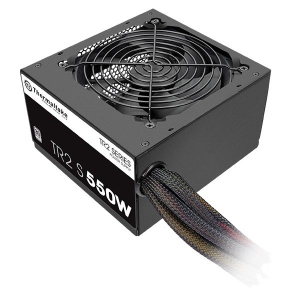

Incorporating various high-quality components, the new TR2 S Series models
are rated from 350W to 700W saves energy through its high efficiency of up to
86% and accommodates any mainstream build with the most demanding requirements.
An embedded intelligent cooling fan delivers excellent airflow at an
exceptionally low noise level. Additionally, the Single +12V rail design enables
non-stop usage with stable and reliable performance.

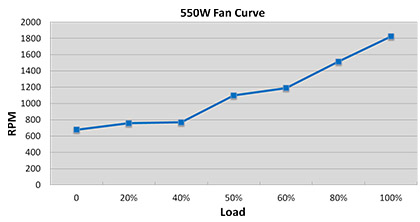

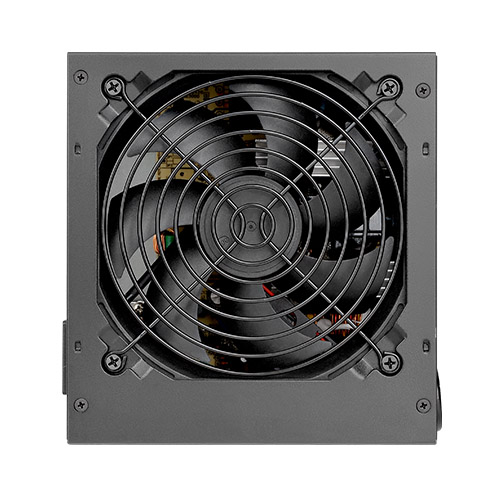

Ultra Quiet 120mm Fan |
TR2 S Series adopts 120mm cooling fan with intelligent RPM control guarantees
cool performance and silent operation.

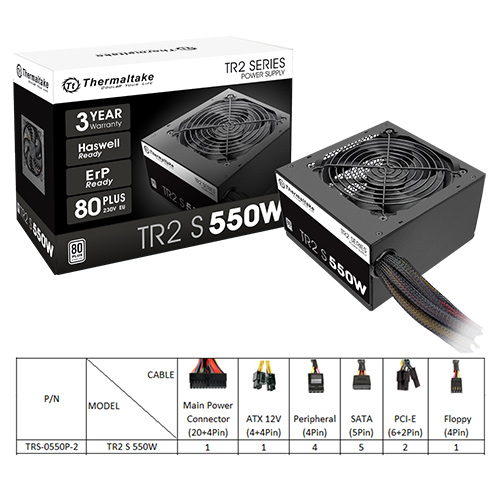

Multiple Connectors
The cables used for TR2 S Series are all sleeved, users are able to properly
route the cables in optimal location to prevent airflow blockage.
80 PLUS 230V Standard Certified and Haswell
Ready |

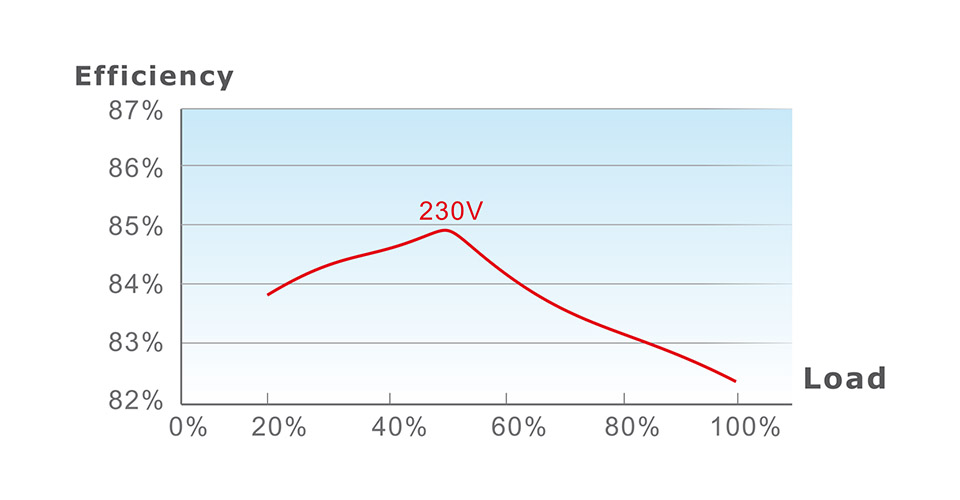

TR2 S Series saves energy through its high energy efficiency of up to 86% and
is 80 PLUS® 230V Standard certified.
82%, 85%, 82% efficiency at 20%, 50%, 100% Loading
Guaranteed

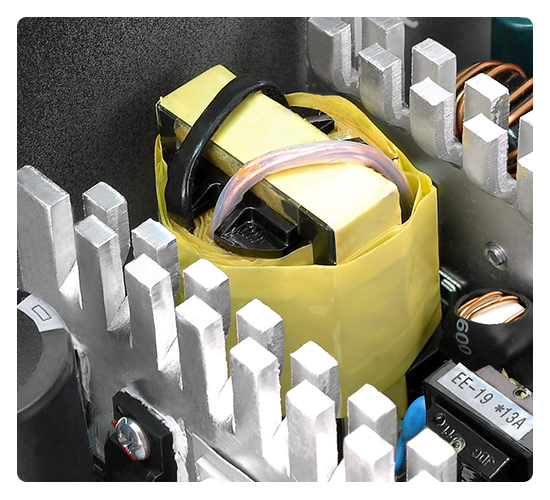

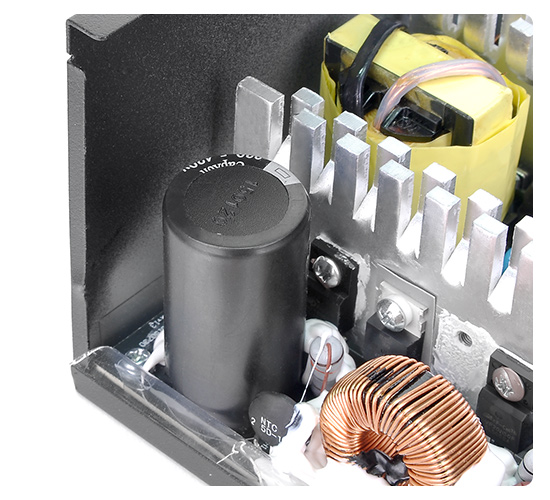

High-Quality Components
High quality components enable non-stop usage with stable and reliable
performance, no more capacitor explosion and leakage.
Single +12V Output
TR2 S Series is equipped with powerful +12V rails, superior performance under
all types of system loading. Please see the output specification below:
|
AC
INPUT |
Input
Voltage: 230V |
|
Input
Current: 7A max |
|
Frequency:
50Hz-60Hz |
|
DC
OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5Vsb |
|
Max Output
Current |
21A |
16A |
38A |
0.5A |
2.5A |
|
Max Output
Power |
105W |
456W |
6W |
12.5W |
|
Total
Power |
550W |
Specifications
|
P/N |
PS-TRS-0550NPCW**-2 |
|
Short
P/N |
TRS-0550P-2 |
|
Model |
TRS-550AH2NK |
|
Type |
Intel ATX 12V
2.3 |
|
Max. Output
Capacity |
550W |
|
Color |
Black |
|
Dimension (H x W x
D) |
86mm x 150mm x
140mm |
|
PFC (Power
Factor Correction) |
Active
PFC |
|
Power Good
Signal |
100-500
msec |
|
Hold Up
Time |
16msec (minimum) within
60% load |
|
Input
current |
7A
max |
|
Input Frequency
Range |
50 Hz - 60
Hz |
|
Input
Voltage |
230
Vac |
|
Operating
Temperature |
5 to +40 |
|
Operating
Humidity |
20% to
85%,non-condensing |
|
Storage
Temperature |
-40 to +55 |
|
Storage
Humidity |
10% to 95%,
non-condensing |
|
Cooling
System |
120mm Fan: 1800 R.P.M.
10% |
|
Efficiency |
82-86% efficiency @
20-100% load |
|
MTBF |
100,000 hrs
minimum |
|
Safety
Approval |
CE/CB/TUV |
|
PCI-E
Connector |
PCI-E 6+2pin x
2 |
* Specifications are subject to change without notice.
*
The product picture(s) is only for your reference, it may differ from the actual
product.
