Overview

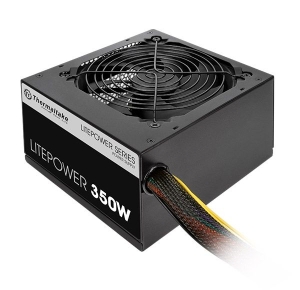

The Thermaltake Litepower GEN2 series is ideal for basic desktop systems with
lower power level consumption - where efficiency, reliability and low noise is
of utmost importance. The Litepower GEN2 series are built using the latest ATX
12V V2.3 standard and include a dedicated +12V rail, guaranteeing you
compatibility with all the latest desktop hardware. With the inclusion of over
voltage, over power and short-circuit protection - the Litepower GEN2 series
sets a new benchmark in offering industry leading reliability and performance at
an affordable price.

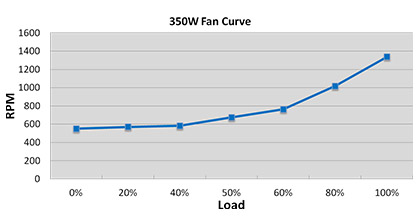

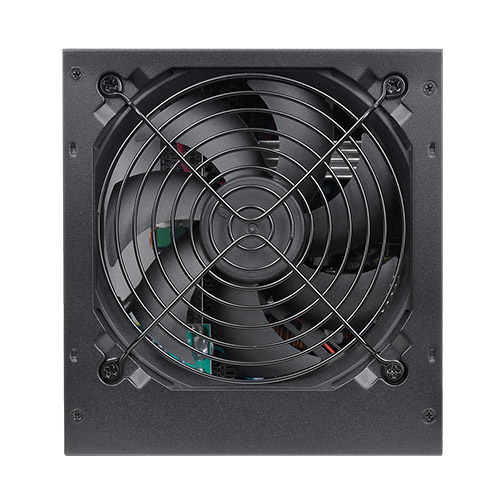

Ultra Quiet Fan
The built-in large 120mm cooling fan delivers exceptional thermal performance
and is whisper quiet in operation. Youll never have to worry about noise levels
with the Litepower GEN2 series even when your systems under load. Through our
renowned Thermaltake engineering weve built the Litepower GEN2 series with
advanced thermal efficiency, reducing heat output, lowering energy bills and
maintaining reliable system performance.

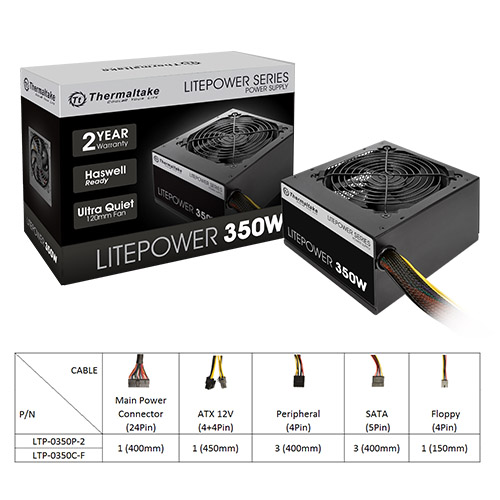

Elongated Sleeved Cablesy
The included extended black sleeved cables ensure straightforward and easy
cable routing to optimise your cable management improving airflow throughout
your system and guaranteeing hardware compatibility.
Utmost Reliability and Compatibility
The Litepower GEN2 series support the latest ATX 12V V2.3 Standard for
industry leading reliability and compatibility with state-of-the-art Intel Core
processes, AMD processors and advanced graphics technologies.
Powerful Dedicated +12V Output
The Litepower GEN2 series comes equipped with a powerful single +12V rail,
offering you outstanding system performance and compatibility with all the
latest hardware. Please see the Litepower GEN2 series range output
specifications:
|
AC
INPUT |
Input
Voltage: 230V |
|
Input
Current: 4A max |
|
Frequency:
50Hz-60Hz |
|
DC
OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5Vsb |
|
Max Output
Current |
16A |
13A |
26A |
0.5A |
2.5A |
|
Max Output
Power |
90W |
312W |
6W |
12.5W |
|
Total
Power |
350W |
Buy with Confidence
The Litepower GEN2 Series is built with industry leading quality control and
specifications. This product includes state of the art Over Voltage control and
Short-Circuit protection.
We have confidence in the products we make thats why every Litepower Series
PSU comes packed with our 2 Year Manufacturer Warranty.
Specifications
|
P/N |
LTP-0350P-2 |
|
Model |
LTP-350AL2NK |
|
Type |
ATX 12V
2.3 |
|
Max. Output
Capacity |
350W |
|
Color |
Black |
|
Dimension W / H /
D |
150mm x 86mm x
140mm |
|
PFC (Power
Factor Correction) |
W/Active
PFC |
|
Power Good
Signal |
100-500
msec. |
|
Hold Up
Time |
>16msec |
|
Input
Current |
4A |
|
Input Frequency
Range |
50Hz -
60Hz |
|
Input
Voltage |
230V |
|
Operating
Temperature |
+5°C to +35°C |
|
Operating
Humidity |
20% to
85%,non-condensing |
|
Storage
Temperature |
-40°C to +55°C |
|
Storage
Humidity |
10% to 95%,
non-condensing |
|
Cooling
System |
120mm Fan: 160010%
RPM |
|
MTBF |
100,000 hrs
minimum |
|
Safety
Approval |
CE, TUV SUD, CB, EAC
and RCM certified |
