All stock codes associated to this product
PSTRS0450NPCWAU2, PS-TRS-0450NPCWAU-2, II29164
Overview
The TR2 S Power Supply range is built for PC users that are looking for
reliable, high efficiency and dependable power at an affordable price. Built
with 80PLUS 230V certified efficiency with compatibility for all the latest
hardware, the TR2 S implements quality circuitry as well as our new quiet fan
technology. Together, the TR2 S Power Supply achieves up to 86% efficiency under
load whilst keeping your system whisper quiet - and is backed by our 3 Year
Thermaltake manufacturer warranty.

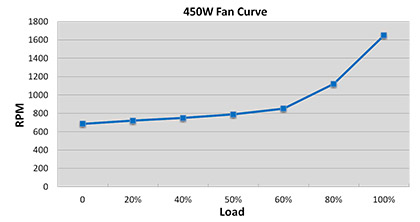

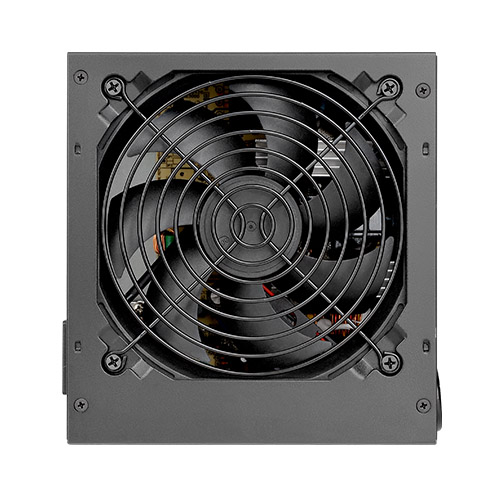

120mm Quiet Fan Technology
Weve developed our new quiet fan technology to ensure your systems running as
silently as possible at all times. With intelligent RPM fan control, the TR2 S
automatically adjusts its internal 120mm cooling fan only as the power supply
requires it delivering outstanding noise reduction and cooling thats nearly
silent in operation.
Clean minimalistic design
Our team of industrial designers have crafted the TR2 S to be clean cut in
both form and appearance. With a powder coated jet black finish, black sleeved
cables and restrained branding, we have a defined emphasis on minimalism to
ensure for a look that works with your PC build not against it.
80 PLUS® 230V Certified Efficiency
The TR2 S Series is built with highly efficient, quality made components that
deliver 80PLUS 230V Certified efficiency of up to 86%. The result is a power
supply that reduces heat output, lowers energy bills and provides reliable and
consistent power under all conditions.

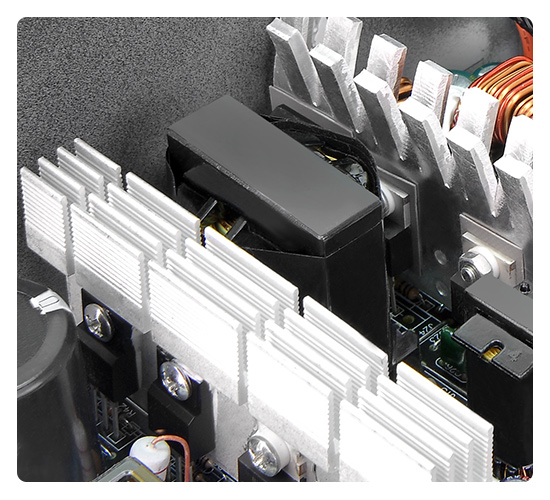

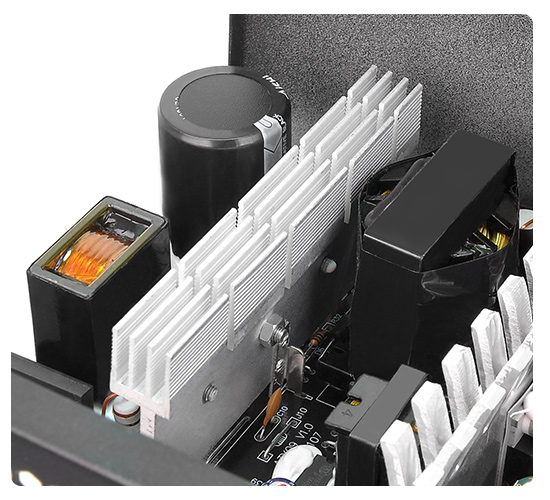

High-Quality Components
Thermaltake is renowned for our quality components and world class
manufacturing, and that doesnt stop with the TR2 S range. We implement the same
strict design and engineering guidelines as well as quality control into every
power supply we make, guaranteeing reliable performance and stability that you
can be confident in for years to come.
Single +12V Output
The TR2 S comes equipped with a powerful single +12V rail, offering you
outstanding system performance and compatibility with all the latest hardware.
Please see the TR2 S range output specifications:
|
AC
INPUT |
Input
Voltage: 230V |
|
Input
Current: 5A max |
|
Frequency:
50Hz-60Hz |
|
DC
OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5Vsb |
|
Max Output
Current |
20A |
14A |
33A |
0.5A |
2.5A |
|
Max Output
Power |
100W |
408W |
6W |
12.5W |
|
Total
Power |
450W |
Buy with Confidence
The TR2 S range is built with industry leading quality control and
specifications. This product includes state of the art Over Voltage control and
Short-Circuit protection.
Our 3 Year Manufacturer Warranty ensures peace of mind when buying
Thermaltake - we have confidence that our TR2 S power supply will provide you
with years of enjoyment and unmatched reliability.
Specifications
|
P/N |
PS-TRS-0450NPCW**-2 |
|
Short
P/N |
TRS-0450P-2 |
|
Model |
TRS-450AH2NK |
|
Type |
Intel ATX 12V
2.3 |
|
Max. Output
Capacity |
450W |
|
Color |
Black |
|
Dimension (H x W x
D) |
86mm x 150mm x
140mm |
|
PFC (Power
Factor Correction) |
Active
PFC |
|
Power Good
Signal |
100-500
msec |
|
Hold Up
Time |
16msec (minimum) within
60% load |
|
Input
current |
5A
max |
|
Input Frequency
Range |
50 Hz - 60
Hz |
|
Input
Voltage |
230
Vac |
|
Operating
Temperature |
5°C to +40°C |
|
Operating
Humidity |
20% to
85%,non-condensing |
|
Storage
Temperature |
-40°C to +55°C |
|
Storage
Humidity |
10% to 95%,
non-condensing |
|
Cooling
System |
120mm Fan: 1800 R.P.M.
10% |
|
Efficiency |
82-86% efficiency @
20-100% load |
|
MTBF |
100,000 hrs
minimum |
|
Safety
Approval |
CE/CB/TUV |
|
PCI-E
Connector |
PCI-E 6+2pin x
2 |
