Overview
Performance, reliability, and the convenience of modular cabling for
basic system upgrades
CX Series Modular power supply units are an excellent choice for basic system
builds and desktop PC computer upgrades, offering high reliability, low noise,
and the flexibility of modular cabling.
Low Noise
80 PLUS Bronze certified efficiency and clever fan design allow for little or
no detectable fan noise during regular operation.
Faster installation and better-looking builds
The modular cabling system lets you use only the cables you need. You get to
save space and reduce clutter for a cleaner-looking build and improved
airflow.
Reliable and compatible
CX Series Modular is built and tested to strict standards for trouble-free
installation and smooth operation.
Good looks
The matte black finish, black-sleeved cables and black connectors help give
your system a restrained, high-tech look.
Corsair engineering and quality control
Every Corsair power supply is designed by our California engineering team and
built to our exact specifications. The same care that goes into the design and
testing of our renowned high-power enthusiast power supplies also goes into the
CX Series Modular, because you need confidence and reliability regardless of
your build budget.
Modular cabling system
Since the peripheral power cables arent hard-wired to the power supply, you
can connect only the cables you need for your exact configuration of PCI-E cards
and storage devices. The rest of the cables stay in the box, and not in your PCs
case where they can add to the clutter and interfere with airflow.
Large-diameter, thermally controlled fan
Once youve installed a PSU, you shouldnt have to think about it. Employing a
thermally controlled fan makes the CX Series Modular quieter at idle, and the
large diameter reduces noise even when youre pushing your system hard.
Specifications
|
Package
contents |
CX Series Modular ATX
Power Supply |
|
|
Modular cable
pack |
|
|
|
|
Compatibility |
Auto-switching
circuitry provides universal AC input from 100V 240V |
|
|
Supports ATX12V
2.4/2.3/2.2/2.01 and EPS12V 2.92 standards |
|
|
|
|
Features |
Up to 85% energy
efficiency means less heat generation and lower energy
bills |
|
|
0.99 Active Power
Factor Correction provides clean and reliable power |
|
|
Universal AC input from
90-264V |
|
|
A dedicated single +12V
rail offers maximum compatibility with the latest
components |
|
|
Over-voltage and
over-power protection, under-voltage protection, and short circuit
protection provide maximum safety to your critical system
components |
|
|
Extra long
fully-sleeved cables support full tower chassis |
|
|
ErP Lot 6
Compliant |
|
|
A five year warranty
and lifetime access to Corsairs legendary technical support and customer
service |
|
|
|
|
Weight |
3.27kg |
|
MTBF |
100,000
hours |
|
80 PLUS
Certification Level |
Bronze |
|
Power |
550
Watts |
|
Zero RPM Fan
Mode |
No |
|
|
|
|
Fan Bearing
Technology |
Sleeve |
|
Fan
size |
120mm |
|
Corsair Link
Support |
No |
|
Continuous Output
Rated Temperature (C) |
40C |
|
|
|
|
Modular |
Semi |
|
Cable
Type |
Low-Profile All
Black |
|
ATX
Connector |
1 |
|
EPS
Connector |
1 |
|
Floppy
Connector |
1 |
|
|
|
|
4-Pin Peripheral
Connector |
4 |
|
PCI-E
Connector |
2 |
|
SATA
Connector |
5 |
|
Plug
Type |
NA |
|

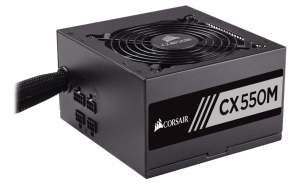

Corsair CX550M ATX Power
Supply |
|
AC Input
Rating |
DC Output Rating |
|
AC Input: 100V -
240V |
DC Output |
+3.3V |
+5V |
+12V |
-12V |
+5Vsb |
|
Current: 10A -
5A |
Max Load |
25A |
20A |
45.8A |
0.8A |
3A |
|
Frequency: 47Hz -
63Hz |
Maximum Combined Wattage |
120W |
550W |
9.6W |
15W |
|
Total Power:
550W |
