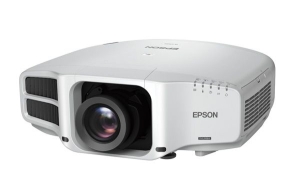

V11H762953 | Epson EB-G7400NL 3LCD 5500 Lumens WUXGA Projector

Overview

Flawless image quality and professional-grade reliability for large venues.

Key Features & Benefits

• 3 x Brighter Colours and reliable performance - 3LCD, 3-Chip Technology
• 4K Enhancement - Go beyond High Definition with 4K enhancement and native WUXGA (1920 x 1200) resolution for presentations, videos, digital signage and more
• Edge Blending - Combine multiple individual images to create one seamless giant image
• 3x Digital connections - Digital quality and distance flexibility
• HDBaseT - Transmit Full HD video and audio, Ethernet and serial communication through a single CAT 5/6 cable that can be extended up to 100m
• 360 Installation - Install on any plane, from horizontal to vertical and everything in between
• Powered lens shift, zoom and focus - Project perfectly uniform images with a new stepping motor and store up to 10 lens settings
• Ten optional lenses - Choose the ideal powered lens for your venue from a wide range from ultra-short throw to long throw

3LCD Technology

All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCDs true-to-life colour.

3x Brighter Colours with Epson*

Brilliant image quality requires high colour brightness (colour light output), and Epson® 3LCD projectors have 3x Brighter Colours than leading competitive projectors*.

One brightness measurement (lumens) is not enough. A projectors specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not be sure to ask for a projectors colour brightness specification.

* Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.

Powered Lens Shift, Zoom and Focus

The motorised lens shift covers a wide range, giving you a great deal of flexibility when installing the projector. A newly adopted stepping motor lets you make highly precise adjustments when employing edge blending, stacking and other techniques. Adjustments can be made via remote control or over a network, enhancing usability even for ceiling-mounted projectors.

Lens Position Memory

Up to 10 settings can be stored in the projector memory, including shift positions, focus and projection sizes.

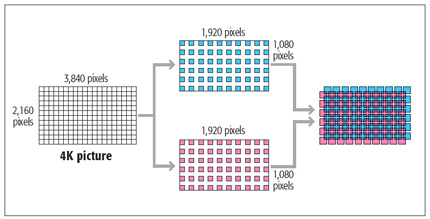

4K Enhancement

Support for 4K combined with Epson's 4K Enhancement Technology which shifts pixels diagonally by 0.5 pixels to double resolution delivers crisp, high-definition images.

Incredible HDBaseT and diverse connectivity

Connect with virtually any system including HDBaseT, HD-SDI, HDMI, DisplayPort, VGA, BNC and LAN connectivity. Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands.

And its over 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labour.

Optional HDBaseT transmitter

For your convenience, Epson offers an optional HDBaseT transmitter box as a companion piece to the G Series. Three inputs are featured for easy installation: HDMI, LAN, and RS-232 to output into a CAT-5/6 cable.

Split Screen¹

Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.

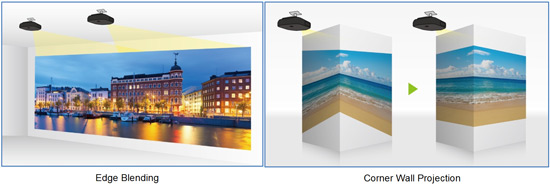

Advanced, integrated edge-blending technology

Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap. The G Series takes edge blending one step further with curved surface and corner wall support. Project on horizontal or vertical walls while also using edge blending to heighten the experience even more.

DICOM Simulation Mode²

DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. DICOM Simulation Mode²is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes. It enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14.

360-degree installation

The Epson G Series can be rotated 360 degrees in any direction for off-axis positioning flexibility. As a result, it can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.

Ultra Short Throw Lens

Choose the perfect lens for your venue, including an ultra-short-throw (UST) zero offset lens³for environments with little space. This produces a 200-inch image from only 1.5m away and has lens shift of +17% vertical and +/- 10% horizontally for added flexibility.

Ten optional lenses

For added flexibility, the G Series offers a total of ten lenses, including middle, wide, long, short and ultra-short throw that allow users to choose the lens most suited for their environment. A quick-release lever allows for a fast, easy lens exchange.

Easy Management®

The EasyMP® Monitor tool makes it easy to monitor and control all networked Epson projectors, set up email notifications, verify and change internal settings, and more. You can also remotely power down your projector(s) to extend the lamp life and save energy.

Schedule function

Save energy using the convenient Schedule function. And, easily control the projector at non-networked venues. The embedded clock inside the projector enables it to do scheduled tasks without having the network standby mode on.

Protect your investment - long-life electrostatic air filter

The Epson G series electrostatic filter is designed to protect the optical engine, lamp and electronics from small dust particles that can enter any projector. It has a recommended 15,000- hour filter cleaning schedule³and can capture particles as small as three microns, due in part to its pleated, expanded design.

Easy maintenance

Offering convenient access to the lamps and filter, the G series makes maintenance easier than ever, even if the projector is ceiling mounted. The lamp cover is located on the rear side panel and there are no screws, so the lid can be removed without any special tools.

Centered lens design

Featuring a centered lens design, the G series makes installation easy to plan. Positioning the ceiling mount, screen and projector can be performed individually and independent of one another.

Arc correction

Using arc correction, you can adjust each side of a projected image in an arc or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.

Convenient test patterns

Make sure your presentation is setup correctly before you begin. The G Series features twelve test patterns including linearity, colour reproduction, bleeding and tone production. It even detects distortion.

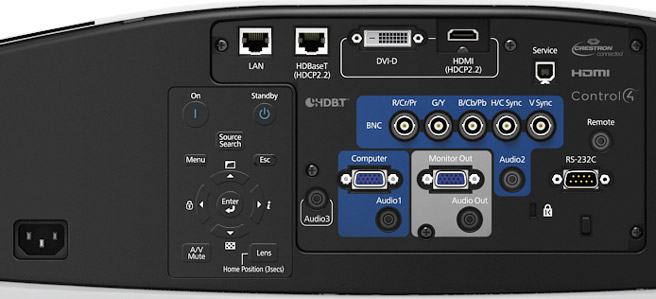

Connectivity Panel

¹Consult your user manual for input combinations

²This projector does not meet the DICOM standard Part 14 and should not be used as a medical diagnostic device.

Specifications
