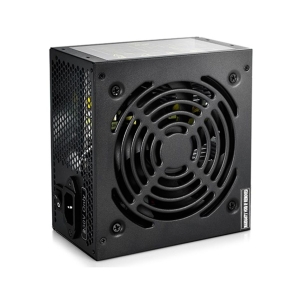

Deepcool DP-DE580-BK 580W DE PSU - ATX 12V, V2.31

Overview

Established in 1996, Deepcool have produced desktop and server coolers for globally renowned partners such as Dell, Fujitsu & Siemens. Originally inspired by the victory of Deep Blue over chess champion Gary Kasparov, Deepcool founders knew the computer had become our most powerful tool and dreamt their cooling products could attain the same stunning greatness as that ground breaking supercomputer program. Combining their respect for the achievements of Deep Blue with their growing cooling line up, the name Deepcool was coined!

Highlights

• 120mm PWM function fan.

• Dimensions: 150 x 140 x 86mm.

• Single channel +12V output.

• 120mm Intelligent Fan - Excellent noise-performance ratio.
• Safety and Long Lifespan - Multiple protective measures, at least 100,000 hours of use.

Connectors

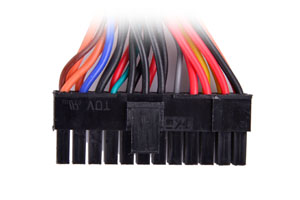

• 1x 24Pin main power connector.

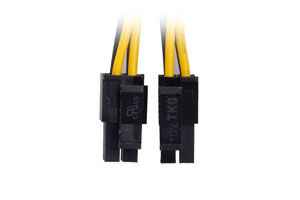

• 1x 12v suiting 4 and 8pin motherboards.

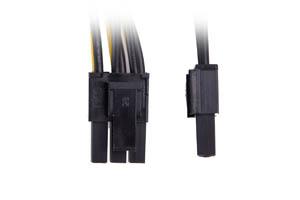

• 1x PCIE 6+2pin suiting 6 & 8pin graphics cards.

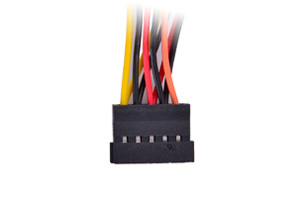

• 4x SATA 5pin.

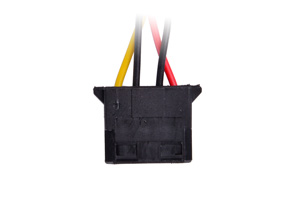

• 3x Peripheral 4pin.

Features

• Compliant Intel ATX 12V V2.31

• Widely acceptable input of voltage (160-264VAC), ensure the system working steady under an unsteady circumstance 120mm silent fan with PWM function

• Single channel +12V output

• CircuitShieldâ„¢ Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP)

• The longer cable supports cable management of middle tower case

• High reliability with an MTBF of at least 100,000 hours of use

• High cost-performance

Output

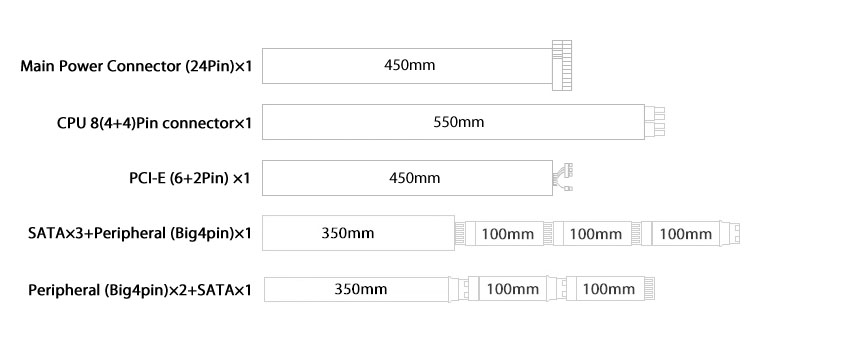

Cables

1 - Mainboard (24pin)

1 - ATX12V (4pin+4pin)

1 - PCI-E (6+2pin)

4 - SATA

3 - Peripheral (Big4pin)

Specifications
