All stock codes associated to this product

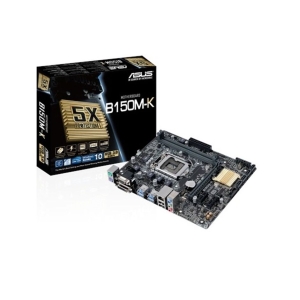

B150MK, B150M-K, 3251667
Overview
Great-value micro-ATX B150 with 5X Protection II for dependable stability,
LED-illuminated audio shielding and DDR4 support.
-
5X Protection II Advanced hardware safeguards for all-round
protection
-
DDR4 memory compatibility
-
Epic gaming audio with LED-illuminated shielding
-
Media-acclaimed UEFI BIOS with EZ Flash 3
Dependable Stability
Advanced Hardware Safeguards
Industry-leading 5X Protection II employs the finest components, excellent
circuit design, and exacting standards to guarantee quality and long-term
durability of your motherboard with all-round protection. For you, that means
exceptional protection and stability for your build the result of decades of
engineering experience from the world's leading motherboard brand.
LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs
signal-coupling technology and premium anti-EMI surface-mounted capacitors
ensuring a more reliable connection and better throughput, plus
electrostatically-guarded and surge-protected components for greater tolerance
to static electricity and improved protection against surges.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your
chipset, connectivity ports, and audio codecs from damage caused by unexpected
high-level voltages from unstable or inferior power supplies.
DRAM Overcurrent Protection
Short-circuit damage prevention.
Onboard resettable fuses prevent overcurrent and short-circuit damage. This
extends beyond I/O ports to DRAM to safeguard the lifespan of both your system
and connected devices.
DIGI+ VRM
Precision control for stable power.
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based
on real-time demands, reducing energy waste and improving system stability.
Stainless-Steel Back I/O
3X corrosion-resistance for greater durability.
Corrosion-resistant stainless steel back I/O panels bonded with chromium
oxide have a lifespan that's three times (3X) longer than ordinary panels.
ESD Guards
Electrostatic discharge (ESD) can happen suddenly, and its damaging effects
are easily underestimated. ASUS ESD Guards are tested to very high standards,
capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We
employ an active protective circuit design to guard your system against
electrostatic interference and damage, providing greater component
longevity.
Superb Performance
DDR4 Support
Make your memory go faster.
With DDR4, you'll accelerate memory frequencies up to an incredible to
2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured
the best compatibility.
Enjoy the DDR4 benefits with ASUS 100 series. (DDR4 vs
DDR3)
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to
make it even more appealing. Whether you're a PC novice or a seasoned
overclocker, the EZ and Advanced Modes help you find your way, quickly and
easily.
EZ Flash 3
Update the latest BIOS via the internet, and from within the BIOS.
S.M.A.R.T
Check up your storages devices' Self-Monitoring, Analysis, and Reporting
Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they're
about to fail.
Q-Fan Control
You can configure the fan's operating speed manually, or use the easy
pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed
modes!
My Favorites
Quickly find tuning options and add preferred tools to the list.
EZ Mode
Intuitive Graphical Fan Control:
Fine-tune individual fans simply by dragging a curve with the mouse.
EZ XMP:
Improve your DRAM performance with a click.
SATA Information:
View SATA port details for easy device recognition.
Fast Clock Adjustment:
Use mouse controls to change the time and date.
Advanced Mode
Last Modified Log:
Track last change and save preferred profiles onto a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
Ultrafast Transfer Speed
Instant front-panel USB 3.0 Experience
We've put USB 3.0 right where you need it two super-speed ports on the front
panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with
instant plug-and-play connectivity, so no more back-breaking contortions in the
hunt for hard-to-reach rear ports!
Gaming Audio
Gear up! Win the battlefield
Beautiful LED-illuminated trace paths brighten your build and highlight
noise-isolated, precision-shielded, interference-eliminated onboard audio like
you've never before experienced!
LED-illuminated design
Brighten up your build with the gorgeous illuminated audio trace path.
Noise Isolation
Audio shielding ensures precision analog/digital separation and greatly
reduced multi-lateral interference.
Separate layers for left and right tracks ensures both channels deliver
consistent, equal quality.
Audio Enjoyment
Premium Japanese audio capacitors provide warm, natural, and immersive sound
with exceptional clarity and fidelity.
Easy PC DIY
Q-Slot
Effortless PCI Express component removal.
The large winged clip is easy to reach and easy to operate. Just press the
Q-Slot clip lightly, and graphics card just pop out. Installing or removing even
the biggest graphics cards is no sweat!
Q-DIMM
Easy memory removal
Even if you work with a smaller case, just push down on the one-sided clip
and push or pull RAM modules in or out couldn't be simpler!
Optimized Cooling
Fan Xpert
Dedicated CPU and case fan controls.
Exclusive Fan Xpert ensures every fan achieves the best balance of cooling
performance and low noise and with our 100 series boards and their
hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment
lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode
to scan and detect all fan characteristics for single-click customization!
One Stop Control
AI Suite 3
One-stop access to innovative ASUS features.
ASUS AI Suite 3 offers a brand-new user experience through a clearer and more
attractive interface with support for larger monitors. It consolidates all
exclusive ASUS features into one simple-to-use package, allowing you to
supervise overclocking, energy consumption, fan speeds, voltages and more. This
all-in-one app offers diverse and easy to use functionality, with no need to
switch back and forth between different utilities.
Intel CPU and chipset features
Intel® B150 Express Chipset
The Intel® B150 Express is a single-chipset design that supports
6th-generation Intel LGA1151 Core™ i7 / Core i5 / Core i3 / Pentium® / Celeron®
processors. It provides improved performance by utilizing serial point-to-point
links, allowing increased bandwidth and stability. It natively supports up to
six USB 3.0 ports, six SATA 6Gbit/s ports, and PCIe 3.0 lane speed support for
faster data retrieval. Intel® B150 Express chipset also supports iGPU
functionality, so you'll enjoy the very latest Intel integrated graphics
performance.
Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core
i3/Pentium/Celeron processors
This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron
processors in the LGA1151 package, with graphics, memory and PCI Express
controllers integrated to support onboard graphics output with dedicated
chipsets, two-channel (2-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for
great graphics performance.
Intel® SBA support
Intel® SBA (Small Business Advantage) is a combination of hardware and
software that provides unique security and productivity capabilities designed
for small businesses. Intel® SBA requires MEI drivers (AMT host software kit) be
installed.
Platform requirements:
Windows® 7 (32/64-bit) / 8.1 (64-bit) / 10 (64-bit) PCH with 6th-generation
Intel® Core™ processor (100 Series platforms) with 6.5MB Intel® Management
Engine (ME) 11.0 firmware installed
CPU and chipset requirements:
Intel® Core™ i3/i5/i7 with one of these chipsets: B150, H170, Q170 The Intel®
Management Engine software kit must be installed (the Local Manageability
Service and the Intel ® Management Engine Interface must be installed and
running.)
*Local administrator rights on the target machine
*Some
models without the 6.5MB Intel Management Engine firmware do not support Intel
SBA. Please refer to the specifications sheet for details.
*Visit
the ASUS website at www.asus.com for the latest CPU QVL (Qualified Vendors
List).
* Specifications and features vary by model, and all images are
illustrative. Please refer specification pages for full details.
Specifications
|
CPU
|
Intel® Socket 1151 for
6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
Processors |
|
|
Supports Intel®14 nm
CPU |
|
|
Supports Intel Turbo
Boost Technology 2.0 |
|
|
* The Intel® Turbo
Boost Technology 2.0 support depends on the CPU
types. |
|
|
* Refer to www.asus.com for CPU
support list |
|
|
|
|
Chipset
|
Intel®
B150 |
|
|
|
|
Memory
|
2 x DIMM, Max. 32GB,
DDR4 2133 MHz Non-ECC, Un-buffered Memory * |
|
|
Dual Channel Memory
Architecture |
|
|
Supports Intel® Extreme
Memory Profile (XMP) |
|
|
* Hyper DIMM support is
subject to the physical characteristics of individual
CPUs. |
|
|
* Refer to www.asus.com for the
Memory QVL (Qualified Vendors
Lists). |
|
|
* The maximum memory
frequency supported varies by processor. |
|
|
|
|
Graphic
|
Integrated Graphics
Processor- Intel® HD Graphics support |
|
|
Multi-VGA output
support : DVI-D/RGB ports |
|
|
- Supports DVI-D with
max. resolution 1920 x 1200 @ 60 Hz |
|
|
- Supports RGB with
max. resolution 1920 x 1200 @ 60 Hz |
|
|
Maximum shared memory
of 1024 MB |
|
|
Supports Intel® InTru™
3D, Quick Sync Video, Clear Video HD Technology,
Insiderâ„¢ |
|
|
|
|
Expansion Slots
|
1 x PCIe 3.0/2.0 x16
(x16 mode, gray) |
|
|
2 x PCIe 3.0/2.0
x1 |
|
|
|
|
Storage
|
Intel® B150
chipset : |
|
|
6 x SATA 6Gb/s port(s),
gray |
|
|
|
|
LAN
|
Realtek RTL8111H, 1 x
Gigabit LAN Controller(s) |
|
|
|
|
Audio
|
Realtek® ALC887
8-Channel High Definition Audio CODEC *1 |
|
|
- Supports :
Jack-detection, Front Panel Jack-retasking |
|
|
|
|
Audio Feature
: |
- LED-illuminated
design - Brighten up your build with the gorgeous illuminated audio trace
path. |
|
|
- Audio Shielding:
Ensures precision analog/digital separation and greatly reduced
multi-lateral interference |
|
|
- Dedicated audio PCB
layers: Separate layers for left and right channels to guard the quality
of the sensitive audio signals |
|
|
- Premium Japanese-made
audio capacitors: Provide warm, natural and immersive sound with
exceptional clarity and fidelity |
|
|
|
|
USB Ports
|
Intel® B150
chipset : |
|
|
6 x USB 2.0/1.1 port(s)
(2 at back panel, black, Type-A, 4 at mid-board) |
|
|
|
|
|
Intel® B150
chipset : |
|
|
6 x USB 3.0/2.0 port(s)
(4 at back panel, blue, Type-A, 2 at mid-board) |
|
|
|
|
Special Features
|
ASUS 5X Protection
II : |
|
|
- ASUS LANGuard - 2.5X
higher surge tolerance |
|
|
- ASUS Overvoltage
Protection - World-class circuit-protecting power
design |
|
|
- ASUS DIGI+ VRM - 5
Phase digital power design |
|
|
- ASUS DRAM Overcurrent
Protection - Prevents damage from short circuits |
|
|
- ASUS Stainless-Steel
Back I/O - 3X corrosion-resistance for greater
durability |
|
|
|
|
ASUS EPU
: |
-
EPU |
|
|
|
|
ASUS Exclusive
Features : |
- AI Suite
3 |
|
|
- Ai
Charger |
|
|
-
Anti-Surge |
|
|
- USB 3.0
Boost |
|
|
- Disk
Unlocker |
|
|
- Mobo
Connect |
|
|
- PC
Cleaner |
|
|
|
|
ASUS Quiet Thermal
Solution : |
- Stylish Fanless
Design Heat-sink solution |
|
|
- ASUS Fan
Xpert |
|
|
|
|
ASUS EZ DIY
: |
- ASUS CrashFree BIOS
3 |
|
|
- ASUS EZ Flash
3 |
|
|
- ASUS UEFI BIOS EZ
Mode |
|
|
- Push
Notice |
|
|
|
|
ASUS Q-Design
: |
- ASUS
Q-Slot |
|
|
- ASUS
Q-DIMM |
|
|
|
|
Media
Streamer |
Operating System
Support |
|
|
Windows® 10 ,
64bit |
|
|
Windows® 8.1 ,
64bit |
|
|
Windows® 7 ,
32bit/64bit *2 |
|
|
|
|
Back I/O Ports
|
1 x PS/2 keyboard
(purple) |
|
|
1 x PS/2 mouse
(green) |
|
|
1 x
DVI-D |
|
|
1 x
D-Sub |
|
|
1 x LAN (RJ45)
port(s) |
|
|
4 x USB 3.0 (blue)
Type-A |
|
|
2 x USB
2.0 |
|
|
3 x Audio
jack(s) |
|
|
|
|
Internal I/O Ports
|
1 x USB 3.0
connector(s) support(s) additional 2 USB 3.0 port(s)
(19-pin) |
|
|
2 x USB 2.0
connector(s) support(s) additional 4 USB 2.0 port(s) |
|
|
1 x COM port(s)
connector(s) |
|
|
6 x SATA 6Gb/s
connector(s) |
|
|
1 x CPU Fan
connector(s) (1 x 4 -pin) |
|
|
1 x Chassis Fan
connector(s) (1 x 4 -pin) |
|
|
1 x S/PDIF out
header(s) |
|
|
1 x 24-pin EATX Power
connector(s) |
|
|
1 x 4-pin ATX 12V Power
connector(s) |
|
|
1 x Front panel audio
connector(s) (AAFP) |
|
|
1 x System
panel(s) |
|
|
1 x Clear CMOS
jumper(s) |
|
|
|
|
Accessories
|
User's
manual |
|
|
I/O
Shield |
|
|
2 x SATA 6Gb/s
cable(s) |
|
|
1 x Supporting
DVD |
|
|
|
|
BIOS
|
128 Mb Flash ROM, UEFI
AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Quick
Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial
Presence Detect) memory information |
|
|
|
|
Manageability
|
WfM 2.0, DMI 3.0, WOL
by PME, PXE |
|
|
|
|
Support Disc
|
Drivers |
|
|
ASUS
Utilities |
|
|
EZ
Update |
|
|
Anti-virus software
(OEM version) |
|
|
|
|
Form Factor
|
mATX Form
Factor |
|
|
8.9 inch x 7.2 inch (
22.6 cm x 18.3 cm ) |
|
|
|
|
Note
|
*1: Use a chassis with
HD audio module in the front panel to support an 8-channel audio
output. |
|
|
*2: Please refer to
ASUS website and download Windows 7 installation guide and ASUS EZ
installer to install Windows 7. |
- Specifications and features vary by model, and all
images are illustrative. Please refer specification pages for full
details.
- Precise specifications and features vary by model .
Please refer to the specification page
- The product (electrical , electronic equipment,
Mercury-containing button cell battery) should not be placed in municipal
waste. Check local regulations for disposal of electronic
products.
- All specifications are subject to change without notice.
Please check with your supplier for exact offers. Products may not be
available in all markets.
- PCB color and bundled software versions are subject to
change without notice.
- Brand and product names mentioned are trademarks of their
respective companies.
