Overview

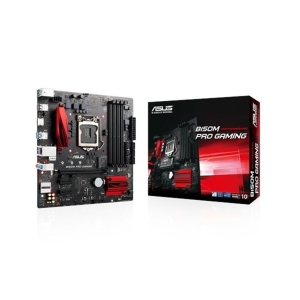

Well-designed micro-ATX gaming board with gaming-optimized features and NVMe
M.2.
-
LGA1151 socket for 6th-genereation Intel® Core™ i7 / Core i5 / Core i3,
Pentium® and Celeron processors
-
Dual-channel DDR4 2133 support
-
SupremeFX:Flawless
audio that makes you part of the game
-
Intel Gigabit Ethernet and LANGuard: Top-speed protected
networking
-
M.2: Ultra-speedy transfers for faster gaming
-
Gamer's Guardian: Highly-durable components and smart DIY
features
FLAWLESS AUDIO THAT MAKES YOU PART OF THE GAME!
Be the best on the battlefield with B150M Pro Gaming's truly immersive
SupremeFX audio and experience sound so alive with realism that it hands you the
vital competitive edge needed to win. SupremeFX sounds stupendous and puts both
your ears and frags in front of everyone else!
SupremeFX
Shielded audio, superior sound
ASUS-exclusive SupremeFX technology delivers high-fidelity, near-lossless
audio no matter how frantic your game becomes. The purity and stability of the
remarkable 115dB signal-to-noise ratio (SNR) is assured, with a shielded design,
electromagnetic-interference (EMI) cover and voltage-protected 5V power supply.
Supreme FX's superior components, including the trusted Realtek ALC1150 codec,
maximize acoustic performance and eliminate interference so you hear only the
very best from your gaming headset or speakers!
Illuminated red line shielding |
Banish analog interference and enjoy eye-catching, customizable lighting
effects.
EMI Cover
Effective shielding against electromagnetic interference preserves the
integrity of audio signals for the best quality.
300O-headphone amplifier
Drive some of the very best headphones available for exceptional gaming-audio
and music-listening experiences.
Premium Nichicon® audio capacitors
Fine-quality Japanese-made components that produce a warmer, natural sound
with exceptional clarity and fidelity.
TOP-SPEED PROTECTED NETWORKING
Only the quickest shot survive, so B150M Pro Gaming banishes lag — letting
you annihilate your foes as fast as your trigger finger! Our engineers pack in
only the best networking technology, including tournament-level Intel® Gigabit
Ethernet and ASUS-exclusive LANGuard to keep your connection fast, so always
fire first and watch your enemies fall.
Intel
Gigabit Ethernet |
More throughput, less CPU usage and great gaming experiences
Featuring the very latest Intel Ethernet (I219-V) for faster, smoother gaming
always. Intel's LAN has the serious double advantage of reducing CPU overhead
and offering exceptionally high TCP and UDP throughput. This significantly
reduces the processor's workload, so there's more power for your game and your
gameplay.
LANGuard
Pumped-up throughput. Best surge protection.
ASUS LANGuard is hardware-level networking protection that employs
signal-coupling technology and premium anti-EMI surface-mounted capacitors for
rock-solid gaming connections and better throughout for online play, plus
electrostatically-guarded and surge-protected components for greater tolerance
to static electricity and improved protection against surges.
PERFORMANCE LEVEL UP
Speed up with onboard M.2 up to 32Gbit/s
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbit/s
data-transfer speeds. It is the perfect choice for an operating system or
application drive, making your whole PC or professional apps work as fast as
possible.
One-stop
performance-optimization panel |
Maxed-out performance means maximum gaming thrills, and with exclusive AI
Suite 3's dashboard-style control panel you'll fine-tune almost every aspect of
your B150M Pro Gaming-based system. Get the best balance between performance,
cooling, stability, efficiency and aesthetics all via a simple and intuitive
interface.
Award-winning BIOS design
The smoothest, slickest mouse-controlled graphical BIOS has been improved to
make it even more appealing. Whether you're a PC novice or a seasoned
overclocker, the EZ and Advanced Modes help you find your way. In EZ Mode you
can get set up very quickly, applying the date and time, fan profiles and Intel
Extreme Memory Profile (XMP) memory profiles. Switch to Advanced Mode to set up
favorites and shortcuts, record and review recent changes with Last Modified or
make notes in Quick Notes.
CrashFree BIOS 3
Never again worry about corrupted BIOS, as CrashFree BIOS 3 lets you restore
a PC to working order even when it won't boot!
EZ Flash 3
Update the latest BIOS via the internet, and from within the BIOS.
GAMER'S GUARDIAN FOR REAL-WORLD PROTECTION
Protect your back in the game and let B150M Pro Gaming protect all sides in
the real world! Motherboard self-protection with loads of brilliant defenses,
including our unique smart DIY features ensures long-term gaming is in your
future.
Digi+ VRM
Digi+ VRM voltage-regulator module (VRM) is one of the finest in the
industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all
times!
DRAM overcurrent protection
All connection ports and DRAM are protected against overcurrent and
short-circuit damage by onboard resettable fuses, extending your motherboard's
life.
Highly durable components
Fine-quality, super-tough components are our watchwords. We fit only superior
chokes, plus durable capacitors engineered to resist extreme temperature
variations of between -55C and 105C 110% better than the industry standard.
Stainless steel back I/O
Crafted from chromium-plated, corrosion-resistant stainless steel, the
input/output (I/O) panel is three times longer than ordinary panels!
Q-shield
0 pain - Protect your hands from nicks and cuts.
Q-Slot
1 Clip - to swap or secure your graphics card.
Q-DIMM
1 -sided clips mean handling memory modules is a cinch —
super simple and super secure.
ESD GUARDS
2X-greater ESD protection for extended component
lifespan
Electrostatic discharge (ESD) could mean game over for your rig, so B150M Pro
Gaming is protected by ESD Guards to actively prevent ESD ensuring longer
component lifespan and providing system resilience that's two times greater than
industry standards. Game on!
Audio Connector - Capacitor protection on both front and
back audio-output circuits.
LAN Connector - ESD TVS diode protection and an anti-surge
LAN connector protects against extreme events, such as lightning strikes.
USB 3.0/2.0 connectors - On-circuit
transient-voltage-suppression (TVS) diodes and capacitor protection for
surface-mount and dual-inline packages.
Keyboard and mouse connector - Additional on-circuit ESD TVS
diodes.
BUILT FOR GAMING
B150M Pro Gaming is built for play, shaped by professional gamers and tested
for gaming perfection strong enough storm through the industry's most punishing
labs workouts. We engineer and test for the finest quality, longevity,
performance, stability and compatibility. Our world-class engineers are
themselves avid gamers, and combine their own passion with the skills and
demands of some of the planet's best players to create innovative gaming
features everyone will crave. With B150M Pro Gaming you do more than just play
you'll experience gaming on the edge of reality.
THE POWER OF INTEL
Intel B150 Chipset
The Intel B150
is a single-chipset design that supports 6th-generation Intel LGA1151 Core
i7/Core i5/Core i3/Pentium/Celeron processors. It provides improved performance
by utilizing serial point-to-point links, allowing increased bandwidth and
stability. It natively supports up to six USB 3.0 ports, six SATA 6Gbit/s ports,
and PCIe 3.0 lane speed support for faster data retrieval. Intel B150 chipset
also supports iGPU functionality, so you'll enjoy the very latest Intel
integrated graphics performance.
Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core
i3/Pentium/Celeron processors |
This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron
processors in the LGA1151 package, with graphics, memory and PCI Express
controllers integrated to support onboard graphics output with dedicated
chipsets, two-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for
great graphics performance.
Specifications
|
CPU
|
Intel® for 6th
Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
|
|
|
|
|
Chipset
|
Intel®
B150 |
|
|
|
|
Memory
|
4 x DIMM, Max. 64GB,
DDR4 2133 MHz Non-ECC, Un-buffered Memory |
|
|
|
|
Graphic
|
Integrated Graphics
Processor- Intel® HD Graphics support |
|
|
VGA output support :
HDMI port |
|
|
- Supports HDMI with
max. resolution 4096 x 2160 @ 24 Hz |
|
|
Maximum shared memory
of 1024 MB |
|
|
Supports Intel® InTru™
3D, Quick Sync Video, Clear Video HD Technology,
Insiderâ„¢ |
|
|
|
|
Expansion Slots
|
1 x PCIe 3.0/2.0 x16
(x16 mode) |
|
|
2 x PCIe 3.0/2.0
x1 |
|
|
|
|
Storage
|
Intel® B150 chipset
: |
|
|
1 x M.2 Socket 3, ,
with M key, type 2242/2260/2280 storage devices support (both SATA &
PCIE mode)*1 |
|
|
|
|
LAN
|
Intel®
I219V |
|
|
Anti-surge
LANGuard |
|
|
|
|
Audio
|
SupremeFX 8-Channel
High Definition Audio CODEC *2 |
|
|
- Supports :
Jack-detection, Front Panel MIC Jack-retasking |
|
|
- High quality 115 dB
SNR stereo playback output |
|
|
Audio Feature
: |
|
|
- SupremeFX Shieldingâ„¢
Technology |
|
|
|
|
USB Ports
|
Intel® B150
chipset : |
|
|
6 x USB 3.0/2.0
port(s) |
|
|
Intel® B150
chipset : |
|
|
6 x USB 2.0/1.1
port(s) |
|
|
|
|
Special Features
|
Gamer's
Guardian: |
|
|
- ESD Guards on LAN,
Audio, KBMS and USB3.0/2.0 ports |
|
|
- DRAM Overcurrent
Protection |
|
|
- Stainless Steel Back
I/O |
|
|
- Highly Durable
Components |
|
|
- DIGI+
VRM |
|
|
ASUS Exclusive
Features : |
|
|
- AI Suite
3 |
|
|
- Ai
Charger |
|
|
- ASUS UEFI BIOS EZ
Mode featuring friendly graphics user interface |
|
|
- USB 3.0
Boost |
|
|
- Disk
Unlocker |
|
|
ASUS Quiet Thermal
Solution : |
|
|
- Stylish Fanless
Design Heat-sink solution |
|
|
- ASUS Fan
Xpert |
|
|
ASUS EZ DIY
: |
|
|
- ASUS CrashFree BIOS
3 |
|
|
- ASUS EZ Flash
3 |
|
|
- Push
Notice |
|
|
ASUS Q-Design
: |
|
|
- ASUS
Q-Shield |
|
|
- ASUS
Q-Slot |
|
|
- ASUS
Q-DIMM |
|
|
Media
Streamer |
|
|
|
|
Operating System
Support |
Windows® 10 ,
64bit |
|
|
Windows® 8.1 ,
64bit |
|
|
Windows® 7 ,
32bit/64bit |
|
|
|
|
Back I/O Ports
|
1 x PS/2 keyboard/mouse
combo port(s) |
|
|
1 x
HDMI |
|
|
1 x LAN (RJ45)
port(s) |
|
|
4 x USB
3.0 |
|
|
4 x USB
2.0 |
|
|
3 x Audio
jack(s) |
|
|
|
|
Internal I/O Ports
|
1 x USB 3.0
connector(s) support(s) additional 2 USB 3.0
port(s) |
|
|
1 x USB 2.0
connector(s) support(s) additional 2 USB 2.0 port(s) |
|
|
1 x M.2 Socket 3 with M
Key design, type 2242/2260/2280 storage devices support (Supports both
SATA & PCIE SSD) |
|
|
1 x COM port(s)
connector(s) |
|
|
6 x SATA 6Gb/s
connector(s) |
|
|
1 x CPU Fan
connector(s) |
|
|
1 x Chassis Fan
connector(s) |
|
|
1 x 24-pin EATX Power
connector(s) |
|
|
1 x 8-pin ATX 12V Power
connector(s) |
|
|
1 x Front panel
connector(s) |
|
|
1 x Front panel audio
connector(s) (AAFP) |
|
|
1 x Clear CMOS
jumper(s) |
|
|
1 x 14-1 pin TPM
connector |
|
|
|
|
Accessories
|
User's
manual |
|
|
ASUS
Q-Shield |
|
|
2 x SATA 6Gb/s
cable(s) |
|
|
1 x M.2 Screw
Package |
|
|
1 x pack of cable
tie |
|
|
1 x Supporting
DVD |
|
|
1 x 12 in 1 Cable Label
(s) |
|
|
|
|
BIOS
|
128 Mb Flash ROM, UEFI
AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language
BIOS, ASUS EZ Flash 3, |
|
|
CrashFree BIOS 3, F6
Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12
PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory
information |
|
|
|
|
Manageability
|
WfM 2.0, DMI 3.0, WOL
by PME, PXE |
|
|
|
|
Support Disc
|
Drivers |
|
|
ASUS
Utilities |
|
|
ASUS EZ
Update |
|
|
Anti-virus software
(OEM version) |
|
|
|
|
Form Factor
|
mATX Form
Factor |
|
|
9.2 inch x 8.6 inch (
23.4 cm x 21.8 cm ) |
|
|
|
|
Note
|
*1:When the M.2 Socket
3 is operating in SATA mode, SATA port 1 will be
disabled. |
|
|
*2:Use a chassis with
HD audio module in the front panel to support an 8-channel audio
output. |
| Specifications and features vary by model, and all images are
illustrative. Please refer specification pages for full details. |
| *Precise specifications and features vary by model . Please
refer to the specification page |
| The product (electrical , electronic equipment,
Mercury-containing button cell battery) should not be placed in municipal
waste. Check local regulations for disposal of electronic products. |
| All specifications are subject to change without notice.
Please check with your supplier for exact offers. Products may not be
available in all markets. |
| PCB color and bundled software versions are subject to change
without notice. |
| Brand and product names mentioned are trademarks of their
respective companies. |
