Recording
Performance |
|

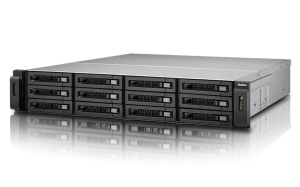

Max. number of HDD
supported |
12 |
|
Number of channels
Supported |
Up to
56 |
|
* Max. 64CH for camera
license expansion |
|
Recording
Performance |
Up to 30 fps at 1080P,
720P, VGA for each channel |
|
* Real performance may
vary by environment |
|
Recording
Throughput |
450
Mbps |
|
* Real performance may
vary by environment |
|
|
|
|

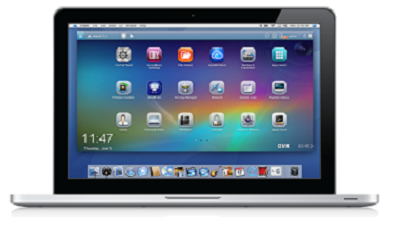

QVR
Desktop |
|
Multi-task
Support |
Multiple tasks run on
QVR desktop |
|
Default
Applications |
Control Panel (for
system configuration), Surveillance Settings, File Station, myQNAPcloud,
Backup & Expansion, App Center |
|
|
|
|

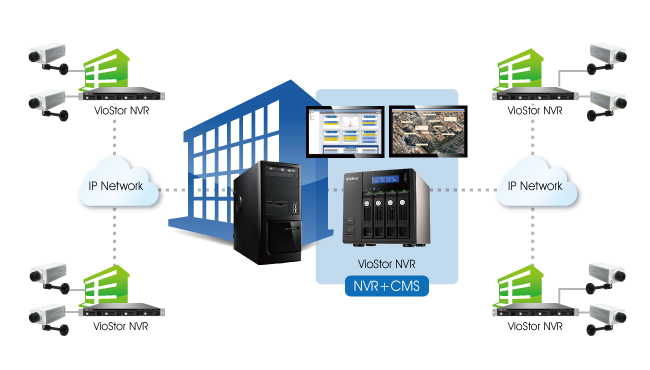

Central Management
System (QSCM Lite App) |
|
QSCM
Lite |
Download
and install for free from the QVR App Center to turn your NVR into
CMS server |
|
Central
Management |
Supports up to 256
channels and 16 servers |
|
Dashboard |
An interface that shows
the current status and historical trends of key
information |
|
Apply-to-All
Configuration |
Some server settings
can be synchronized by grouping identical NVR models, saving configuration
time |
|
Some recording settings
can be synchronized by grouping identical camera models, saving
configuration time |
|
Event
Management |
Centrally receive
events from multiple NVRs |
|
View
Layout |
Centrally configure the
view, adding the cameras from multiple NVRs |
|
Multi-layer
E-map |
Centrally setup
unlimited-layer E-maps for multiple NVRs |
|
Easily find out the
event location |
|
Easily see the ongoing
event status |
|
Manage multiple e-maps
by hyperlink |
|
User
Management |
QSCM Lite users can be
created and assigned to different user groups. |
|
Each user group can
have different permissions. |
|
Quad-monitor
Mode |
Primary monitor: Select
to show the live view, E-map, playback, and configuration
page |
|
Sub monitor: Select to
show the live view and E-map |
|
View
Content |
Flexibly view content
from mixed camera videos and E-maps |
|
Bookmark |
Place a vertical thin
bar and text details on video footage for easier event
investigation |
|
Multi Web Browsers
Support |
Supports Google Chrome,
Internet Explorer, Mozilla Firefox on Windows |
|
|
|
|

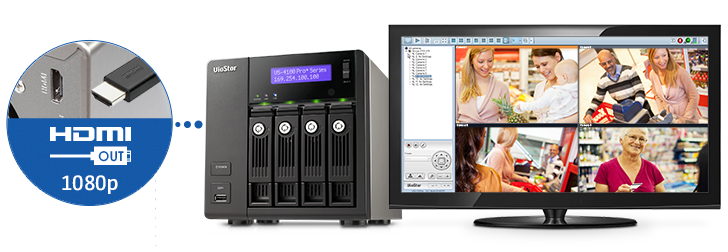

Full HD
Local Display |
|
Max. Resolution of HW
Decode Supported per Ch. |
Resolution up to Full
HD (1920x1080) per channel (H.264) |
|
Local Display
Performance |
Full HD 1080P
300FPS |
|
Display
Mode |
Local monitoring:
Multi-channel, sequential and full screen display
modes |
|
Local playback:
Multi-channel and full screen display modes |
|
Max. Channel Supported
per Page |
Local monitoring: Up to
36 channels per page |
|
Local playback: Up to 4
channels per page |
|

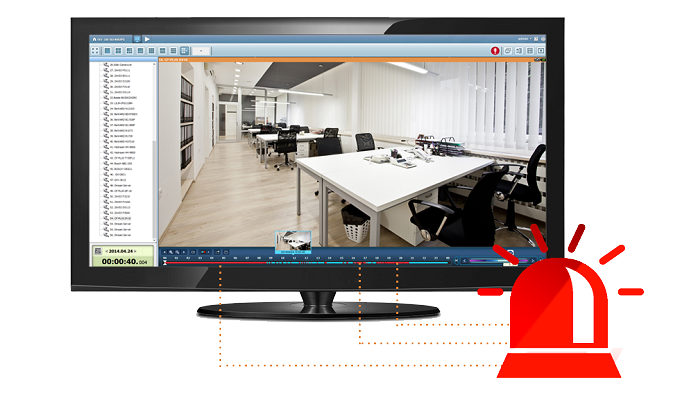

On-screen Event
Alert |
Yes |
|
Local Monitoring
Control |
Dewarping function for
fisheye cameras and Panomorph lens Manual recording, (two-way) audio*, PTZ
control (including optical zoom, focus control and preset position
control), digital zoom |
|
Joystick
Support |
Joystick support for
PTZ and preset position control |
|
Search
Mode |
By date & time,
timeline, and event |
|
Local Playback
Control |
Dewarping function for
fisheye cameras and Panomorph lens Play, pause, rewind, fast forward, slow
motion, frame by frame search, audio, digital zoom |
|
Recordings
Export |
Export multiple
recordings to external USB storage as standard AVI files, optimized QNAP
AVI files, QNAP encrypted AVI files |
|
Local
Configuration |
Quick configuration Can
modify administration password, network settings, time settings, disk
volume configuration, camera settings |
|
|
|
|
Remote Monitoring
(Windows) |
|
Multi-server
Monitoring |
QVR Client: Supports
max. 128 channels |
|
Display
Mode |
Multi-channel,
sequential and full screen display modes |
|
dual display
mode |
|
Max. Channel Supported
per Page |
Up to 64 channels per
page |
|
E-map |
Setup Multi-layer
E-maps for multiple NVRs |
|
Options to see the
ongoing event status on QVR monitoring page (for dual display mode) or new
window |
|
On-screen Event
Alert |
Yes |
|
Interactive Control
Buttons |
Manual recording, video
snapshot, (two-way) audio*, dewarping function for fisheye
cameras andPanomorph lens, PTZ mode (including click & go, PTZ
control, and auto cruising by preset position), preset position
control, digital zoom, instant playback, same-screen IP camera
configurations, camera information |
|
Options |
Video window highlight
when an event is triggered |
|
Joystick
Support |
Joystick support for
PTZ and preset position control |
|
|
|
|
Remote Playback
(Windows) |
|
Multi-channel
Playback |
Multi-channel,
sequential display modes |
|
Max. Channel Supported
per Page |
Up to 16 channels per
page |
|
Search
Mode |
By date
& time, timeline, event, and intelligent video analytics
(IVA) |
|
On-screen Event
Alert |
Yes |
|
Playback and Speed
Control with Shuttle Bar |
Play, pause, rewind,
fast forward, slow motion, frame by frame search |
|
Interactive Control
Buttons |
Audio, low
bandwidth mode, video snapshot, IVA settings, dewarping function
for fisheye camerasand Panomorph lens, PTZ mode (including click
& go, PTZ control, and auto cruising by preset position), digital
zoom, averagely time-divided playback, camera
information |
|
Intelligent
Video analytics (IVA) |
Motion detection,
missing object, foreign object, out of focus, and camera
occlusion |
|
Control |
Preview videos with
thumbnails |
|
Drag an area on the
video window to zoom in to see details |
|
Recordings
Export |
Export multiple
recordings to a client PC or NVR as standard AVI/ MP4 file, different
exporting resolutions supported |
|
Options |
Add
a digital watermark to exported
recordings |
|
|
|
|
QVR Client for
Mac |
|
QVR Client for
Mac |
Free
download from the QNAP Download Center and Mac App
Store |
|
Display
Mode |
Monitoring:
Multi-channel, sequential and full screen display
modes |
|
Playback:
Single-channel and full screen display modes |
|
Max. Channel Supported
per Page |
Local monitoring: Up to
16 channels per page |
|
Local playback: Single
channel per page |
|
On-screen Event
Alert |
Yes |
|
Monitoring
Control |
Audio, PTZ control
(including optical zoom, focus control and preset position control),
digital zoom |
|
Search
Mode |
By date & time,
timeline, and event |
|
Playback
Control |
Play, pause, rewind,
different speed control, audio, digital zoom |
|
Recordings
Export |
Export multiple
recordings to Mac |
|
Configuration |
Open an additional
browser window for configuration |
|
|
|
|

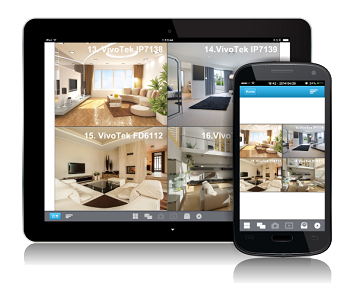

Mobile
Surveillance |
|
Vmobile |
Free download from the
App Center (iOS) and Google Play (Android) |
|
NVR
Search |
Yes, NVRs on the LAN
can be easily searched |
|
Display
Mode |
Mobile Monitoring:
Multi-channel, sequential display mode |
|
Mobile Playback:
Single-channel display mode |
|
Mobile Monitoring
Control |
PTZ control, digital
zoom, pause, snapshot, stream selection, image share (ex. Mail,
Facebook) |
|
Event
Notification |
Yes, event
notifications will be sent from Multiple NVRs |
|
Mobile Playback
Control |
Digital zoom, snapshot
Play, pause, fast forward, go to previous file, go to next
file |
|
Audio |
Yes |
|
|
|
|
Recording |
|
Supported
Models |
IP
cameras |
|
Generic
cameras |
|
Vcam App
to turn your mobile phone into an IP
camera |
|
|
|
Video
Compression |
H.264/ MPEG-4/ M-JPEG/
MxPEG (depending on the camera models) |
|
Recording
Mode |
Continuous/ scheduled/
manual recording |
|
Alarm recording by
multiple events |
|
Pre-alarm (up to 300
sec) and post-alarm (up to 300 sec) recording |
|
Round-the-clock
recording and smart recording when user-defined
stream is supported on the camera model |
|
Edge
recording |
|
Auto
snapshot |
|
|
|
Megapixel
Recording |
Supports megapixel
cameras (up to 40-megapixel) |
|
File
Format |
AVI (QNAP codec is
required for playback) |
|
Recording
Enhancement |
Real-time digital
watermarking |
|
Download &
Export |
Download recordings via
the QVR File Station, FTP, SMB/CIFS Recordings export on local playback
and remote playback (Windows and Mac) |
|
Advanced
Event Management |
|
Events |
Motion detection, alarm
input, connection failure, recording failure, and user-defined
event |
|
Actions |
Video recording, email
alert, SMS alert, buzzer, PTZ camera control, alarm output, and
user-defined action |
|
|
|
|
Backup &
Expansion |
|
External
Backup |
Copy recordings from
the local disk volume to an external storage device |
|
One Touch Video
Backup |
Press the One Touch
Video Backup button to backup recordings from external storage to USB
storage |
|
Remote
Replication |
Schedule video data
backup to a NAS on the local network |
|
Storage
Expansion |
Connect the VioStor NVR
to a Turbo NAS via network to enlarge the total storage capacity of the
VioStor NVR |
|
Cloud
Backup |
Easily upload the data
from the NVR to Amazon S3 or download the data from Amazon S3 to the
NVR |
|
|
|
|
Easy Configuration
and Management |
|
QVR
Desktop |
Multi-window,
multi-tasking |
|
Intelligent
desktop |
|
Main menu, smart
dashboard, drag-and-drop icons |
|
|
|
File
Station |
Access files using web
browsers, anytime and anywhere |
|
Securely share files by
URL |
|
Upload large
files |
|
|
|
myQNAPcloud |
Unique host name for
VioStor NVR |
|
Automatic port
forwarding on a UPnP router |
|
Cloud
Backup |
|
|
|
App
Center |
Download numerous free
on-demand apps |
|
License
Upgrade |
Flexibly expand the
number of channels to meet your demands by purchasing additional
licenses |
|
https://license.qnap.com/ModelBrowse.html?cid=93 |
|
|
|
|
Security
Management |
|
User Privilege
Management |
Different user types
and rights can be assigned to different QVR users |
|
Network Access
Protection |
Specify the connections
to be allowed and denied to access the VioStor NVR |
|
Auto
Logoff |
Automatic user logoff
from idling on configuration pages |
|
Log
System |
System event logs,
system connection logs, online users |
|
Digital
Watermarking |
Can be used to
authenticate videos and snapshots |
|
|
|
|
Disk
Management |
|
RAID |
RAID 0, RAID 1, RAID 5
, RAID 5+ Hot spare , RAID 6 , RAID 6+ Hot spare , RAID 10 , RAID 10+ Hot
spare |
|
Single, JBOD/
Linear |
|
RAID
Features |
Online RAID Capacity
Expansion, Online RAID Level Migration |
|
HDD
Utility |
HDD S.M.A.R.T., bad
blocks scan |
|
|
|
|
Reliability |
|
Operation
System |
Linux-embedded system,
free from PC crash and virus attack |
|
Intelligent Automatic
System Startup When Power Recovery |
Yes |
|
USB UPS
device |
APC/ CyberPower/ Epson/
MGE/ YEC |
|
|
|
|
Network
Service |
|
Protocol |
Support HTTP, HTTPS,
TCP/IP, DHCP, Static IP, DNS, DDNS, UPnP, FTP, NTP, and
SMTP |
|
Built-in DHCP
Server |
Yes |
|

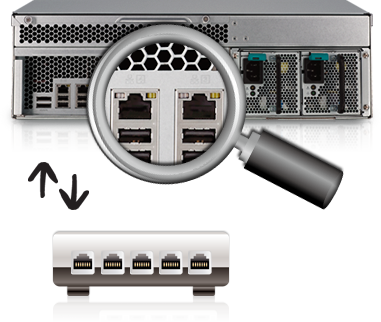

Multiple Gigabit
LAN |
Failover,
load-balancing, multi-IP settings |
|
File
Services |
Web, FTP,
SMB/CIFS |
|
|
|
|
Language
Support |
|
Language |
Czech/ Danish/ Dutch/
English/ French/ Finnish/ German/ Hungarian/ Italian/ Japanese/ Korean/
Norwegian/ Polish/ Portuguese/ Russian/ Spanish/ Swedish/ Simplified
Chinese/ Traditional Chinese/ Turkish/ Greek/ Romanian/
Thai |
|
|
|
|
Client PC
Requirement (Suggested system requirement for better video
performance) |
|
CPU |
M-JPEG format (up to 64
channels ): |
|
Quad core CPU 2.33GHz
or above |
|
|
|
MPEG-4/ H.264/ MxPEG
format (up to 64 channels ): |
|
Core i7 CPU 2.8GHz or
above |
|
|
|
* * For higher
surveillance performance, please select more advanced PC
models. |
|
Memory |
4 GB or
above |
|
Operation
System |
Microsoft Windows 7/ 8
or Mac OS X 10.7.x, 10.8.x, 10.9.x, 10.10.x |
|
Web
Browser |
Microsoft Internet
Explorer 10/11 (Windows PC, desktop mode, 32-bit) |
|
Google Chrome
38.0.2125.104 m (Windows PC) |
|
Mozilla Firefox 33.0
(Windows PC) |
|
Network
Interface |
10/100/1000
Mbps |
|
Display
Resolution |
1280 x 800 pixels or
higher for better user experience |
|
Client |
QVR Client for
Windows |
|
QVR Client for
Mac |
|
|
|
|
Switch
Requirement |
|
Switch |
A gigabit switch is
highly recommended |
|
|
|
|
Utility |
|
QNAP
QFinder |
The client application
to discovery and quick setup of the VioStor NVR |
|
QNAP QVR Client For
Windows |
The client application
used to remotely access QNAP NVR servers for performing video monitoring
and playback functions on client PC. |
|
*Watermark proof
(Installed with QVR Client): Check if the exported videos and snapshots
were modified |
|
QNAP QVR Client For
Mac |
The client application
used to remotely access QNAP NVR servers for performing video monitoring
and playback functions on Mac. |
|
Please note that
multi-server monitoring and fisheye dewarping functions and QSCM Lite App
are not supported |
|
QNAP
Codec |
The video codec to play
the recording files on Windows Media Player (Windows PC, desktop mode,
32-bit). |
