All stock codes associated to this product

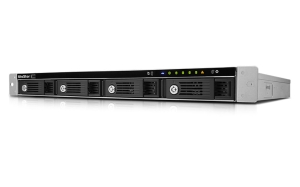

VS4108URPPRO+, VS-4108U-RP PRO+, VS4108URPPRO, VS-4108U-RP-PRO
Features
Powered by the Intel ® dual-core processor and 4GB of memory, the VS-4108U-RP
Pro+ delivers high performance to ensure stable recordings and smooth playbacks
of multiple megapixel cameras. It is designed for the SMB segment with the
features of robust performance, solid reliability and high-definition local
display. Moreover, with built-in GPIO terminal block, VS-4108U-RP Pro+ supports
alarm system linkage. GPIO interface accepts external connection linking to
alarm equipment and is generally applied to various surveillance devices.
-
250 Mbps for recording and
playback from multiple megapixel cameras
-
HDMI output delivers up to 200fps
Full HD local display
-
Simultaneously handles inputs from
up to 8 megapixel cameras
-
Large capacity to ensure
continuous high-resolution video recording
-
Install free QSCM Lite from App
Center to enjoy advanced CMS features
Ultra high performance
.png)
Powered by the Intel® dual-core processor and 4GB of DDR3 memory, the
VS-4108U-RP Pro+ is capable of recording videos from up to 8 IP cameras,
delivering exceptional performance with up to 250 Mbps throughput to ensure
stable recording of multiple megapixel IP cameras.
Turn your NVR into a CMS server
QSCM Lite is a free app provided by QVR that allows you to easily deploy up
to 16 QNAP NVRs and 256 cameras and conduct central monitoring, playback, and
management. With no extra server hardware required, QSCM Lite can easily turn
the VS-4108U-RP Pro+ into a CMS server. The powerful and pioneering QSCM Lite
can be freely downloaded from the integrated NVR App Center.
Anytime anywhere surveillance with a mobile app
Vmobile is an official mobile app that enables you to monitor QVR anytime,
anywhere. Using iOS and Android devices, Vmobile provides camera live-view, PTZ
control, instant event notifications, video snapshot, video playback, and
searching for videos by date and time. Another mobile app, Vcam, allows you to
turn your mobile device into a network camera and to directly save recordings to
your VioStor NVR for portable surveillance options.
PC-less network surveillance by full HD local display via HDMI
connector
Even without a PC, the VS-4108U-RP Pro+ can be configured and perform
monitoring tasks with the local display technology by connecting a USB mouse,
USB keyboard and HDMI monitor to deliver lag-free live video monitoring in Full
HD (1920x1080) resolution. QNAP local display technology provides a
straightforward way to reduce the total costs in your business environment.

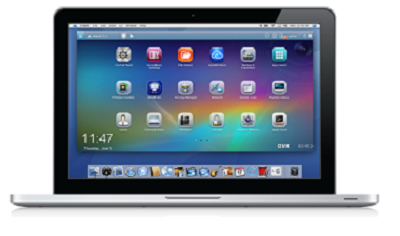

Intuitive, zero learning |
Unlike traditional NVR software that can be hard to use, QVR 5.0 is free from
complicated options and terminology, offering an innovative desktop design to
compliment smooth working efficiency. The multi-window design allows concurrent
multi-tasking, and enables administrators to easily switch between tasks to
increase their productivity.
Multiple IP camera management comes easy
You can directly configure IP camera recording schedules when needed without
leaving the Live-view page, maintain a seamless monitoring so you wont miss any
suspicious events. You can also visualize IP camera deployment with the E-map
function. Just upload the pictures of the monitored locations, drag and drop the
IP camera icons to the right place on the E-map, and you can easily monitor your
surveillance deployment at a glance.
.png)
Cruise for wider areas, zoom in for greater detail
With QVR system, users can easily manage & monitor multiple IP cameras in
a real-time basis using web browsers, and attain the first-hand status of
monitored corners. You can directly adjust the PTZ (Pan/Tilt/Zoom) functions of
supported cameras, flexibly monitoring every desired corner and detail.
Auto-cruising is also supported to allow you to define preset positions for PTZ
cameras to automatically adjust their monitoring angles to preset positions by
the time interval.
.png)
Find out the critical recordings without the hassle
How to find suspicious alarm recordings from huge amount of recordings can be
a challenge. QVR 5.0 provides an intuitive playback interface to you to easily
distinguish between regular and alarm recordings in the timeline bar. For
greater efficiency, you can also enable Intelligent Video Analytics (IVA) to
quickly search videos corresponding to particular modes (includes motion
detection, foreign/ missing object, out of focus, and camera occlusion) to
screen for critical recordings.
Optimize your video watching experience with video
transcoding
The transcoding capabilities of the VS-4108U-RP Pro+ allows users a practical
solution for watching videos stored in centralized locations via the Internet
when they have low-bandwidth connections. This feature adapts to bandwidth
limits and/ or devices that lack the hardware or codecs to play video files by
converting a video file to a lower resolution before transferring it across the
Internet. The original high definition video is still retained without any
changes being made to it, balancing the whole surveillance system for local
recordings and remote playback.
Flexible recording functions
.png)
QVR 5.0 provides flexible options to set up IP camera recording, including
manual recording and scheduled recording. What can be even more convenient, you
can set up the system to only record when motion is detected or other events
occur. The smart recording function can also automatically switch the recording
detail to a higher resolution when alarms are triggered. This greatly saves the
cost spent on hard drives.
Economical expansion options
By installing the Storage Expansion app on a QNAP Turbo NAS, you can connect
the VioStor NVR with the Turbo NAS via network to flexibly enlarge the total
storage capacity of the VioStor NVR. If the expanded storage is not enough, QNAP
REXP expansion enclosures can be used to expand the storage space on the
connected Turbo NAS to support hundreds-of-terabytes raw capacity.
Availability:
The storage expansion solution is available for VioStor NVR Pro(+) series with
firmware v4.1.1 or newer and the Turbo NAS TS-x51, TS-x53, TS-x53U, TS-x63,
TS-x70U, TVS-x71, TVS-x71U, TVS-ECx80, TVS-ECx80U series with QTS operating
system v4.1.2.
.png)
High stability, Built to last
.png)
The VS-4108U-RP Pro+ serves as a business-ready system, providing 24/7
operation and services. The dual OS embedded on the DOM architecture in the
VS-4108U-RP Pro+ ensures that the system boots up and operates stably. The
expertly-designed smart fan delivers great system heat dissipation with minimum
vibration, and is easily replaceable without interrupting system operations. The
VS-4108U-RP Pro+ also features a redundant power supply to ensure maximum system
uptime.

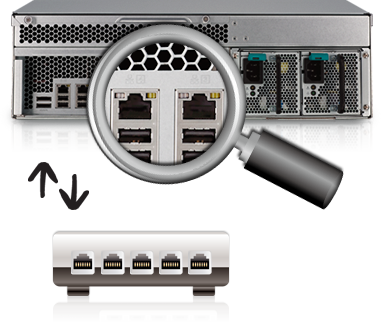

High efficiency with multiple LAN support
The VS-4108U-RP Pro+ supports multiple port-trunking modes, enabling IT
administrators to set up link aggregation to increase total data transmission
capability. Failover is also supported to ensure continuous system operations.
The supported port-trunking modes include: Balance-rr (Round-Robin), Active
Backup, Balance XOR, Broadcast, IEEE 802.3ad, Balance-tlb (Adaptive Transmit
Load Balancing) and Balance-alb (Adaptive Load Balancing).
High Reliability
The VS-4108U-RP Pro+ supports comprehensive RAID configurations and
hot-swapping to allow replacing hard drives without interrupting system
operations. QNAPs advanced RAID recovery technology also assists if any healthy
drives are accidentally removed from a degraded RAID volume. The system can be
recovered to degraded mode by reinserting the wrongly removed hard drives so the
data can still be accessible. The Global Hot Spare function also allows a drive
to automatically replace a failed drive in a RAID volume, preventing data from
being lost.
Specifications
HARDWARE
|
Processor |
Dual-core Intel
processor |
|
Memory |
4GB
RAM |
|
HDD
Capacity |
4x 3.5-inch SATA 6Gb/s,
SATA 3Gb/s hard drive |
|
NOTE: |
|
1. The standard system
is shipped without HDD. |
|
2. For
the HDD compatibility list, please visit
: here |
|
HDD
Tray |
4 x hot-swappable and
lockable tray |
|
LAN
Port |
2 x Gigabit RJ-45
Ethernet port |
|
LED
Indicators |
USB, Status, HDD1-4,
LAN |
|
USB |
2 x USB 3.0 port (Back:
2) |
|
3 x USB 2.0 port
(Front: 1; Back: 2) |
|
Support USB mouse, USB
keyboard, USB sound card, and USB UPS etc. |
|
Buttons |
Power button,
One-touch-auto-video-backup button, Reset button |
|
Alarm
Buzzer |
System
warning |
|
Audio |
Audio In/Out for local
display |
|
Series
Interface |
RS-232 interface
*1(reserved) , RS-485*1 interface (reserved) |
|
Alarm
In |
Alarm In *
8 |
|
Alarm
Out |
Alarm Out *
2 |
|
Video
Output |
1x
HDMI |
|
Suggested video output
resolution: 1920 x 1080 (Full HD) |
|
Form
Factor |
1U
rackmount |
|
Dimensions |
44(H) x 439(W) x 499(D)
mm |
|
1.73(H) x 16.97(W) x
19.65(D) inch |
|
Weight |
Net weight: 11.54 kg/
25.44 lb |
|
Gross weight: 13.5 kg/
29.76 lb |
|
Power
Consumption |
80W (with 4 x 2TB HDD
installed) |
|
Operation
Environment |
Temperature 0~40C/
32~104F |
|
Humidity 5~95% RH
non-condensing, wet bulb: 27C. |
|
Power
Supply |
Input: 100-240V AC,
50/60Hz, Output: 250W |
|
Fan |
3 x cooling fan (4 cm,
12V DC; internal ) |
|
Certification |
CE, FCC, VCCI,
BSMI |
SOFTWARE
|
Recording
Performance |
|
Max. number of HDD
supported |
4 |
|
Number of channels
Supported |
Up to
8 |
|
* Max. 16CH for camera
license expansion |
|
Recording
Performance |
Up to 30 fps at 1080P,
720P, VGA for each channel |
|
* Real performance may
vary by environment |
|
Recording
Throughput |
250
Mbps |
|
* Real performance may
vary by environment |
|
|
|
|
QVR
Desktop |
|
Multi-task
Support |
Multiple tasks run on
QVR desktop |
|
Default
Applications |
Control Panel (for
system configuration), Surveillance Settings, File Station, myQNAPcloud,
Backup & Expansion, App Center |
|
|
|
|
Central Management
System (QSCM Lite App) |
|
QSCM
Lite |
Download
and install for free from the QVR App Center to turn your NVR into
CMS server |
|
Central
Management |
Supports up to 256
channels and 16 servers |
|
Dashboard |
An interface that shows
the current status and historical trends of key
information |
|
Apply-to-All
Configuration |
Some server settings
can be synchronized by grouping identical NVR models, saving configuration
time |
|
Some recording settings
can be synchronized by grouping identical camera models, saving
configuration time |
|
Event
Management |
Centrally receive
events from multiple NVRs |
|
View
Layout |
Centrally configure the
view, adding the cameras from multiple NVRs |
|
Multi-layer
E-map |
Centrally setup
unlimited-layer E-maps for multiple NVRs |
|
Easily find out the
event location |
|
Easily see the ongoing
event status |
|
Manage multiple e-maps
by hyperlink |
|
User
Management |
QSCM Lite users can be
created and assigned to different user groups. |
|
Each user group can
have different permissions. |
|
Quad-monitor
Mode |
Primary monitor: Select
to show the live view, E-map, playback, and configuration
page |
|
Sub monitor: Select to
show the live view and E-map |
|
View
Content |
Flexibly view content
from mixed camera videos and E-maps |
|
Bookmark |
Place a vertical thin
bar and text details on video footage for easier event
investigation |
|
Multi Web Browsers
Support |
Supports Google Chrome,
Internet Explorer, Mozilla Firefox on Windows |
|
|
|
|
Full HD
Local Display |
|
Max. Resolution of HW
Decode Supported per Ch. |
Resolution up to Full
HD (1920x1080) per channel (H.264) |
|
Local Display
Performance |
Full HD 1080P
200FPS |
|
Display
Mode |
Local monitoring:
Multi-channel, sequential and full screen display
modes |
|
Local playback:
Multi-channel and full screen display modes |
|
Max. Channel Supported
per Page |
Local monitoring: Up to
36 channels per page |
|
Local playback: Up to 4
channels per page |
|
On-screen Event
Alert |
Yes |
|
Local Monitoring
Control |
Dewarping function for
fisheye cameras and Panomorph lens Manual recording, (two-way) audio*, PTZ
control (including optical zoom, focus control and preset position
control), digital zoom |
|
Joystick
Support |
Joystick support for
PTZ and preset position control |
|
Search
Mode |
By date & time,
timeline, and event |
|
Local Playback
Control |
Dewarping function for
fisheye cameras and Panomorph lens Play, pause, rewind, fast forward, slow
motion, frame by frame search, audio, digital zoom |
|
Recordings
Export |
Export multiple
recordings to external USB storage as standard AVI files, optimized QNAP
AVI files, QNAP encrypted AVI files |
|
Local
Configuration |
Quick configuration Can
modify administration password, network settings, time settings, disk
volume configuration, camera settings |
|
|
|
|
Remote Monitoring
(Windows) |
|
Multi-server
Monitoring |
QVR Client: Supports
max. 128 channels |
|
Display
Mode |
Multi-channel,
sequential and full screen display modes |
|
dual display
mode |
|
Max. Channel Supported
per Page |
Up to 64 channels per
page |
|
E-map |
Setup Multi-layer
E-maps for multiple NVRs |
|
Options to see the
ongoing event status on QVR monitoring page (for dual display mode) or new
window |
|
On-screen Event
Alert |
Yes |
|
Interactive Control
Buttons |
Manual recording, video
snapshot, (two-way) audio*, dewarping function for fisheye
cameras andPanomorph lens, PTZ mode (including click & go, PTZ
control, and auto cruising by preset position), preset position
control, digital zoom, instant playback, same-screen IP camera
configurations, camera information |
|
Options |
Video window highlight
when an event is triggered |
|
Joystick
Support |
Joystick support for
PTZ and preset position control |
|
|
|
|
Remote Playback
(Windows) |
|
Multi-channel
Playback |
Multi-channel,
sequential display modes |
|
Max. Channel Supported
per Page |
Up to 16 channels per
page |
|
Search
Mode |
By date
& time, timeline, event, and intelligent video analytics
(IVA) |
|
On-screen Event
Alert |
Yes |
|
Playback and Speed
Control with Shuttle Bar |
Play, pause, rewind,
fast forward, slow motion, frame by frame search |
|
Interactive Control
Buttons |
Audio, low
bandwidth mode, video snapshot, IVA settings, dewarping function
for fisheye camerasand Panomorph lens, PTZ mode (including click
& go, PTZ control, and auto cruising by preset position), digital
zoom, averagely time-divided playback, camera
information |
|
Intelligent
Video analytics (IVA) |
Motion detection,
missing object, foreign object, out of focus, and camera
occlusion |
|
Control |
Preview videos with
thumbnails |
|
Drag an area on the
video window to zoom in to see details |
|
Recordings
Export |
Export multiple
recordings to a client PC or NVR as standard AVI/ MP4 file, different
exporting resolutions supported |
|
Options |
Add
a digital watermark to exported
recordings |
|
|
|
|
QVR Client for
Mac |
|
QVR Client for
Mac |
Free
download from the QNAP Download Center and Mac App
Store |
|
Display
Mode |
Monitoring:
Multi-channel, sequential and full screen display
modes |
|
Playback:
Single-channel and full screen display modes |
|
Max. Channel Supported
per Page |
Local monitoring: Up to
16 channels per page |
|
Local playback: Single
channel per page |
|
On-screen Event
Alert |
Yes |
|
Monitoring
Control |
Audio, PTZ control
(including optical zoom, focus control and preset position control),
digital zoom |
|
Search
Mode |
By date & time,
timeline, and event |
|
Playback
Control |
Play, pause, rewind,
different speed control, audio, digital zoom |
|
Recordings
Export |
Export multiple
recordings to Mac |
|
Configuration |
Open an additional
browser window for configuration |
|
|
|
|
Mobile
Surveillance |
|
Vmobile |
Free download from the
App Center (iOS) and Google Play (Android) |
|
NVR
Search |
Yes, NVRs on the LAN
can be easily searched |
|
Display
Mode |
Mobile Monitoring:
Multi-channel, sequential display mode |
|
Mobile Playback:
Single-channel display mode |
|
Mobile Monitoring
Control |
PTZ control, digital
zoom, pause, snapshot, stream selection, image share (ex. Mail,
Facebook) |
|
Event
Notification |
Yes, event
notifications will be sent from Multiple NVRs |
|
Mobile Playback
Control |
Digital zoom, snapshot
Play, pause, fast forward, go to previous file, go to next
file |
|
Audio |
Yes |
|
|
|
|
Recording |
|
Supported
Models |
IP
cameras |
|
Generic
cameras |
|
Vcam App
to turn your mobile phone into an IP
camera |
|
|
|
Video
Compression |
H.264/ MPEG-4/ M-JPEG/
MxPEG (depending on the camera models) |
|
Recording
Mode |
Continuous/ scheduled/
manual recording |
|
Alarm recording by
multiple events |
|
Pre-alarm (up to 300
sec) and post-alarm (up to 300 sec) recording |
|
Round-the-clock
recording and smart recording when user-defined
stream is supported on the camera model |
|
Edge
recording |
|
Auto
snapshot |
|
Megapixel
Recording |
Supports megapixel
cameras (up to 40-megapixel) |
|
File
Format |
AVI (QNAP codec is
required for playback) |
|
Recording
Enhancement |
Real-time digital
watermarking |
|
Download &
Export |
Download recordings via
the QVR File Station, FTP, SMB/CIFS Recordings export on local playback
and remote playback (Windows and Mac) |
|
Advanced
Event Management |
|
Events |
Motion detection, alarm
input, connection failure, recording failure, and user-defined
event |
|
Actions |
Video recording, email
alert, SMS alert, buzzer, PTZ camera control, alarm output, and
user-defined action |
|
|
|
|
Backup &
Expansion |
|
External
Backup |
Copy recordings from
the local disk volume to an external storage device |
|
One Touch Video
Backup |
Press the One Touch
Video Backup button to backup recordings from external storage to USB
storage |
|
Remote
Replication |
Schedule video data
backup to a NAS on the local network |
|
Storage
Expansion |
Connect the VioStor NVR
to a Turbo NAS via network to enlarge the total storage capacity of the
VioStor NVR |
|
Cloud
Backup |
Easily upload the data
from the NVR to Amazon S3 or download the data from Amazon S3 to the
NVR |
|
|
|
|
Easy Configuration
and Management |
|
Qstart |
Auto
configuration |
|
Simplify system
initialization with just a single click |
|
|
|
Network switch
control |
|
Easily setup camera
IPs, manage PoE status and monitor traffic flow |
|
|
|
QVR
Desktop |
Multi-window,
multi-tasking |
|
Intelligent
desktop |
|
Main menu, smart
dashboard, drag-and-drop icons |
|
|
|
File
Station |
Access files using web
browsers, anytime and anywhere |
|
Securely share files by
URL |
|
Upload large
files |
|
|
|
myQNAPcloud |
Unique host name for
VioStor NVR |
|
Automatic port
forwarding on a UPnP router |
|
Cloud
Backup |
|
|
|
App
Center |
Download numerous free
on-demand apps |
|
License
Upgrade |
Flexibly expand the
number of channels to meet your demands by purchasing additional
licenses |
|
https://license.qnap.com/ModelBrowse.html?cid=93 |
|
|
|
|
Security
Management |
|
User Privilege
Management |
Different user types
and rights can be assigned to different QVR users |
|
Network Access
Protection |
Specify the connections
to be allowed and denied to access the VioStor NVR |
|
Auto
Logoff |
Automatic user logoff
from idling on configuration pages |
|
Log
System |
System event logs,
system connection logs, online users |
|
Digital
Watermarking |
Can be used to
authenticate videos and snapshots |
|
|
|
|
Disk
Management |
|
RAID |
RAID 0, RAID 1, RAID 5
, RAID 5+ Hot spare , RAID 6 |
|
Single, JBOD/
Linear |
|
RAID
Features |
Online RAID Capacity
Expansion, Online RAID Level Migration |
|
HDD
Utility |
HDD S.M.A.R.T., bad
blocks scan |
|
|
|
|
Reliability |
|
Operation
System |
Linux-embedded system,
free from PC crash and virus attack |
|
Intelligent Automatic
System Startup When Power Recovery |
Yes |
|
USB UPS
device |
APC/ CyberPower/ Epson/
MGE/ YEC |
|
|
|
|
Network
Service |
|
Protocol |
Support HTTP, HTTPS,
TCP/IP, DHCP, Static IP, DNS, DDNS, UPnP, FTP, NTP, and
SMTP |
|
Built-in DHCP
Server |
Yes |
|
Multiple Gigabit
LAN |
Failover,
load-balancing, multi-IP settings |
|
File
Services |
Web, FTP,
SMB/CIFS |
|
Language
Support |
|
Language |
Czech/ Danish/ Dutch/
English/ French/ Finnish/ German/ Hungarian/ Italian/ Japanese/ Korean/
Norwegian/ Polish/ Portuguese/ Russian/ Spanish/ Swedish/ Simplified
Chinese/ Traditional Chinese/ Turkish/ Greek/ Romanian/
Thai |
|
|
|
|
Client PC
Requirement (Suggested system requirement for better video
performance) |
|
CPU |
M-JPEG format (up to 16
channels ): |
|
Dual core CPU 2.4GHz or
above |
|
|
|
MPEG-4/ H.264/ MxPEG
format (up to 16 channels ): |
|
Quad core CPU 2.33GHz
or above |
|
|
|
* * For higher
surveillance performance, please select more advanced PC
models. |
|
Memory |
4 GB or
above |
|
Operation
System |
Microsoft Windows 7/ 8
or Mac OS X 10.7.x, 10.8.x, 10.9.x, 10.10.x |
|
Web
Browser |
Microsoft Internet
Explorer 10/11 (Windows PC, desktop mode, 32-bit) |
|
Google Chrome
38.0.2125.104 m (Windows PC) |
|
Mozilla Firefox 33.0
(Windows PC) |
|
Network
Interface |
10/100/1000
Mbps |
|
Display
Resolution |
1280 x 800 pixels or
higher for better user experience |
|
Client |
QVR Client for
Windows |
|
QVR Client for
Mac |
|
|
|
|
Switch
Requirement |
|
Switch |
A gigabit switch is
highly recommended |
|
|
|
|
Utility |
|
QNAP
QFinder |
The client application
to discovery and quick setup of the VioStor NVR |
|
QNAP QVR Client For
Windows |
The client application
used to remotely access QNAP NVR servers for performing video monitoring
and playback functions on client PC. |
|
*Watermark proof
(Installed with QVR Client): Check if the exported videos and snapshots
were modified |
|
QNAP QVR Client For
Mac |
The client application
used to remotely access QNAP NVR servers for performing video monitoring
and playback functions on Mac. |
|
Please note that
multi-server monitoring and fisheye dewarping functions and QSCM Lite App
are not supported |
|
QNAP
Codec |
The video codec to play
the recording files on Windows Media Player (Windows PC, desktop mode,
32-bit). |
*Two-way audio is only supported on one browser or
local display at the same time.
Designs and specifications are subject to change without
notice.
PACKAGE CONTENTS
VS-4108U-RP
Pro+
CD-ROM
Ethernet
cable x 2
Power
cord
Screw
pack
Hard
Disk Lock
Quick Installation Guide
Terminal
Block x 6
1U
Rail Kit
Screw
x 8
Handle
x 2
Mount
Kit x 2
