IMG 1 of 1
No Longer Available

Part Number:
409006
(?) Brand:
Manuf No:
KVR24R17S8/8
Shipping Weight:
0.2 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
KVR24R17S8/8, 740617257458, 740617257465

Description

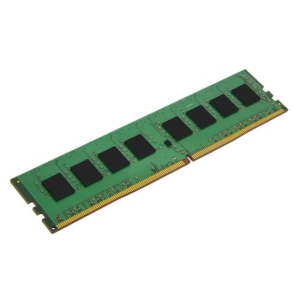

ValueRAM's KVR24R17S8/8 is a 1G x 72-bit (8GB) DDR4-2400 CL17 SDRAM (Synchronous DRAM) registered w/ parity, 1Rx8, ECC, memory module, based on nine 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Features

  • Power Supply: VDD=1.2V (1.14V to 1.26V)
  • VDDQ = 1.2V (1.14V to 1.26V)
  • VPP - 2.5V (2.375V to 2.75V)
  • VDDSPD=2.25V to 2.75V
  • Functionality and operations comply with the DDR4 SDRAM datasheet
  • 16 internal banks
  • Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available
  • Data transfer rates: PC4-2400, PC4-2133, PC4-1866, PC4-1600
  • Bi-Directional Differential Data Strobe
  • 8 bit pre-fetch
  • Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
  • Supports ECC error correction and detection
  • On-Die Termination (ODT)
  • Temperature sensor with integrated SPD
  • This product is in compliance with the RoHS directive.
  • Per DRAM Addressability is supported
  • Internal Vref DQ level generation is available
  • Write CRC is supported at all speed grades
  • CA parity (Command/Address Parity) mode is supported

Specifications

CL(IDD)

:

17 cycles

Row Cycle Time (tRCmin)

:

46.16ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin)

:

350ns(min.)

Row Active Time (tRASmin)

:

32.00ns(min.)

Maximum Operating Power

:

TBD W*

UL Rating

:

94 V - 0

Operating Temperature

:

0o C to +85o C

Storage Temperature

:

-55o C to +100o C

*Power will vary depending on the SDRAM used.
