Overview

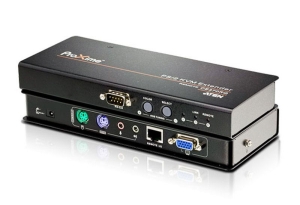

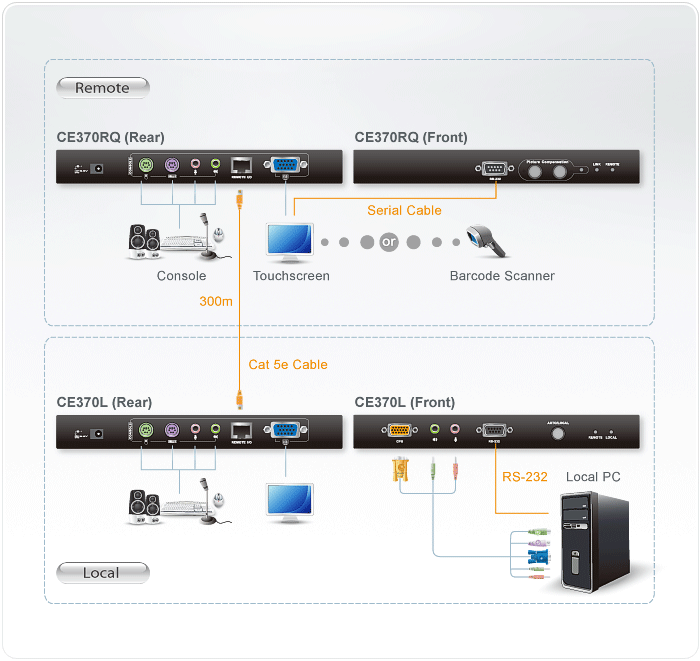

The CE370 a PS/2 based KVM Extender with automatic signal compensation and
RS-232 serial functionality allows access to a computer system from a remote
PS/2 console (PS/2 keyboard, monitor, and PS/2 mouse). Because it allows access
to a computer system from a remote console, the CE370 is perfect for use in any
type of installation where you need to place the console where it is
conveniently accessible, but you want the system equipment to reside in a safe
location - away from the dust and dirt of the factory floor, or the harsh
environmental influence of a construction site, for example. This allows users
to deploy system equipment over large distances.
The CE370 supports RGB delay tuner to manually synchronize the RGB signals.
This allows users to deploy system equipment over large distances. The CE370's
line synchronizing function corrects color phase and timing errors that occur
over long distance transmissions. It also enables you to manually tune the R/G/B
signal settings.
Compatible Accessories
Converters
KVM Cables
- 2L-5205UP
- 2L-5206UP
- 2L-5203UP
- 2L-5202UP
- 2L-5305UP
Cat 5 Cables
Compatible Products
Desktop KVM Switches
- CS1734B
- CS1734A
- CS1732B
- CS1734A
LCD KVM Switches
Rack KVM Switches
- CS9138
- CS9134
- CS1758
- CS1754
- CS1716A
Package Contents
| 1x CE370L
PS/2 KVM Extender (Local Unit) |
| 1x CE370RQ
PS/2 KVM Extender (Remote Unit) |
| 1x Custom
PS/2 KVM Cable Set (1.8 m) |
| 2x Power
Adapters |
| 1x Mounting
Kit |
| 1x User
Instructions |
Patent No.
US 7585176 , TW I339467 , CN ZL 200710181531.5 , US 8106898
Features
| Local and
Remote Units connect at distances up to 300 m using Cat 5e cable |
| Deskew
Function - automatically synchronizes the time delay of RGB signals to
compensate for distance |
| On Screen
Display - conveniently adjust video quality with the intuitive OSD menu
system |
| Manually tune
the R/G/B settings, store and retrieve |
| Adjustable gain control - automatically and manually
adjust signal strength to compensate for distance |
| Dual console operation - control your system from both
the local and remote keyboard, monitor, and mouse consoles |
| Built-in ASIC
for greater reliability and compatibility |
| Auto Signal
Compensation (ASC) and storage of settings |
| RS-232 serial ports - connect to a serial terminal, or
serial devices such as touchscreens and barcode scanners (Baud Rate 115200
bps) |
| Audio Enabled - supports stereo speakers and
microphone |
| Pushbutton operating mode selection (Local Unit only) -
select between Local and Auto operating modes, with the press of a single
button |
| Built-in
8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge
protection |
| Superior
video quality - 1920 x 1200@60Hz(150 m), 1280 x 1024@60Hz(300 m) |
| Superior Audio - no loss in audio quality at 300 m |
| Supports Wide
Screen formats * |
| Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x
1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC;
DDC2; DDC2B |
| Hot
pluggable |
| Rack
mountable |
| * Easy to
install - no software required - connecting cables to the devices is all it
takes |
Specifications
|
Function |
CE370L |
CE370RQ |
|
|
|
|
Connectors |
|
|
|
Console
Ports |
1 x 6-pin Mini-DIN
Female (Purple) |
1 x 6-pin Mini-DIN
Female (Purple) |
|
1 x HDB-15 Female
(Blue) |
1 x HDB-15 Female
(Blue) |
|
1 x 6-pin Mini-DIN
Female (Green) |
1 x 6-pin Mini-DIN
Female (Green) |
|
1 x Mini Stereo Jack
Female (Green) |
1 x Mini Stereo Jack
Female (Green) |
|
1 x Mini Stereo Jack
Female (Pink) |
1 x Mini Stereo Jack
Female (Pink) |
|
|
|
|
|
KVM
Ports |
1 x SPHD-17 Female
(Yellow) |
N/A |
|
1 x Mini Stereo Jack
(Green) |
|
1 x Mini Stereo Jack
(Pink) |
|
|
|
|
|
RS-232 |
1 x DB-9 Female
(Black) |
1 x DB-9 Male
(Black) |
|
Unit To
Unit |
1 x RJ-45 Female
(Black) |
1 x RJ-45 Female
(Black) |
|
Power |
1 x DC
Jack |
1 x DC
Jack |
|
|
|
|
Pushbuttons |
|
|
|
Operating Mode
Selection |
1 x
Pushbutton |
N/A |
|
Color |
N/A |
1 x
Pushbutton |
|
Select |
N/A |
1 x
Pushbutton |
|
|
|
|
|
Emulation |
|
|
|
Keyboard /
Mouse |
PS/2 |
PS/2 |
|
|
|
|
|
Video |
1920 x 1200 @ 60Hz (150
m); |
1920 x 1200 @ 60Hz (150
m); |
|
1280 x 1024 @
60Hz |
1280 x 1024 @
60Hz |
|
(300 m); DDC, DDC2,
DDC2B |
(300 m); DDC, DDC2,
DDC2B |
|
|
|
|
|
Power
Consumption |
DC5.3V/3.38W |
DC5.3V/6.43W |
|
|
|
|
Environmental |
|
|
|
Operating
Temperature |
0 -
50C |
0 -
50C |
|
Storage
Temperature |
-20 -
60C |
-20 -
60C |
|
Humidity |
0-80% RH,
Non-condensing |
0-80% RH,
Non-condensing |
|
|
|
|
Physical
Properties |
|
|
|
Housing |
Metal |
Metal |
|
Weight |
0.50 kg ( 1.1 lb
) |
0.50 kg ( 1.1 lb
) |
|
Dimensions (L x W x
H) |
20.20 x 8.64 x 2.50
cm |
20.20 x 8.64 x 2.50
cm |
|
(7.95 x 3.4 x 0.98
in.) |
(7.95 x 3.4 x 0.98
in.) |
