Overview

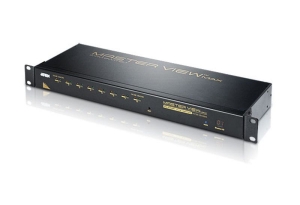

ATEN's high performance KVM switch offers one of the most streamlined
approaches to server-network management. With its advanced engineering and high
density console connectors, a single unit occupies only 1U of rack space and can
control up to 256 computers.
Compatible Accessories
KVM Cables
- 2L-5702P - Length: 1.8m
- 2L-5206UP - Length: 6m
- 2L-5203UP - Lenght: 3m
- 2L-5202UP - Lenght: 1.8m
- 2L-5206P - Lenght: 6m
KVM Modules & Accessories
Daisy Chain Cables
- 2L-1715 - Lenght: 15m
- 2L-1705 - Lenght: 5m
- 2L-1703 - Lenght: 3m
- 2L-1701 - Lenght: 1.8m
- 2L-1700 - Lenght: 0.6m
Compatible Products
Cat 5 KVM Switches
KVM over IP Switches
- KH15Ai
- KH08Ai
- CS1716i
- CS1708i
LCD KVM Switches
- KL1516Ai
- KL1516A
- KL1508Ai
- KL1508A
- CL5816
- CL5808
- CL5716
- CL5708
- CL1016
- CL1008
Matrix KVM Switches
Rack KVM Switches
- CS1716A
- CS1708A
- ACS1216A
- ACS1208A
- KH0116
Package Contents
Patent No.
CN ZL 02122202.9 , TW 183765 , US 7386584 , US 7640289
Features
| One PS/2
console controls 8 computers. |
| Daisy chain
up to 31 additional units - Control up to 256 computers from a single
console. |
| Firmware
upgrades to all the chained KVM switches at the same time via the daisy chain
cable. |
| Buzzer ON/OFF
via hotkey and OSD. |
| Broadcast
Mode: Operations simultaneously performed on all selected computers, software
installation and upgrading, system wide shutdown....etc. |
| Auto-sensing
of station's position on daisy chained installations - no need for manual DIP
switch setting - front panel LED indicates station's position. |
| Computer
selection via hotkeys and OSD. |
| Superior
video quality- up to 2048 x 1536; DDC2B. |
| Rack
mountable in 19" system rack. |
| Multiplatform
support: Windows 2000/XP/Vista, Linux and FreeBSD. |
| For more
information about KVMs which can connect to ACS1208A, see Compatible KVM
Table. |

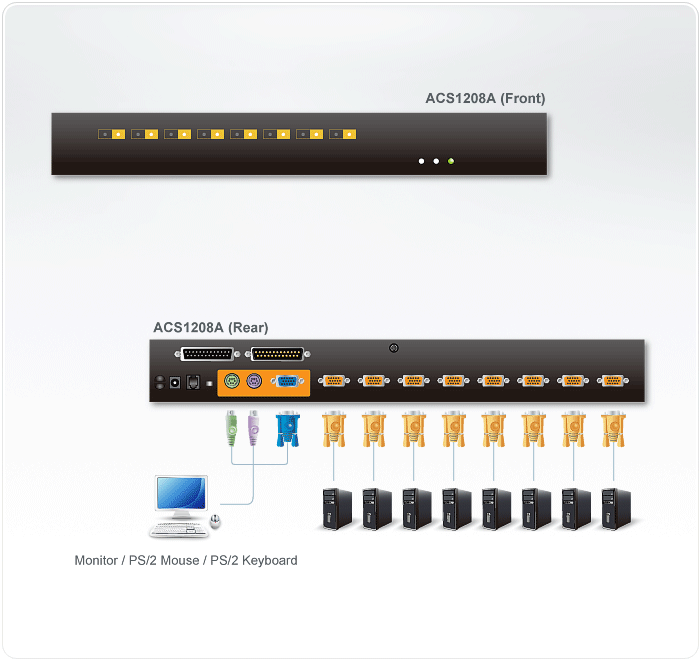

Diagram
Specifications
|
Computer
Connections |
|
Direct |
8 |
|
Maximum |
256 (via
Daisy-chain) |
|
Port
Selection |
OSD,
Hotkey |
|
Connectors |
|
Console
Ports |
1 x 6-pin Mini-DIN
Female (Purple) |
|
1 x HDB-15 Female
(Blue) |
|
1 x Mini Din 6 Female
(Green) |
|
KVM
Ports |
8 x SPHD-15 Female
(Yellow) |
|
Daisy Chain
Ports |
1 x DB-25 Female
(Black) |
|
1 x DB-25 Male
(Black) |
|
Firmware
Upgrade |
1 x RJ-11 Female
(Black) |
|
Power |
1 x DC Jack
(Black) |
|
Switches |
|
Firmware
Upgrade |
1 x
Slide |
|
Reset |
1 x Semi-recessed
Pushbutoon |
|
LEDs |
|
Online |
8
(Orange) |
|
Selected |
8
(Green) |
|
Station
ID |
2 x 7-segement
(Orange) |
|
Power |
1
(Blue) |
|
Emulation |
|
Keyboard /
Mouse |
PS/2 |
|
Video
Resolution |
2048x1536;DDC2B |
|
Scan
Interval |
1-255
Seconds |
|
Power
Consumption |
DC9V,
7.5W |
|
Environmental |
|
Operating
Temperature |
0-50C |
|
Storage
Temperature |
-20-60C |
|
Humidity |
0-80% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
kg ( 0 lb
) |
|
Dimensions (L x W x
H) |
x x
cm |
|
(0 x 0 x 0
in.) |
|
* The specification and
pictures are subject to change without notice. |
|
|
