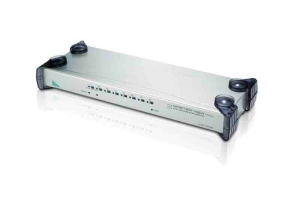

CS228-AT-U | ATEN CS228 Multi-Console 8-Port PS/2 KVM Switch - With On Screen Display (OSD)

Overview

CS228 is a high-efficiency KVM switch which provides the most efficient solution. Its console with 2 built-in PS/2 allows users to control 8 servers either alone or by sharing. The built-in DB-25 of CS228 can reduce cable derangements in component rooms and can enhance signal quality and operation efficiency.

Compatible Accessories

KVM Cables

• 2L-1701P - Length: 1.8m
• 2L-1703P - Length: 3.0m
• 2L-1705P - Length: 5m
• 2L-1701P - Length: 10m

Compatible Products

KVM Extenders

• CE252

Rack KVM Switches

• CS88A
• CS9138
• CS9134
• CS128A

Package Contents

• 1x Multi-console 8-Port PS/2 KVM Switch
• 1x Power Adapter
• 1x Rack Mount Kit
• 1x User Instructions

Features

• 2 PS/2 console control 8 computers.
• Up to four users can operate up to 64 computers (via cascade to CS88A and CS9138*) at the same time.
• Each console has its own access control
• Two-level (Administrator/User) password authorization for enhanced security protection.
• Administrator can access any computer completely independently of the other users.
• Each user has his own access control list
• Computer selection via On Screen Display (OSD)
• Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse.
• OSD automatically adjusts to resolution changes.
• Auto Scan function to monitor computer operation.
• With speaker and microphone support.
• Superior video quality: Up to 1920 x 1440; DDC2B.
• Special design for easy stacking.
• Rack mountable in 19" (1U) system rack.
  * CS88A and CS9138 do not support audio features of audio enabled KVM switches.
• Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD.
• For more information about KVMs which can connect to CS228, see Compatible KVM Table.

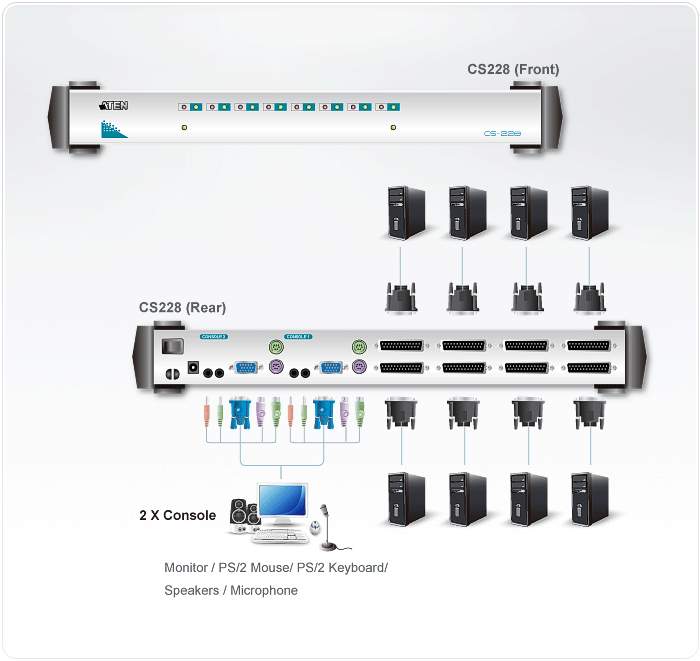

Diagram

Specifications
