CS231C-AT-U | ATEN CS231 2-Port Computer Sharing Device - With On Screen Display (OSD)

Overview

The CS231 is a powerful, micro-processor controlled computer sharing device. It is a multi-user, single-tasking device that enables two users to share the use of a single computer - each from their own consoles (monitor, keyboard, and mouse).The CS231 supports USB consoles and both PS/2 and USB computers.

Compatible Accessories

• 2L-5205U - Length: 5m
• 2L-5203U - Length: 3m
• 2L-5202U - Length: 1.8m
• 2L-5201U - Length: 1.2m
• 2L-5206P - Length: 6m
• 2L-5203P - Length: 3m
• 2L-5202P - Length: 1.8m
• 2L-5201P - Length: 1.2m
• 2L-5702P - Length: 1.8m

Compatible Products

KVM Extenders

• CE100

Package Contents

• 1x Computer Sharing Device
• 1x USB KVM Cable (1.8m)
• 1x Power Adapter
• 1x Firmware Upgrade Cable
• 1x DIP Switch Sticker
• 1x User Instructions

Patent No.

US 6464197 , US 6564275

Features

• Single computer is shared by two USB consoles.
• Supports USB and PS/2 computers.
• Multiplatform Support (Windows, Mac, Unix, Linux).
• Manual or Auto console selection.
• On-Screen-Display informs user when system is in use.
• No Software required.
• Private Mode for a privileged user.
• Screen saver function.
• Supports VGA, SVGA Multisync monitors.
• Firmware Upgradable.
• Multiplatform support: Windows 2000/XP/Vista, Linux, Mac and Unix.

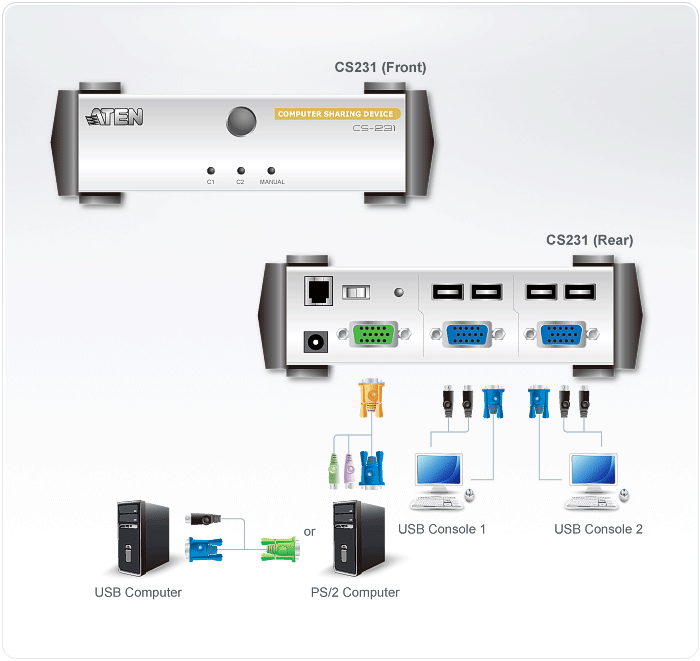

Diagram

Specifications
